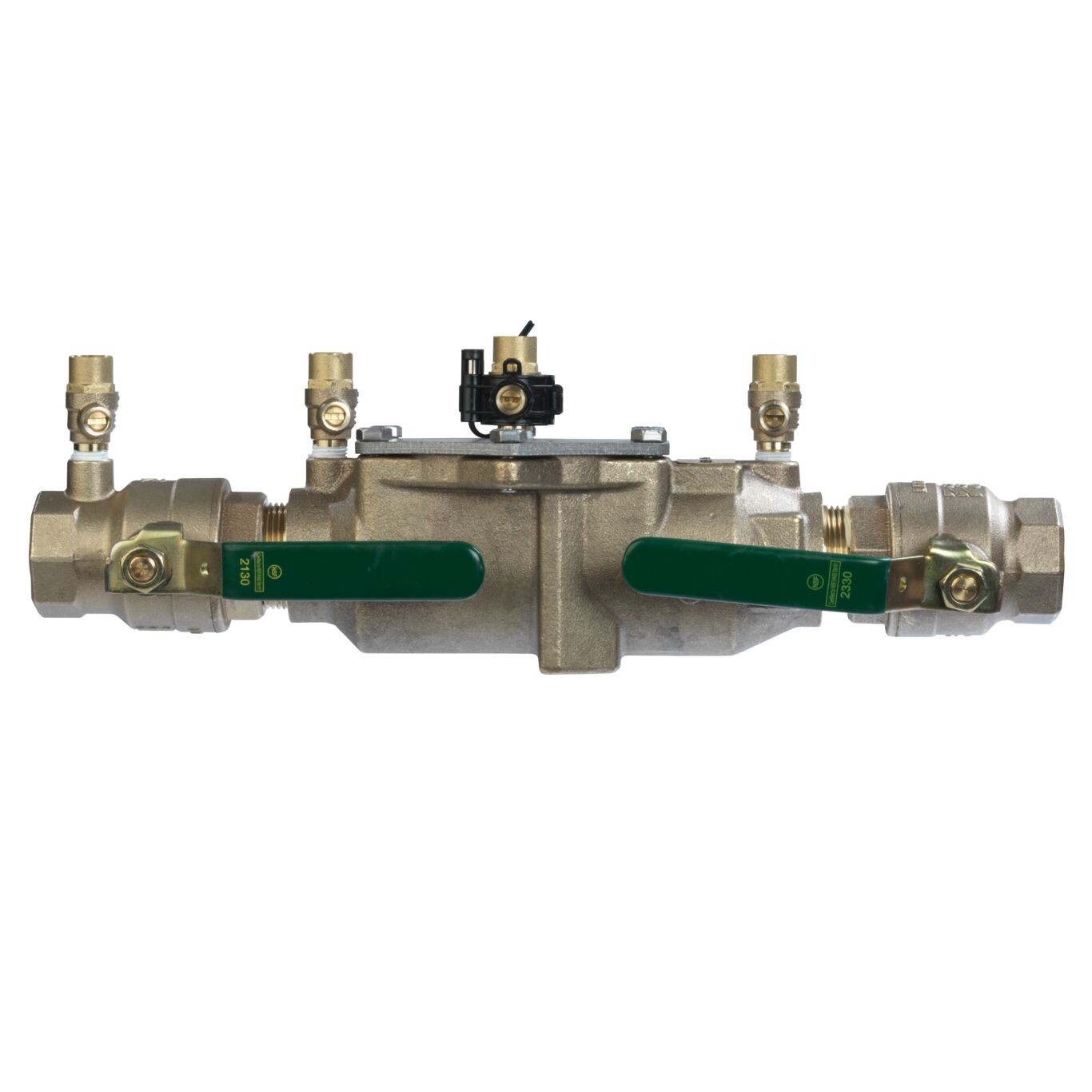

Watts T063233 1 1/4 LF007M2-QT-FZ Backflow Preventer Assembly

Product Description

The Watts T063233 is a backflow preventer assembly that features a compact design suitable for various plumbing applications. This assembly meets ASSE 1015 standards and is made from lead-free copper silicon alloy for safe water systems.

• 1-1/4 inch nominal size with NPT end style
• Designed for pressures up to 175 psi
• Operates within a temperature range of 33 to 180 degrees Fahrenheit

Product Highlights

This inline model protects against backflow in continuous pressure piping applications and at non-health hazard cross-connections. It includes dual check functionality for added safety.

Product Information

Standard Information

• Manufacturer: Watts Regulator Company
• Model: LF007

Technical Specifications

• Backflow Type: Dual Check
• Ball Valve Type: Quarter-Turn Ball Valve
• Body Material: Lead Free Copper Silicon Alloy
• Pressure Rating: 175 psi
• End Style: NPT
• Media: Water
• Temperature Rating: 33 to 180 degrees F
• Series: LF007
