Product Description

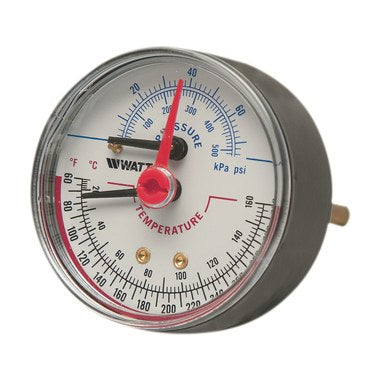

The Watts Regulator LFDPTG3-3-0-2001/2 is a combination gauge for HVAC systems. This product connects with a half-inch NPT and features a center back connection. The gauge has a three-inch dial diameter, making it easy to read during operation. It supports a temperature range from sixty degrees Fahrenheit to three hundred twenty degrees Fahrenheit. The device is designed for commercial, residential, and institutional HVAC applications.
- Connection: 1/2 inch NPT
- Dial Diameter: 3 inches
- Temperature Range: 60 to 320 degrees Fahrenheit
Product Highlights
This gauge is suitable for various heating systems and ensures accurate readings in monitored environments.
Product Information
Standard Information
-
Brand: Watts Regulator
-
Part Number: 0121662
Technical Specifications
-
End Connection: 1/2 inch NPT
-
Connection Location: Center Back
-
Dial Diameter: 3 inches
-
Temperature: 60 to 320 degrees Fahrenheit
-
Accuracy: ASME Type B
-
Application: Commercial, Residential, and Institutional HVAC Applications
-
Length: 3 inches
-
Width: 3 inches
-
Height: 2-13/16 inches
-
Shipping Weight: 3.000 lbs
