Watts Regulator Company F278510 2 174A 150 FS Automatic Reseating

Product Description

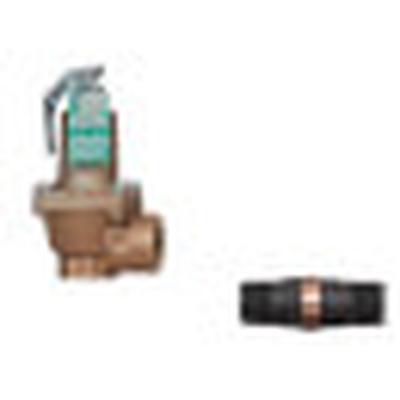

Watts Regulator Company F278510 is an automatic reseating valve from the 174A series. This valve is designed with a two-inch nominal size and a female NPTF end style. Operating under a pressure of one hundred twelve psi, it is suitable for water media. The body is made of bronze with non-metallic trim, and its dimensions are eleven and a half inches in height and six and a half inches in length.

• Requires an activation kit for sensor activation
• Features automatic reseating capability
• Non-mechanical seat to disc alignment

Product Highlights

This valve is ideal for hot water space heating boiler applications, providing protection against excessive pressure.

Product Information

Standard Information

• Manufacturer: Watts Regulator Company
• Type: Automatic Reseating

Technical Specifications

• Body Material: Bronze
• Dimensions: Eleven and a half inches H x six and a half inches L
• Domestic/Import: Domestic
• End Style: Female NPTF
• Media: Water
• Nominal Size: Two inches
• Pressure Rating: One hundred twelve psi
• Series: 174A
• Temperature Rating: Two hundred fifty degrees F
• Trim Material: Non-Metallic
