Watts Regulator Company F121592 1 1/4 LFN241X-5 150 FS

Product Description

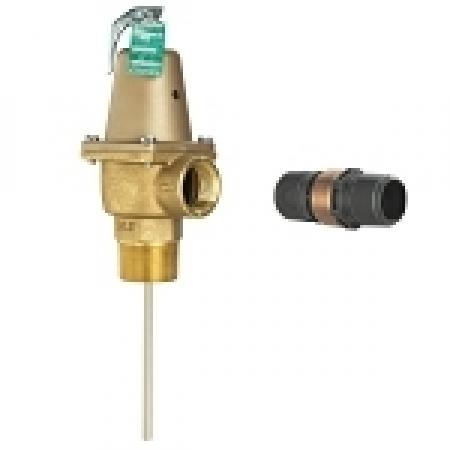

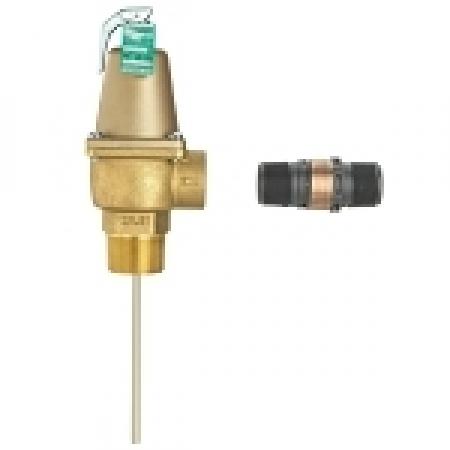

Watts Regulator Company offers the F121592 valve designed for automatic reseating. This valve has a nominal size of one and one-quarter inches and features a Male NPTF x Female NPTF end style. It operates at a pressure of one hundred twelve psi and can withstand temperatures up to two hundred ten degrees Fahrenheit. The unit is suitable for use with water media and has a probe length of five inches.

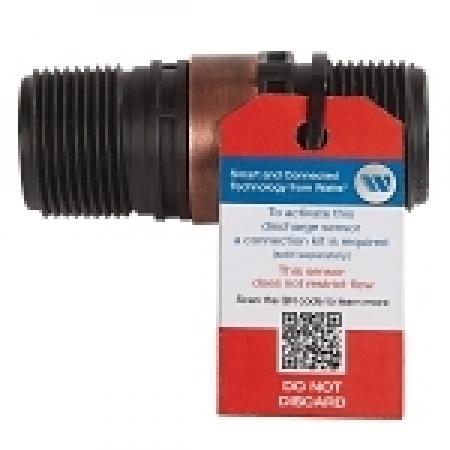

• Requires purchase of activation kit to activate sensor
• Tamper resistant bonnet screws
• Non-mechanical seat to disc alignment

Product Highlights

This valve is ideal for use in commercial applications, specifically for protecting hot water supply tanks and heaters. It meets ASME ratings and complies with CSA, FHA requirements, and ANSI Z21.22 standards.

Product Information

Standard Information

• Manufacturer: Watts Regulator Company
• UPC: 098268557992

Technical Specifications

• Actuator Type: Test Lever
• Body Material: Copper Silicon Alloy
• Dimensions: 7-3/8 in H x 3-1/4 in W
• End Style: Male NPTF x Female NPTF
• Media: Water
• Nominal Size: 1-1/4 in
• Pressure Rating: 112 psi
• Probe Length: 5 in
• Series: LFN240
• Temperature Rating: 210 deg F
• Trim Material: Stainless Steel
• Type: Automatic Reseating
