Watts Regulator Company 0959099 3539R-1004 Power 1/2 x 1/4 in

Product Description

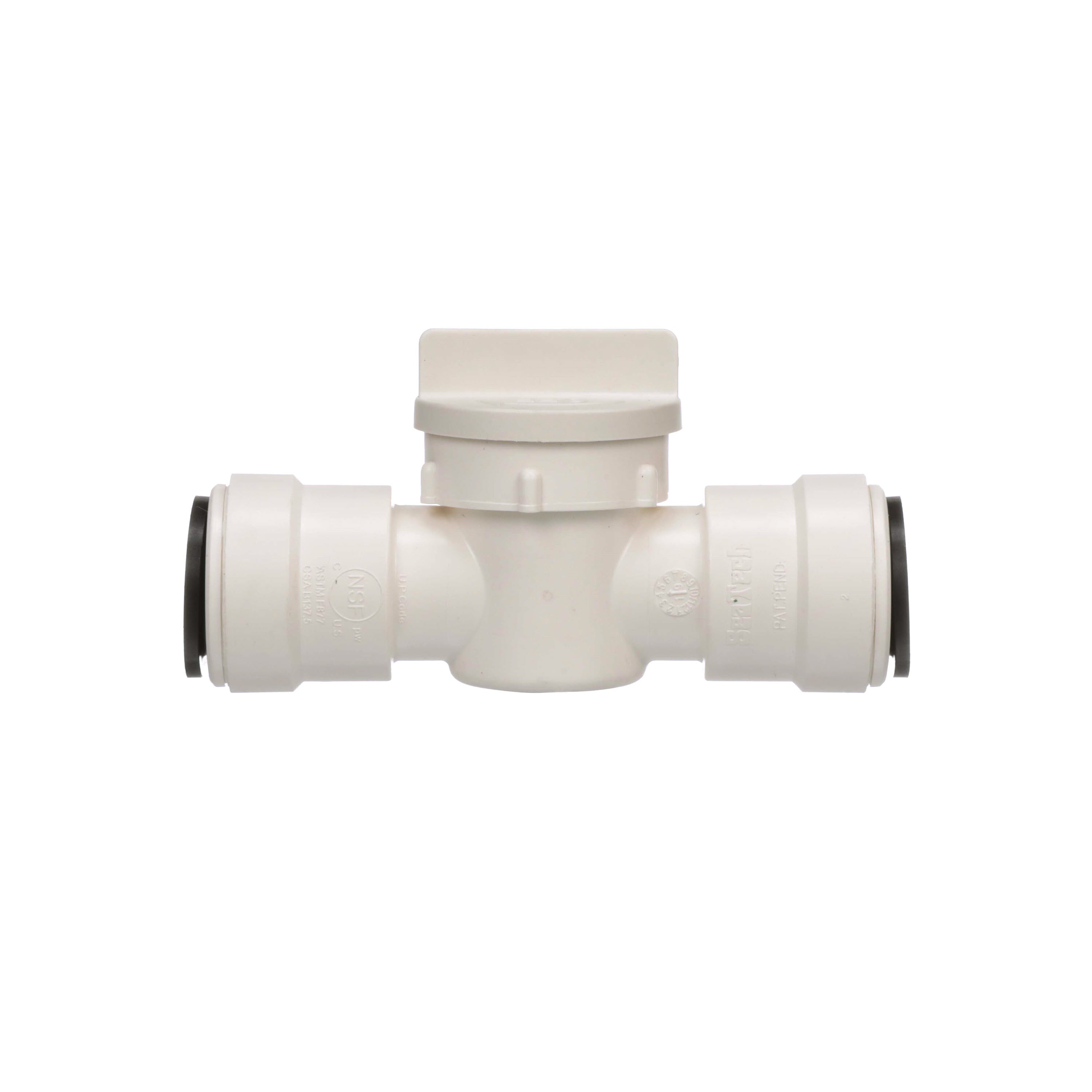

The Watts Regulator Company 0959099 is a straight reducing stop valve, Type 39R Quick-Connect. It is designed for use with water and operates at a pressure rating of 250 psi. The nominal size is one-half inch by one-quarter inch, and it connects copper, CPVC, PEX, and CTS rated pipes without the need for tools.

• No tools required for installation or removal.
• Rotates under pressure after installation for flexible positioning.
• Reusable with zero leak connections.

Product Highlights

This stop valve has a polysulfone body and an EPDM soft goods material, making it durable and reliable for both commercial and residential applications.

Product Information

Standard Information

• Manufacturer: Watts Regulator Company
• UPC: 098268299502

Technical Specifications

• Body Material: Polysulfone
• Color: Off-White
• Dimensions: 2-1/4 inches H
• End Style: CTS x OD
• Inlet to Outlet Length: 3-1/2 inches
• Media: Water
• Nominal Size: 1/2 inches x 1/4 inches
• Pressure Rating: 250 psi
• Series: 35 Series
• Temperature Rating: 75 degrees F
• Type: Type 39R Quick-Connect
