Product Description

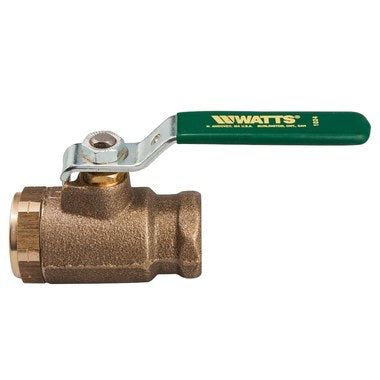

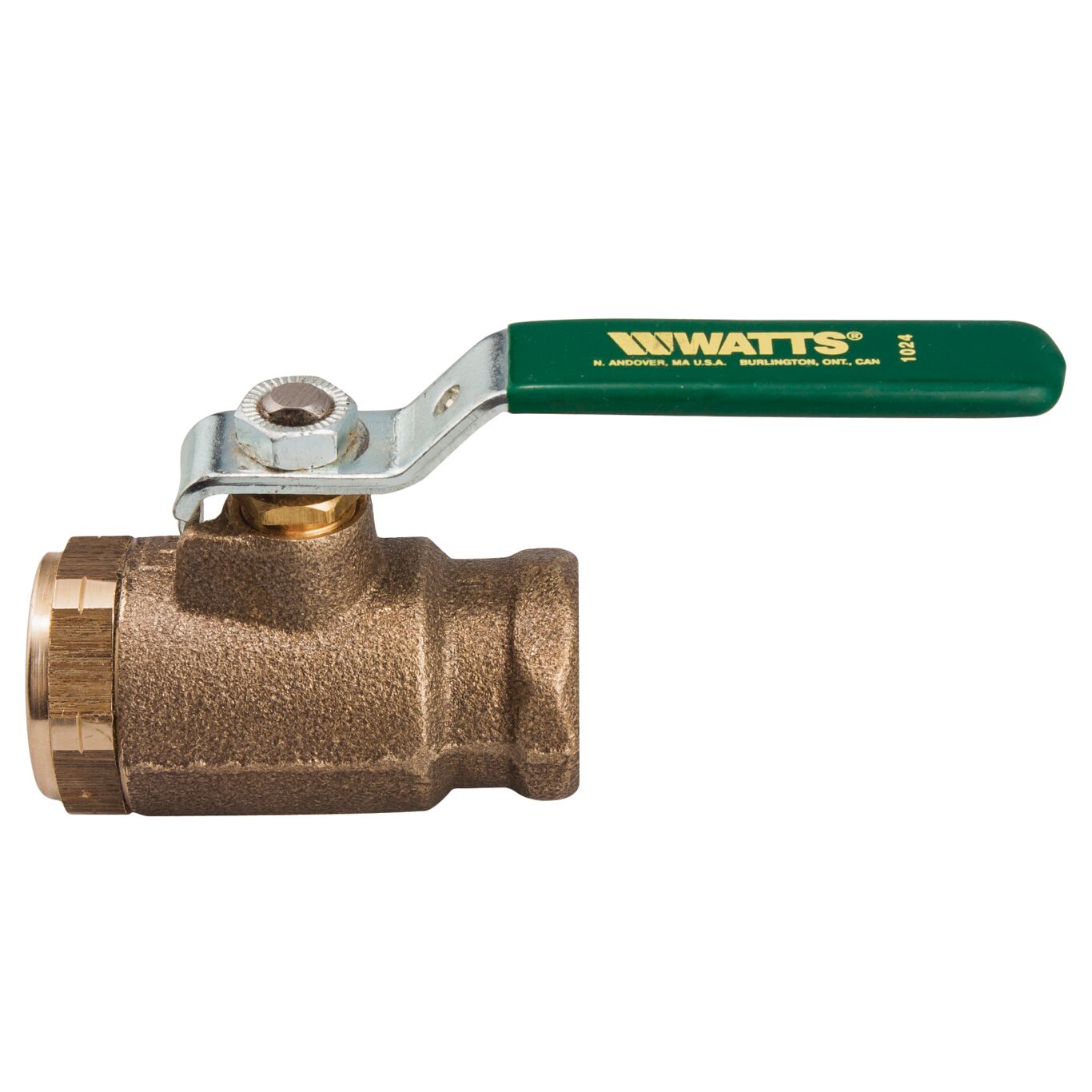

The Watts Regulator B6000M2-UL3/4 is a bronze ball valve designed to handle various fluid applications. This valve features a three-quarter inch threaded NPT connection, which allows for easy installation in plumbing systems. The two-piece design provides enhanced durability, making it suitable for commercial and industrial uses.
- UL approved for safety.
- PTFE seal for leak prevention.
- Operate at a maximum pressure of 600 PSI WOG non-shock.
Product Highlights
This ball valve offers reliable performance for a range of fluid control tasks. Its sturdy construction and effective sealing capabilities help minimize maintenance needs.
Product Information
Standard Information
-
Brand: Watts Regulator
-
Manufacturer: Watts Regulator
Technical Specifications
-
Size: 3/4 inches
-
Material: Bronze
-
End Connection: Threaded NPT
-
Pressure Rating: 600 PSI WOG Non-Shock / 150 PSI WSP
-
Handle Type: Lever
-
Seal Material: PTFE
-
Temperature Range: 0 to 450 degrees Fahrenheit
-
Length: 2.2 inches
-
Width: 0.67 inches
-
Height: 5.2 inches
-
Shipping Weight: 3 pounds
-
Application: Commercial and Industrial
-
End to End Distance: 2-13/16 inches
