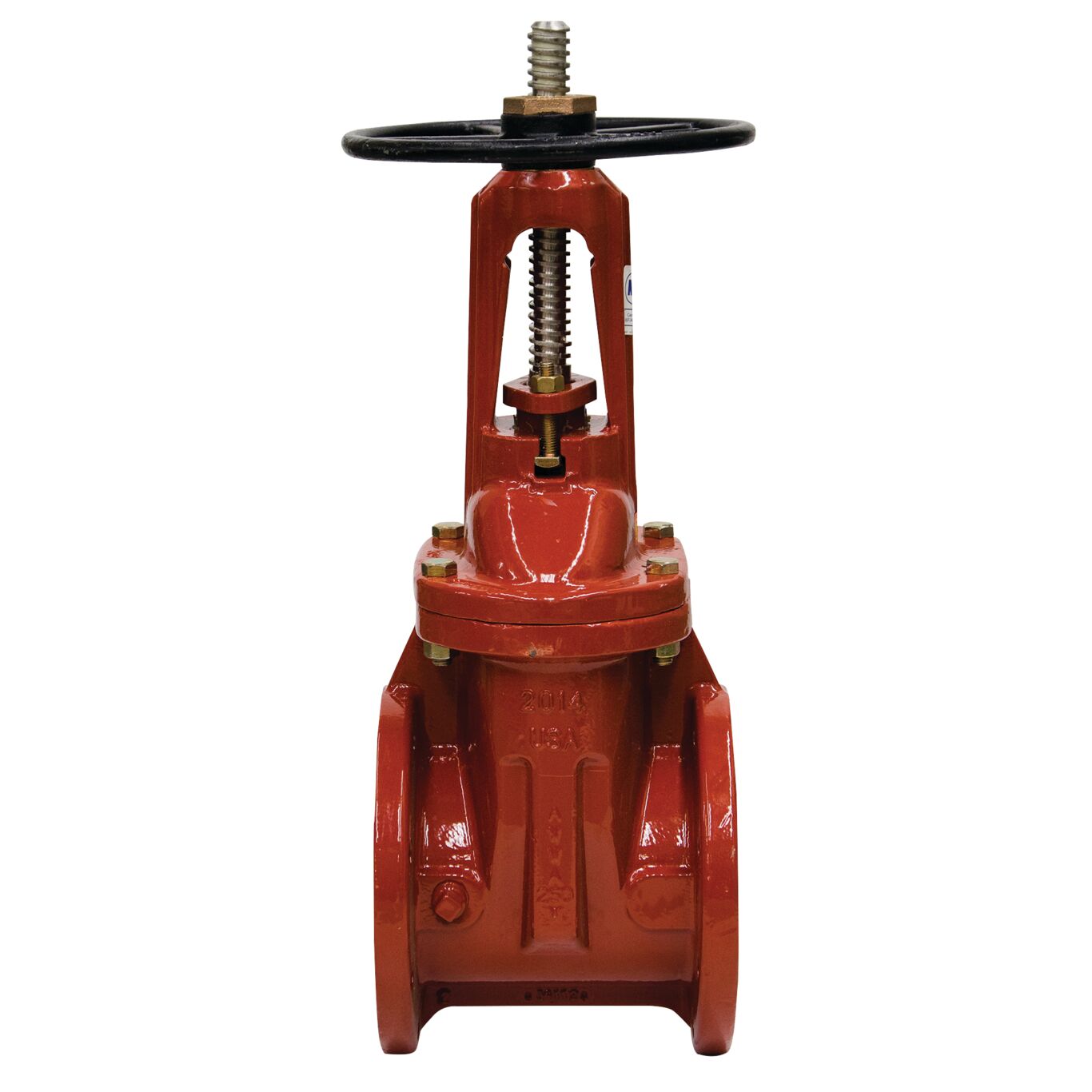

Watts Regulator 408-OSY-RW6 Gate Valve 6 Inch Flanged Cast Iron

Product Description

The Watts Regulator 408-OSY-RW6 is a six-inch gate valve designed for effective fluid control. This valve features an outside stem and yoke construction suitable for various applications, particularly in fire protection systems.

• Size: Six inches
• Material: Cast iron construction
• Operating pressure: Non-shock rating of 250 PSI

Product Highlights

This valve is optimal for regulating water flow in fire protection systems. It is built with durable materials ensuring long-lasting performance.

Product Information

Standard Information

• Brand: Watts Regulator
• Part Number: 0702325

Technical Specifications

• Size: 6 inches
• Material: Cast iron
• Pressure Rating: Non-shock 250 PSI
• Seal Material: Buna-N
• Temperature Rating: 140 degrees Fahrenheit
• End Connection: Flanged
• End to End Distance: 10.5 inches
• Application: Fire Protection
• Shipping Weight: 150 pounds
• Product Type: Outside Stem and Yoke
• Dimensions: 10.5 x 11 x 30.125 inches (length x width x height)
