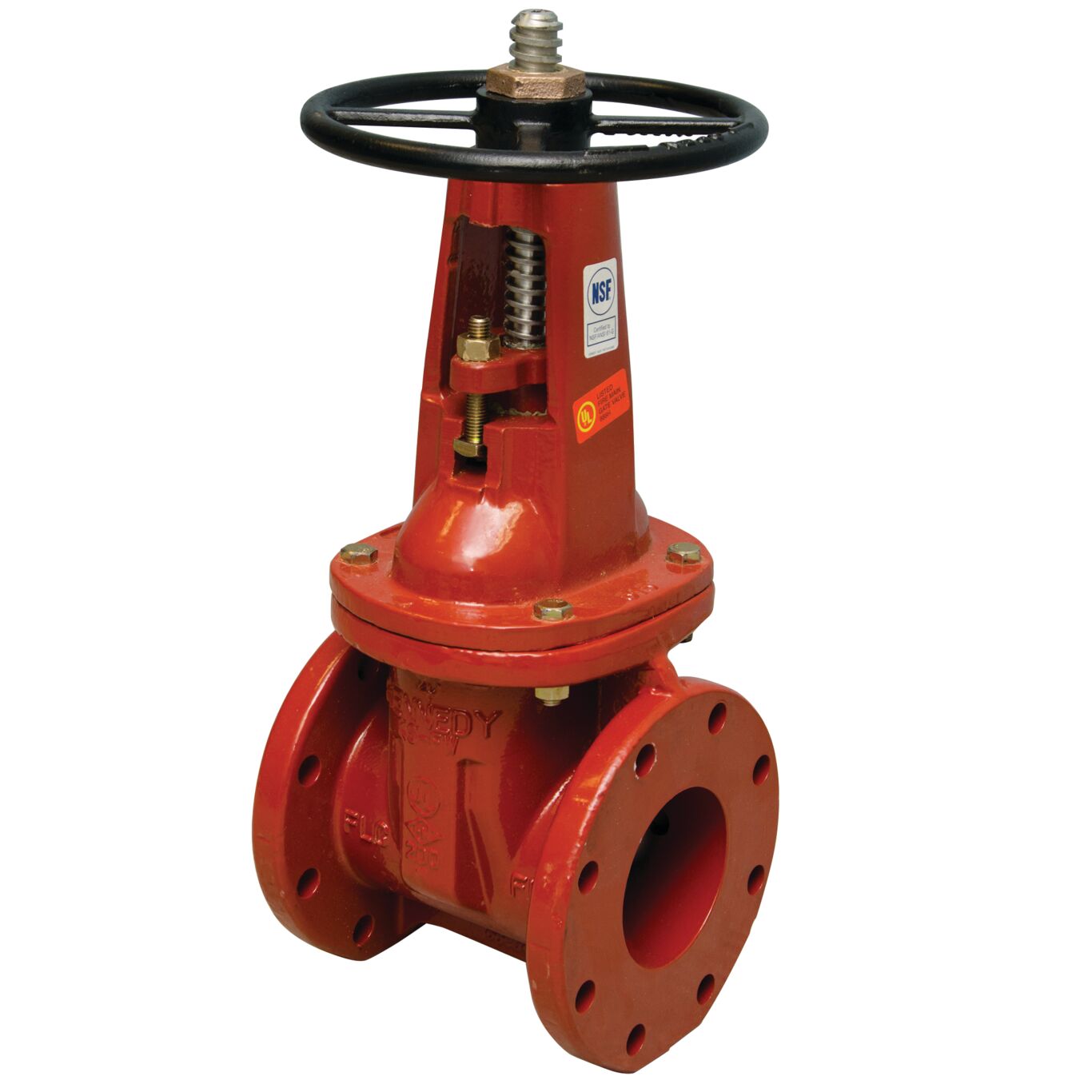

Watts Regulator 408-OSY-RW3 Gate Valve 3 Inch Flanged Cast Iron 0702315

Product Description

The Watts Regulator model 408-OSY-RW3 is a gate valve designed for fire protection applications. This valve features a three-inch outside stem and yoke design, ensuring robust performance in demanding environments. The cast iron construction provides durability and reliability.

• Made from cast iron for strength
• Flanged end connection for easy installation
• Non-shock pressure rating of 250 PSI CWP

Product Highlights

This gate valve is ideal for fire protection systems, providing controlled flow with minimal pressure loss. It operates efficiently at a maximum temperature of one hundred forty degrees Fahrenheit.

Product Information

Standard Information

• Brand: Watts Regulator
• Part Number: 0702315

Technical Specifications

• Size: Three inches
• Material: Cast iron
• Pressure Rating: Non-shock 250 PSI CWP
• Seal Material: Buna-N
• End Connection: Flanged
• Temperature Rating: One hundred forty degrees Fahrenheit
• End to End Distance: Eight inches
• Shipping Weight: Seventy pounds
