Product Description

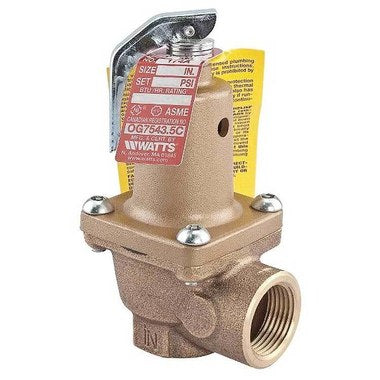

The Watts Regulator 174A-100 is a relief valve designed for water pressure applications. This valve is made of bronze and can handle pressures up to 100 pounds per square inch. It is suitable for use in hot water heating and domestic supply boilers.
- Bronze construction for durability.
- Max pressure rating of 100 PSI.
- Compatible with female threaded NPT connections.
Product Highlights
The Watts Regulator 174A-100 performs reliably under high pressure and temperature conditions. It measures four and a quarter inches in width and height, and has a vertical dimension of eight and a half inches.
Product Information
Standard Information
-
Brand: Watts Regulator
-
Part Number: 0275950
Technical Specifications
-
Size: 4-1/4 x 4-1/4 x 8-1/2 inches
-
Material: Bronze
-
Pressure Rating: 100 PSI
-
Temperature Rating: 250 degrees Fahrenheit
-
End Connection: Female threaded NPT
-
Length: 4-1/4 inches
-
Width: 4-1/4 inches
-
Height: 8-1/2 inches
-
Shipping Weight: 4.600 lbs
-
End to End Distance: 4-1/4 inches
-
Application: Hot water heating and domestic supply boiler
