Product Description

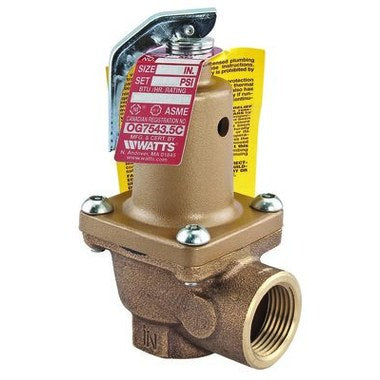

The Watts Regulator 174A-080-3/4FS is a relief valve designed for water pressure management in systems such as hot water heating and domestic supply boilers. This valve features female connections and is made from durable bronze, suitable for various applications. The operating pressure is rated at eighty pounds per square inch, ensuring efficient performance.
- Female end connection
- Made from bronze material
- Designed for hot water heating
Product Highlights
This relief valve is engineered for use in water pressure systems, featuring a temperature tolerance of two hundred fifty degrees. It is compact, with an end-to-end distance measuring two and three-fourths inches, making it easy to install in tight spaces.
Product Information
Standard Information
-
Brand: Watts Regulator
-
Product Type: Water Pressure
Technical Specifications
-
Size: 3/4 inches
-
End Connection: Female
-
Material: Bronze
-
Pressure Rating: 80 PSI
-
Temperature Rating: 250 degrees Fahrenheit
-
End to End Distance: 2-3/4 inches
-
Application: Hot Water Heating and Domestic Supply Boiler
-
Length: 2-3/4 inches
-
Width: 2-3/4 inches
-
Height: 4-1/2 inches
-
Shipping Weight: 1.200 lbs
