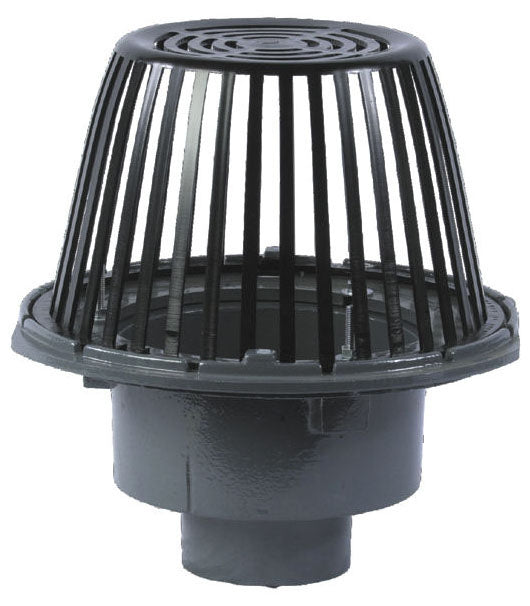

Watts RD-105-NH-R-D-K 5 No Hub Epoxy Coated Cast Iron Bottom Outlet Roof Drain with Underdeck Clamp/2 External Water Dam

Product Description

The Watts RD-105-NH-R-D-K is a five-inch no hub roof drain made from epoxy coated cast iron. This product features a bottom outlet and includes an underdeck clamp along with two external water dams. It is designed to effectively drain large roof areas, ensuring efficient water management.

• Five-inch pipe size.
• Flashing clamp with integral gravel stop.
• Compatible with ANSI/IAPMO A112.6.4 standards.

Product Highlights

This roof drain is suitable for large area applications, offering reliable drainage performance.

Product Information

Standard Information

• Brand: Watts
• MPN: RD-105-NH-R-D-K

Technical Specifications

• Body Material: Epoxy Coated Cast Iron
• Top Material: Polyethylene

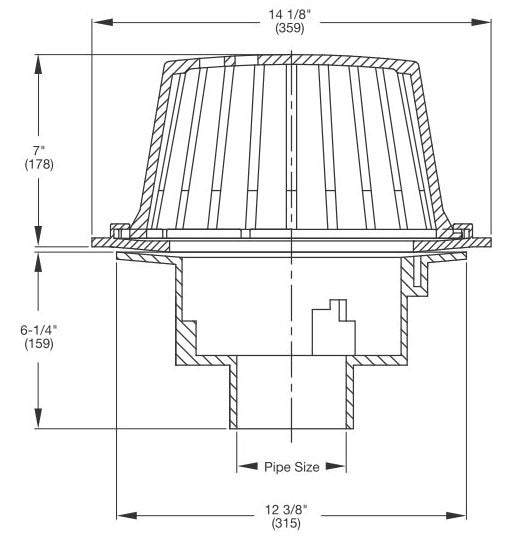

• Overall Top Size: 14-1/8 inches
• Body Height: 6-1/4 inches
• Dome Height: 7 inches
• Free Area Size: 137 square inches
• Inclusions: Flashing clamp, integral gravel stop, underdeck clamp
• Outlet Type: No Hub
• Applicable Standard: ANSI/IAPMO A112.6.4
