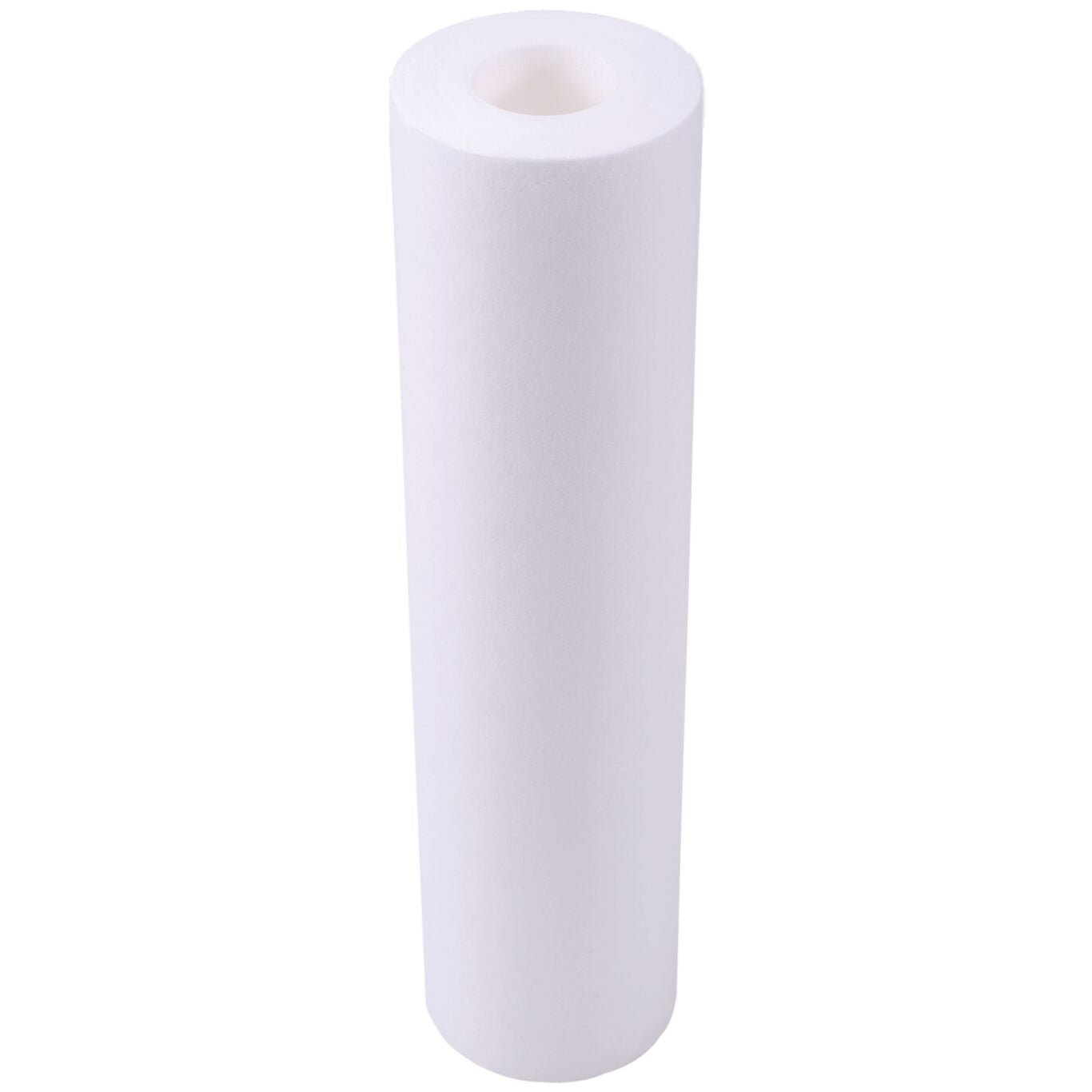

Watts PWMB20FFM5 Full Flow 5 Micron Filter, 20 In

Product Description

The WATTS PWMB20FFM5 is a 20 inch 5 micron full flow sediment depth cartridge. It is constructed from melt blown polypropylene, offering excellent chemical resistance and preventing media migration. Suitable for potable water, beverages, and fine chemicals, it features a high dirt holding capacity. The filter is rated for temperatures up to 140°F and water pressure up to 40 psi.

• 5 Microns filtration rating
• Melt blown polypropylene
• Rated for temperatures up to 140 Fahrenheit
• Removes rust, sand and particles without reducing or restricting the full flow of water

Product Highlights

This filter is ideal for pre-filtration, electronics, metal finishing, and plating solutions, ensuring high-quality filtration for various applications.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: PWMB20FFM5

Technical Specifications

• Brand: Watts
• Buy American Act Compliant: No
• Chlorine Reduction: No
• EAN: 098268565676
• End Cap Style: DOE
• Filter Size: 4 1/2 x 20
• Filter Type: Melt Blown
• Lead Free: Yes
• Maximum Capacity-Gallons: 9999.00
• Maximum Flow Rate-GPM: 25.00
• Maximum Temperature-Fahrenheit: 140
• Micron Rating-Nominal: 5.00
• Minimum Temperature-Fahrenheit: 40
• Part Number: 7100353
• Series: PWMB
• Item: Filter
• Caprop65 Inscope: No
• Max. Capacity: 9999 gal.
• Max. Flow Rate: 25 GPM
• Max. Temp.: 140°F
• Mfr. Series: PWMB Series
• Micron Rating-nominal: 5 µm
• Min. Temp.: 40°F
• Size: 4 1/2 x 20
• Type: Melt Blown
• ANSI: ANSI 42, ANSI 372
• Capacity: 9999 gal
• Cartridge Type: Depth Cartridge
• Collection: PWMB Series
• Contaminant Removal: Sediment, Dirt, Rust, Particle
• Diameter: 4-1/2
• Filtering Material: Yes
• Flow Rate: 20 gpm
• Height: 20
• IAPMO Listed: No
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• Length: 20
• Material: Plastic
• Material Type: Polypropylene
• Micron Rating: 5 Micron
• NSF: NSF 42, NSF 372
• NSF Certified: Yes
• Pressure - Maximum: 40 psi
• Temperature Range: 40 to 140 Deg F
