Watts PWHIB20FF Full Flow Housing Kit With Pressure Relief 20 in

Product Description

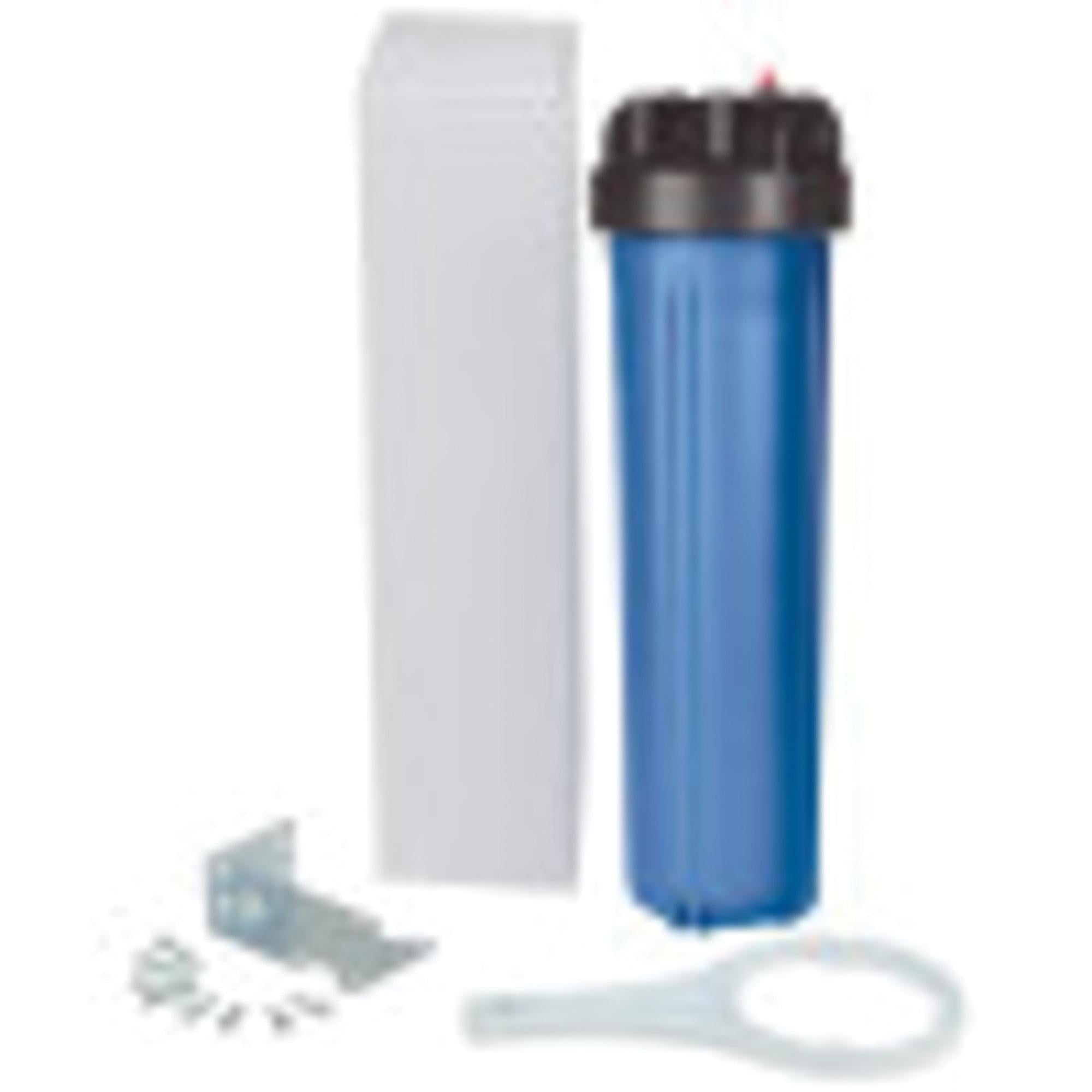

The WATTS PWHIB20FF full flow housing kit with pressure relief is designed for full flow housings. The 20 inch kit includes the housing with a pressure relief lid, wrench, single mounting bracket, and all mounting screws. The polypropylene construction provides chemical resistance in most environments.

• 20 Inches long
• Blue housing with black lid
• Includes pressure relief valve

Product Highlights

This kit has all you need for easy in-line installation and comes complete with housing, mounting bracket, screws, and wrench.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: PWHIB20FF

Technical Specifications

• Brand: Watts
• Buy American Act Compliant: NO
• Cap Color: Black
• CAProp65-DevelopRiskSubstance: n-Hexane
• CAProp65-InScope: Yes
• EAN: 098268564402
• GDS Status: Registered
• High Temperature: No
• Housing Finish: Smooth Plastic
• Housing Material: Polypropylene
• Inlet Connection Size: 1 IN
• Inlet Connection Thread Type: NPT
• Inlet Connection Type: Female Threaded
• Lead Free: YES
• Lid Closure Type: Screw-twist
• Maximum Temperature-Fahrenheit: 100
• Minimum Temperature-Fahrenheit: 40
• O-ring Material: EPDM
• Outlet Connection Size: 1 IN
• Outlet Connection Thread Type: NPT
• Outlet Connection Type: Female Threaded
• Part Number: 7100269
• Pressure Drop: 0.6 to 1 PSI based on the micron
• Pressure Rating-BAR: 6.21
• Pressure Rating-PSI: 90
• Pressure Relief: Yes
• Series: PWHIB Series
• Sump Color: Blue
• Additional Information: FNPT Connection, Screw-Twist Lid Closure
• Filter/Cartridge Size: 20 in
• Finish: Smooth Plastic
• Height: 24 in
• Material: Polypropylene
• Temperature Rating: 40 to 100 deg F
• Width: 7.28 in
• Size: 1 in
