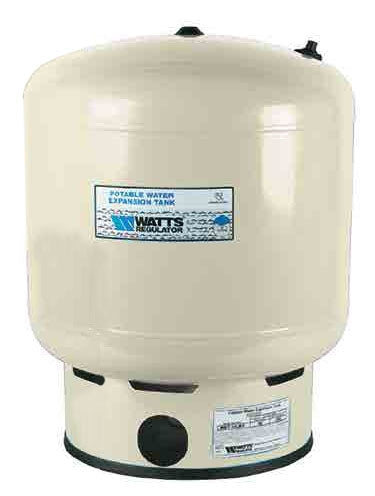

Watts PLT-35 Potable Water Expansion Tank 3/4 IN Male Connection Replacement MPN

Product Description

The Watts PLT-35 is a potable water expansion tank designed to accommodate the increased volume of water due to thermal expansion. This product features a three-fourth inch male connection and has a tank volume of fourteen gallons. It is suitable for direct fired hot water heaters, ensuring safety and efficiency in water supply systems.

• Tank volume of fourteen gallons
• Temperature rating of two hundred degrees Fahrenheit
• Pressure rating of one hundred fifty PSI

Product Highlights

The Watts PLT-35 helps prevent over-pressure in water systems and maintains balanced pressure throughout. It meets various applicable standards and is designed for use in residential hot water systems.

Product Information

Standard Information

• Brand: Watts
• Product Type: Water Heaters

Technical Specifications

• Air Charge Capacity: 20 PSI
• Air Charge Type: Field Adjustable Pre-Charged
• Applicable Standard: NSF/ANSI 61, UPC, NSF, IAPMO
• Application: Direct Fired Hot Water Heater and Hot Water Storage Tank
• Catalog Number: PLT-35
• Diaphragm Type: Butyl Rubber
• Inlet/Outlet Connection: 1 Inch Female Threaded
• Pressure Rating: 150 PSI
• Tank Capacity: 14 Gallon
• Tank Dimensions: 16 Inch Diameter x 21.7 Inch Height
• Tank Material: Steel
• Tank Warranty: 1 Year
• Temperature Rating: 200 Deg F
• Type: Free Standing, In-Line
