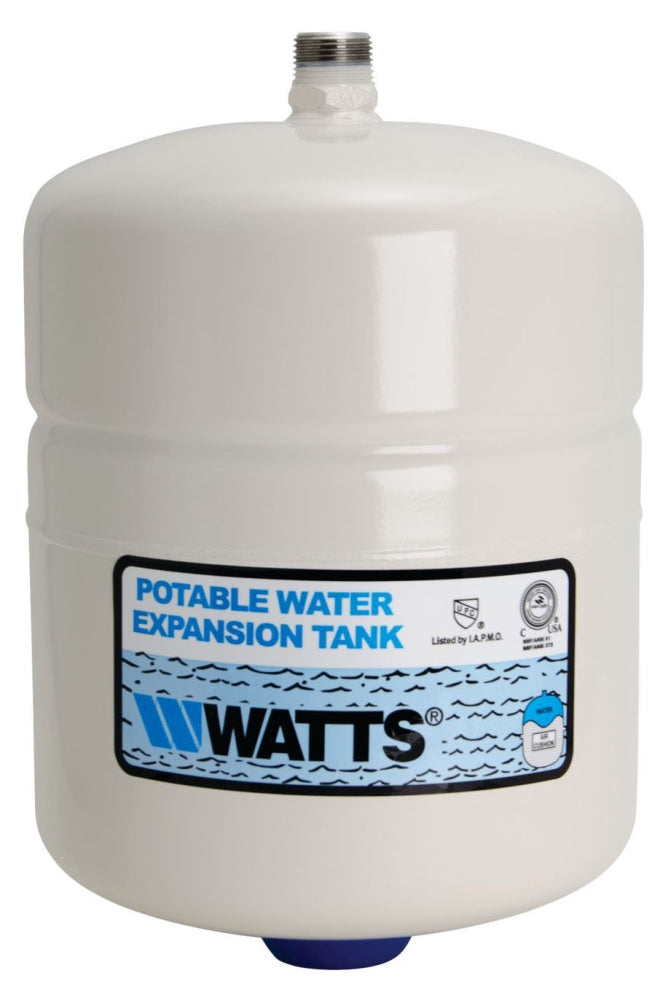

Watts PLT-12 Water Heater Expansion Tank 4.5 Gallon

Product Description

The Watts PLT-12 is a water heater expansion tank designed to manage thermal expansion in potable water systems. This tank can be installed in-line and is suitable for freestanding, vertical, and portable applications.

• Tank volume of 4.5 gallons
• 3/4 inch male threaded inlet/outlet connection
• Made with drawn steel and polypropylene lining

Product Highlights

This expansion tank helps maintain balanced pressure in water heater and hot water storage systems.

Product Information

Standard Information

• Manufacturer: Watts
• UPC: 98268095753

Technical Specifications

• Type: In-Line, Freestanding, Vertical, Portable
• Air Charge Capacity: 20 PSI
• Pressure Rating: 150 PSI
• Temperature Rating: 200 Deg F
• Tank Dimensions: 10.5 Inch Diameter x 13.5 Inch Height
• Tank Capacity: 4.5 Gallon
• Diaphragm Type: Butyl Rubber
• Inclusions/Features: Stainless Steel Inlet Connector
• Application: Water Heater and Hot Water Storage Tank
• Compatible Standards: ISO 9001, NSF/ANSI 61, IAPMO, UPC
