Watts LFUSG-B-M3 3/8 LFUSG-B M3 3/8 inch lead free thermostatic mixing valve 0204143

Product Description

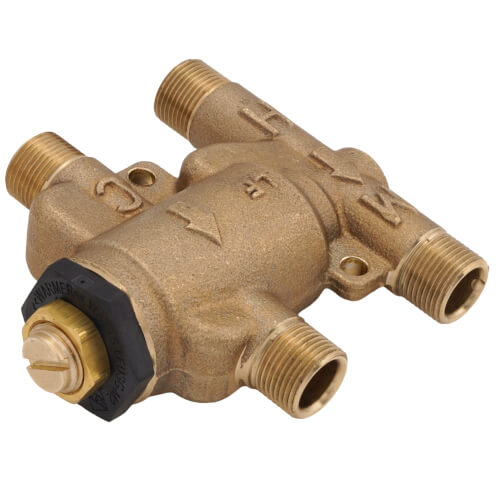

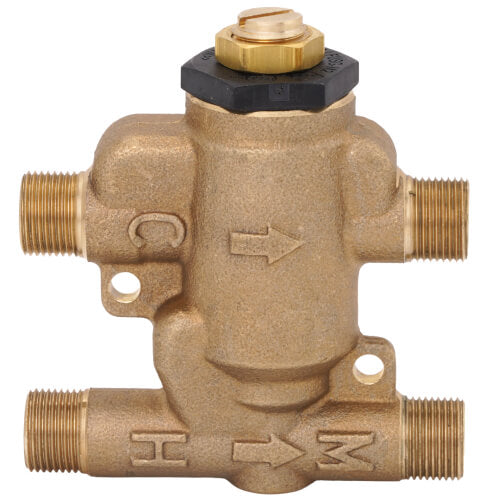

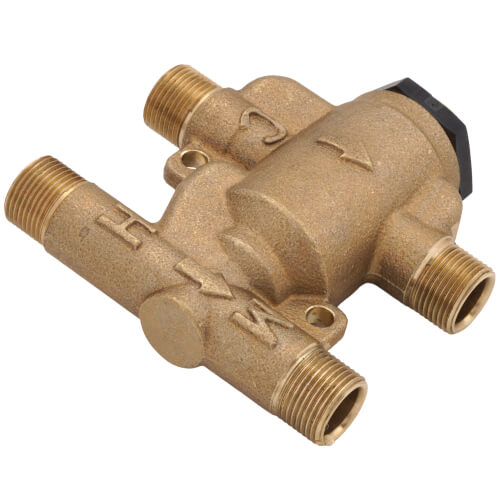

This WATTS LFUSG-B-M3 3/8 lead free thermostatic mixing valve is designed for commercial and residential applications to control hot water temperature and prevent scalding. Suitable for kitchen and bath installations, its double throttling design manages both hot and cold water supply to the mixed outlet. Constructed with a lead free brass body and 3/8 inch male compression fittings, it features a copper thermostat, check valves, and an integral strainer with 40 mesh stainless steel screens. It operates up to 150 PSI and is field adjustable from 80 to 120 degrees F.

• Accurate temperature control with low pressure drop
• Built-in check valves prevent hot and cold water cross flow
• Provides superior flow rate between 0.25 and 2.5 GPM

Product Highlights

Lead-free brass body, 3/8 inch compression fittings, and tamper-resistant cap for safe and precise temperature regulation.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: LFUSG-B-M3 3/8

Technical Specifications

• Body Finish: Rough Bronze
• Body Material: Lead Free Brass
• Cold Inlet Temperature Range: 39 to 80 F
• Cold Water Bypass: No
• Inlet Connection Size: 3/8 IN
• Connection Type: Compression Joint
• Factory Set Temperature: 105 F
• Flow Rate: 0.25 to 2.25 GPM
• Hot Inlet Temperature Range: 120 to 180 F
• Lead Free: Yes
• Maximum Pressure Differential: 20 Percent
• Max Working Pressure: 150 PSI
• Min Differential Temperature: 5 F
• Min Static Pressure: 30 PSI
• Outlet Connection Size: 3/8 IN
• Outlet Temperature Accuracy: Plus/minus 3 F
• Series: LFUSG-B
• Temperature Adjustment Range: 80 to 120 F
• Valve Application: Tempered Domestic Potable Water
• Point-of-Use Certified: Yes
• Point-of-Source Certified: No
• ASSE Classification: 1070
