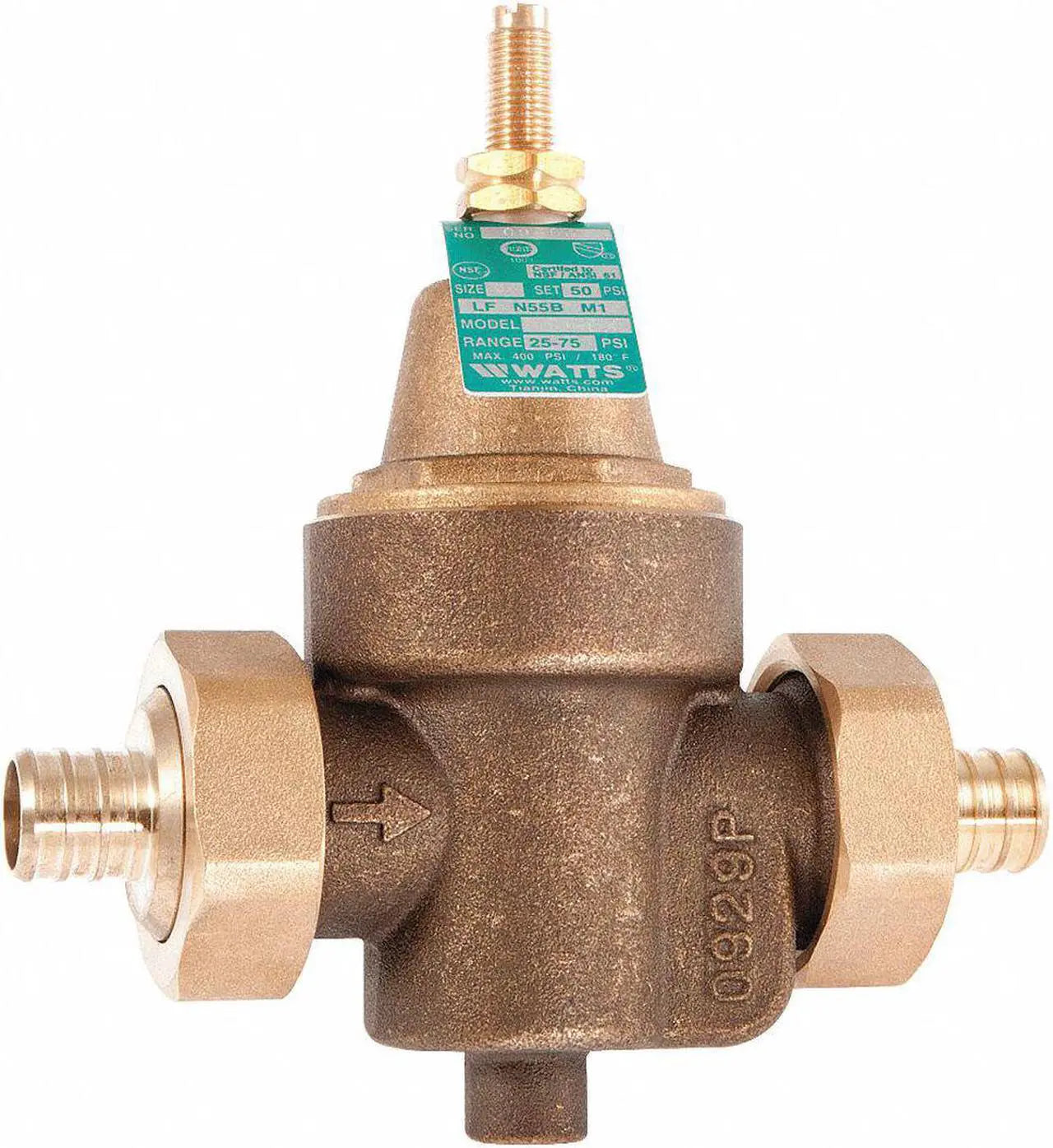

Watts LFN55BM1-DU-PEX 1 inches Regulator Water Pressure Reducing Valve

Product Description

The WATTS LFN55BM1-DU-PEX is a standard-capacity water pressure regulator that controls incoming water pressure to set levels. It protects plumbing systems and reduces water consumption in light commercial and residential applications. Its integral strainer provides easy accessibility for inline servicing in tight spaces.

• Standard-capacity water pressure regulators
• Control incoming water pressure to set levels
• Protect plumbing systems

Product Highlights

This water pressure reducing valve is suitable for light commercial and residential applications. It has an integral strainer that provides easy accessibility for inline servicing.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: LFN55BM1-DU-PEX 1"
• Country of Origin: USA

Technical Specifications

• Brand: WATTS REGULATOR
• For Media: Water
• Application: Commercial Use; Residential Use
• Inlet Connection Size: 1 in
• Outlet Connection Size: 1 in
• Body Material: Copper Silicon Alloy
• Seat Material: TPE
• Disc Material: EPDM
• Coating/Lining: NSF Listed Fusion Bonded Epoxy Lining and Coating
• Pressure Adjustment Range: 25 psi to 75 psi
• Operating Pressure Range: 400 psi
• Max. Operating Temperature: 180 °F
• Factory Set Pressure: 50 psi
• Port Design: Full Port
• Overall Height: 6-1/4 in
• Includes Strainer: Strainer Included
• Low-Lead Compliance: Low-Lead Compliant
• NSF Certifications for Food and Drinking Water: NSF 61G
• Standards: ANSI A112.26.2; ASSE 1003; Certified by NSF to ANSI/NSF Standard 61 Annex G; CSA B356; Listed by IAPMO and City of Los Angeles
• Manufacturer Part Number: 1" LFN55BM1-DU-PEX
• UNSPSC: 40141609
• Valve Type: Standard
• Strainer: Yes
• Connection Type: Double Union x PEX Union
• Length: 5-1/4 In.
