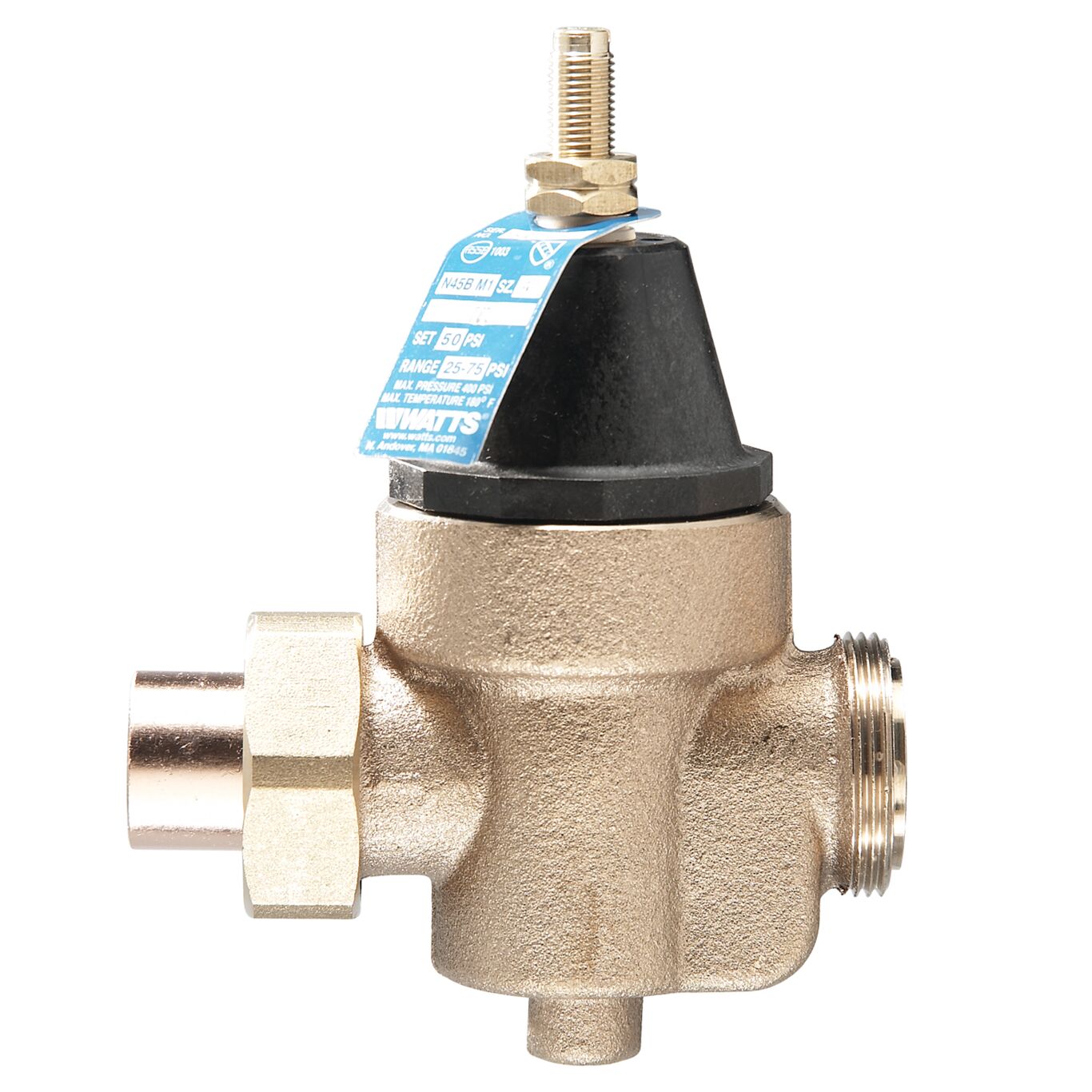

WATTS LFN45BM1-U-S 1/2 IN Lead Free Water Pressure Reducing Valve Solder x FPT

Product Description

The WATTS LFN45BM1-U-S is a half inch lead free water pressure reducing valve designed to reduce incoming water pressure. It protects plumbing systems and lowers water consumption. This valve uses solder union by NPT female end connections.

• Working pressure can reach up to four hundred psi
• Pressure adjustment setting ranges from twenty-five to seventy-five psi
• Includes integral stainless steel strainer that is removable for easy cleaning

Product Highlights

This valve consists of a lead free cast copper silicon alloy body and has a thermal expansion bypass. Serviceability is quick and requires no removal from the line.

Product Information

Standard Information

• Body Material: Lead Free Cast Copper Silicon Alloy
• Inlet Connection Type: Union Female Threaded

Technical Specifications

• Adjustable Reduced Pressure Range: 25 to 75 psi
• Maximum Working Pressure: 400 psi
• Minimum Temperature: 33°F
• Outlet Connection Size: 1/2 IN
• Strainer Material: Stainless Steel
• Thermal Expansion Bypass: Yes
• Valve Style: Standard
