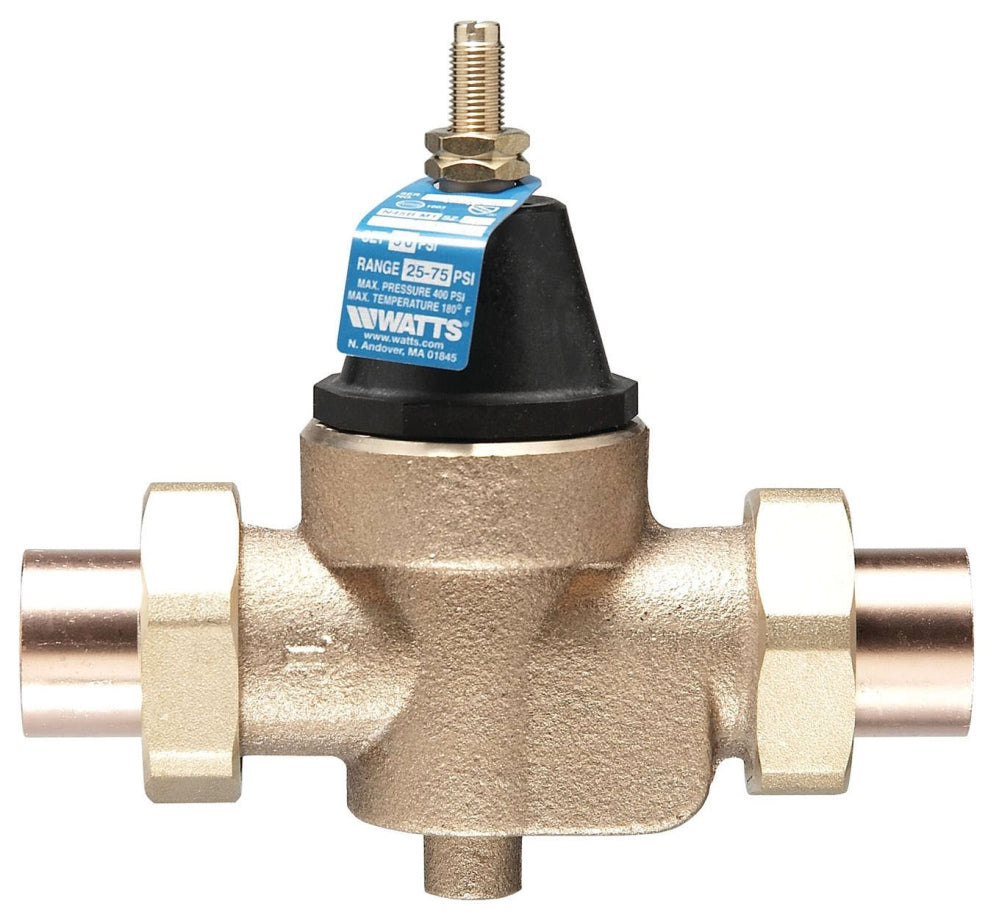

Watts LFN45B-DU-S Water Pressure Reducing Valve 2 Inch x 2 Inch

Product Description

The WATTS LFN45B-DU-S is a water pressure reducing valve with a double union type and diaphragm actuation. Featuring a cast copper silicon alloy body and thermoplastic seat material, it is designed for commercial, residential, plumbing, and water applications. The valve has a downstream pressure range of 25 to 75 PSI and a temperature rating of 33 to 180 Deg F.

• Integral Stainless Steel Strainer
• Serviceable in Line
• Bypass Feature Controls Thermal Expansion Pressure

Product Highlights

This lead-free valve includes an EPDM valve disc, reinforced EPDM diaphragm, and stainless steel strainer. It conforms to ASSE 1003, ANSI A112.26.2, CSA B356, NSF/ANSI 61G, UPC, and IAPMO standards.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: LFN45B-DU-S

Technical Specifications

• Actuation Type: Diaphragm
• Applicable Standard: ASSE 1003, ANSI A112.26.2, CSA B356, NSF/ANSI 61G, UPC, IAPMO
• Application: Commercial, Residential, Plumbing, Water
• Body Material: Cast Copper Silicon Alloy
• Downstream Pressure Range: 25 to 75 PSI
• End Connection: Soldered Union x Soldered Union
• End To End Distance: 9-1/4 Inch
• Inclusions/Features: EPDM Valve Disc, Reinforced EPDM Diaphragm, Stainless Steel Strainer, Thermo Plastic Cage
• Nominal Size: 2 Inch x 2 Inch
• Pressure Rating: 300 PSI
• Product Sub-Type: Pressure Reducing Valve
• Product Type: Pipes/Valves/Fittings
• Seat Material: Thermoplastic
• Series/Model: LFN45B-L
• Standard Factory Setting: 50 PSI
• Strainer Supplied: Yes
• Temperature Rating: 33 to 180 Deg F
• Type: Double Union
