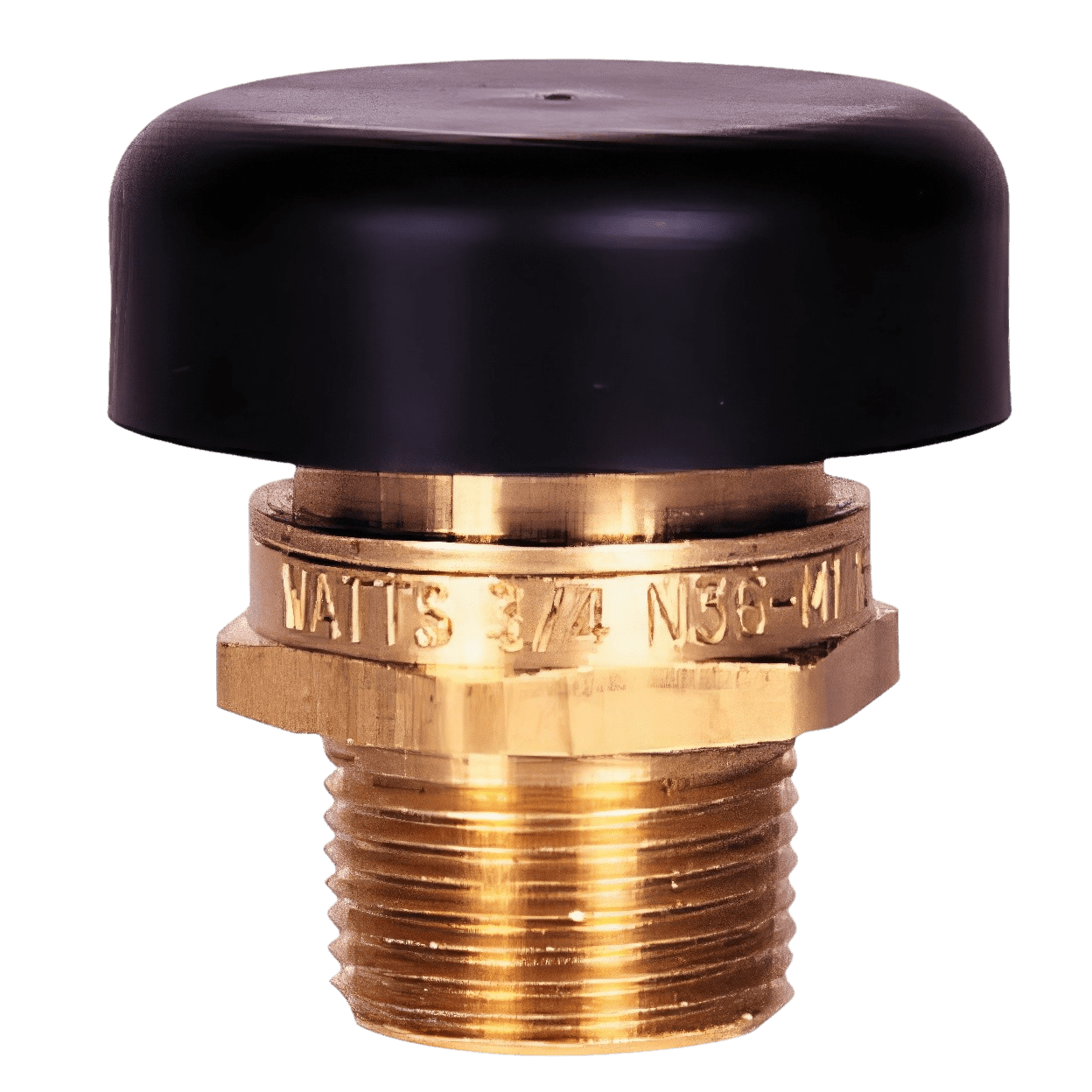

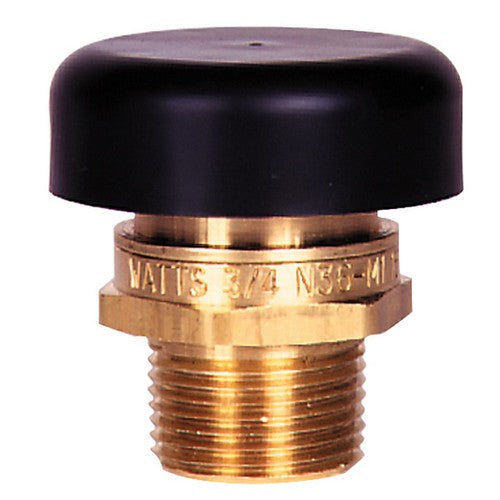

Watts LFN36-M1F Vaccum Relief Valve 3/4 inch NPT

Product Description

The Watts Lead-Free Brass Vacuum Relief Valve, model LFN36-M1F, is a crucial component for various heating systems. This valve is designed to prevent vacuum conditions that can hinder the operation of water heaters and other applications. Its lead-free brass composition ensures safety and compliance with health regulations.

• Flow capacity of 15 cfm for efficient operation.
• Durable construction suitable for maximum temperatures up to 250 degrees Fahrenheit.
• Certified to ANSI Z21.22 standards for added reliability.

Product Highlights

This vacuum relief valve is ideal for water heater, tank applications, and low-pressure steam systems. It effectively maintains safe pressure levels while allowing steam to escape when necessary.

Product Information

Standard Information

• Brand: Watts Water Technologies
• Part Number: LFN36-M1F

Technical Specifications

• Body Material: Lead-Free Brass
• Flow Capacity: 15 cfm
• Pressure Range: Working: 200 psi, Steam: 15 psi
• Dimensions: 2 inches H
• Maximum Temperature: 250 degrees Fahrenheit
• Standards: ANSI Z21.22, CSA Certified
• Uses: Water heater/tank applications, domestic water heaters, supply tanks, tabletop heaters, jacketed steam kettles, unit heaters, low pressure steam systems, steam coil heaters
