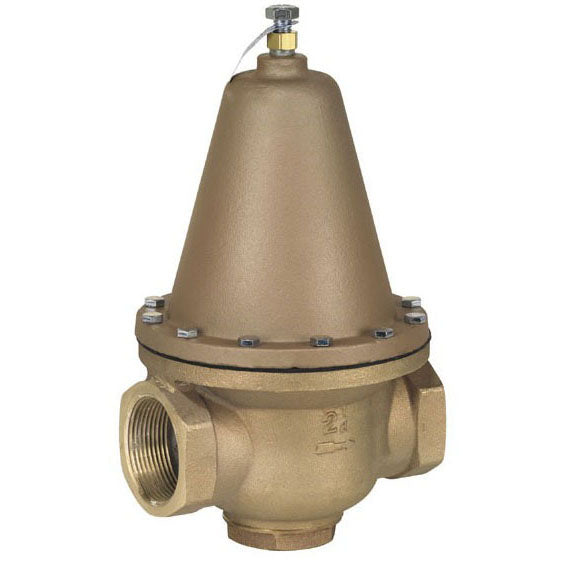

Watts LFN223B 3 inches Lead Free High Capacity Water Pressure Reducing Valve

Product Description

The WATTS LFN223B is a lead-free high-capacity water pressure reducing valve used in commercial, industrial, and institutional applications to reduce incoming water pressure, protect plumbing components, and reduce water consumption. It features a lead-free cast copper silicon alloy body and an enlarged diaphragm for super capacity performance. The adjustable reduced pressure range is 25 to 75psi.

• Enlarged diaphragm, spring cage and seat orifice for super capacity performance
• Lead Free* cast copper silicon alloy body construction
• Sealed spring cage on all models for accessible outdoor or pit installations

Product Highlights

This lead-free valve reduces incoming water pressure to protect plumbing and reduce water consumption. It is suitable for commercial, industrial, and institutional applications.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: LFN223B 3"

Technical Specifications

• Adjustable Reduced Pressure Range: 25 to 75
• Adjustable Reduced Pressure Range-BAR: 1.7 to 5.2
• Body Material: Lead Free Cast Copper Silicon Alloy
• Brand: Watts
• Buy American Act Compliant: YES
• Corrosion Resistant Coating: No
• Disc Material: EPDM
• EAN: 098268350944
• Gauge Option: No Gauge
• High Pressure Reduced Pressure Range: Does Not Apply To Product
• High Pressure Reduced Pressure Setting: Does Not Apply To Product
• Inlet Connection Size: 3 IN
• Inlet Connection Type: Female Threaded
• Inlet Thread Type: NPT
• Lead Free: YES
• Maximum Operating Temperature-Fahrenheit: 160
• Maximum Working Pressure-BAR: 20.70
• Maximum Working Pressure-PSI: 300
• Minimum Temperature - Celsius: 0.50
• Minimum Temperature-Fahrenheit: 33
• Outlet Connection Size: 3 IN
• Outlet Connection Type: Female Threaded
• Outlet Thread Type: NPT
• Part Number: 0298615
• Series: LFN223B
• Standard Reduced Pressure Setting-BAR: 3.40
• Standard Reduced Pressure Setting-PSI: 50
• Strainer: No
• Strainer Material: Does Not Apply To Product
• Thermal Expansion Bypass: Yes
• Trim Material: Does Not Apply To Product
• Type: Kit
• Valve Style: Standard
• Inlet Connection: IPS
• Manufacturer Name: Watts
• Valve Size: 3"
• With Gauge: No
• Applicable Standard: ANSI A112.26.2, ASSE 1003, IAPMO, CSA B356, UPC, NSF, MIL-V-18146B
• Nominal Size: 3"
• End Connection: Female Threaded x Female Threaded
• End to End Distance: 10-1/2"
• Seat Material: Stainless Steel
• Downstream Pressure Range: 25 to 75 PSI
• Standard Factory Setting: 50 PSI
• Strainer Supplied: No
• Temperature Rating: 33 to 160 Deg F
• Pressure Rating: 300 PSI
• Inclusions/Features: Sealed Spring Cage
• Exclusions: Strainer
• Application: Commercial, Industrial, Institutional, Plumbing, Water
• Packaging Quantity: 1 per Carton
