Product Description

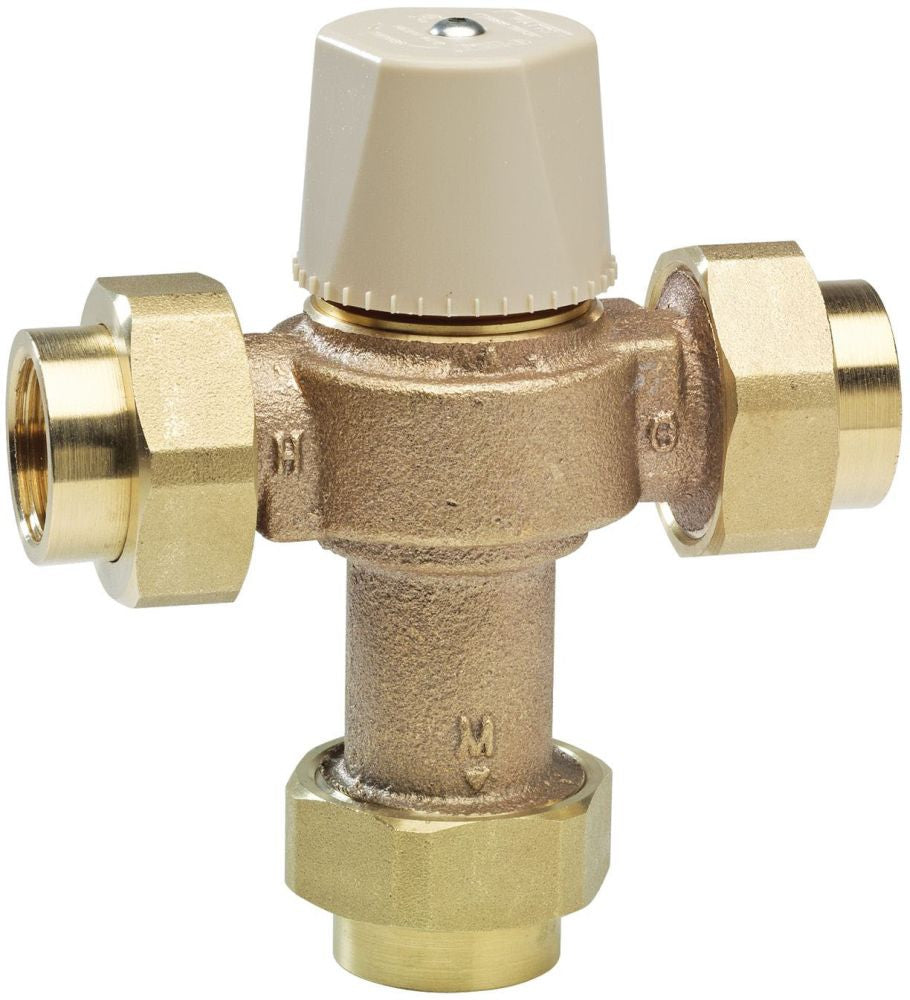

The Watts LFMMVM1-UT3/4 is a thermostatic mixing valve designed for both residential and commercial use. Its nominal size is three-fourth inches by three-fourth inches, with female threaded end connections. The valve ensures precise temperature control by mixing hot and cold water to supply suitably tempered water at the outlet.
- Flow rate ranges from zero point five to twenty gallons per minute.
- Pressure ratings can reach up to one hundred fifty PSI.
- Meets NSF/ANSI/CAN standards for lead-free compliance.
Product Highlights
This thermostatic mixing valve is suitable for various environments including homes, schools, restaurants, and hospitals. It includes features like a copper thermostat assembly and a locking mechanism to secure the temperature setting.
Product Information
Standard Information
-
Brand: Watts
-
Part Number: LFMMVM1-UT3/4
Technical Specifications
-
Nominal Size: Three-fourth inches
-
End Connection: Female threaded
-
Body Material: Cast copper silicon alloy
-
Disc Material: Stainless steel
-
Flow Rate: Zero point five to twenty GPM
-
Set Temperature Range: One hundred five degrees Fahrenheit
-
Temperature Rating: Thirty-nine to eighty-five degrees Fahrenheit (cold), one hundred twenty to one hundred eighty degrees Fahrenheit (hot)
-
Pressure Rating: One hundred fifty PSI
-
Applicable Standard: CSA (Canada and US), ASSE 1017/1069/1070, NSF/ANSI/CAN 61G, IAPMO, CUPC
