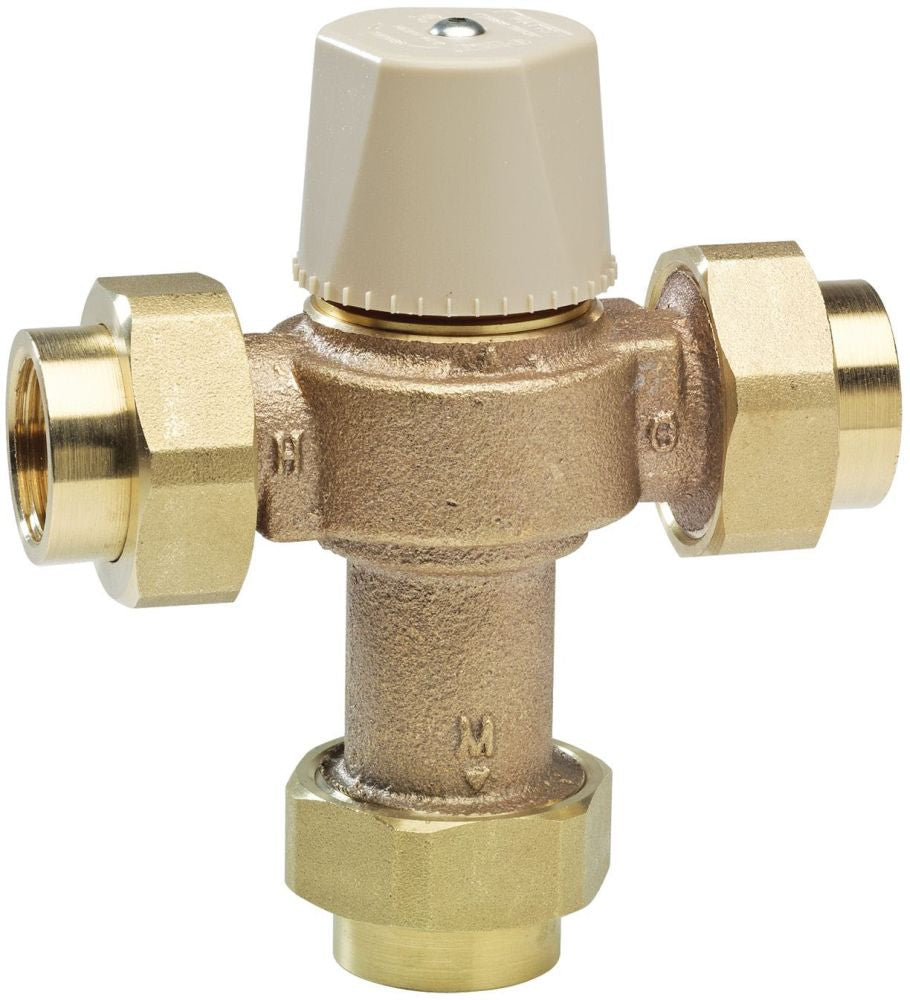

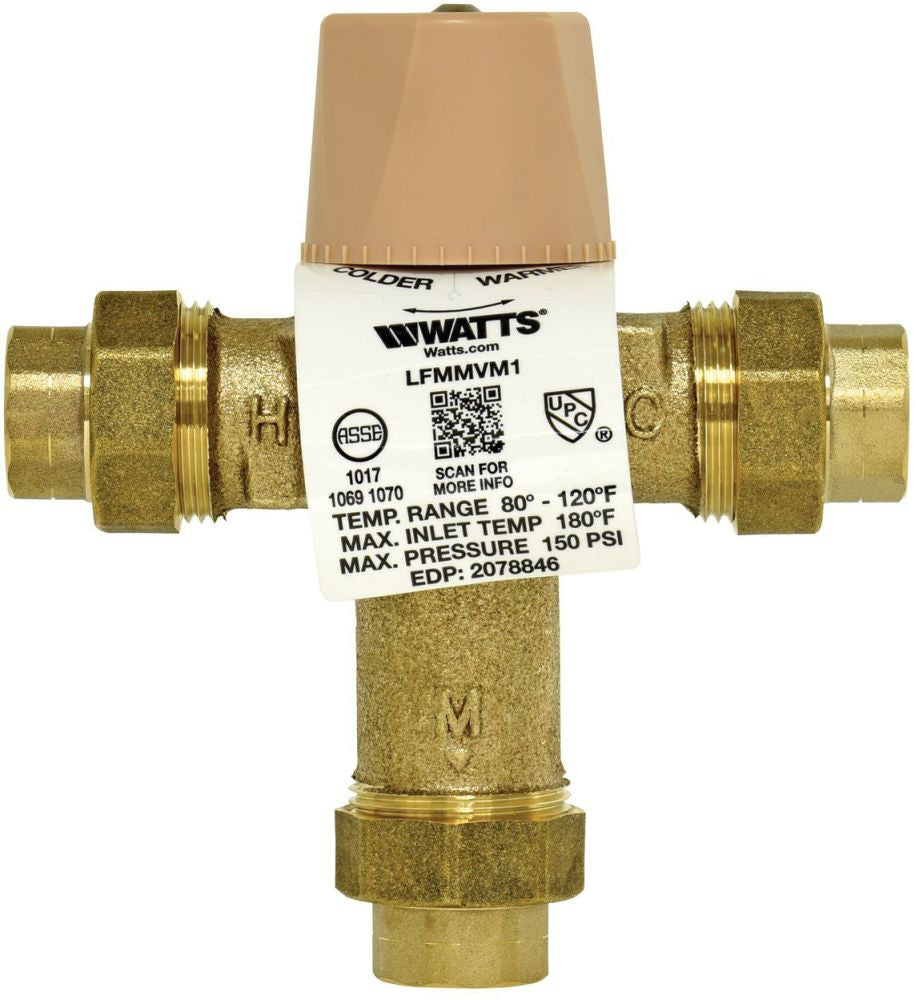

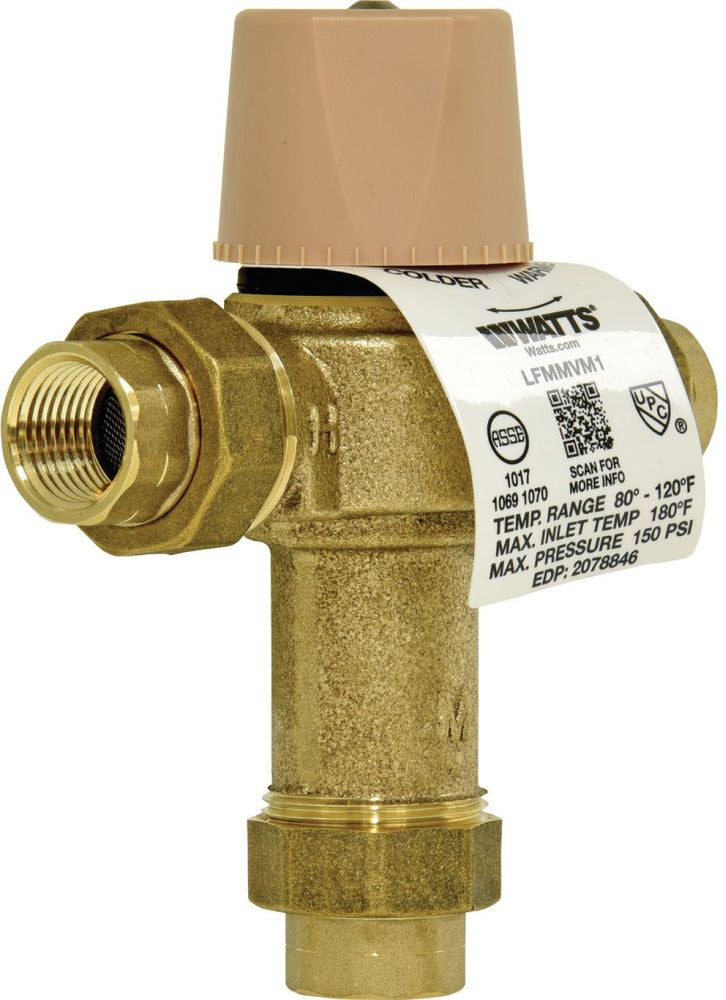

Watts LFMMVM1-UT Thermostatic Mixing Valve Lead Free 1/2 Inch

Product Description

The Watts LFMMVM1-UT is a thermostatic mixing valve that is lead-free and designed for various applications including residential, commercial, and institutional environments. This valve ensures the safe supply of tempered water to sinks, baths, and showers.

• Lead-free construction for safety
• Flow rate between 0.5 to 20 gallons per minute
• Pressure rating of 150 PSI

Product Highlights

This thermostatic mixing valve allows precise control of water temperature, ensuring comfort and safety in various applications.

Product Information

Standard Information

• Manufacturer: Watts
• Model: LFMMVM1-UT

Technical Specifications

• Type: Thermostatic
• Nominal Size: 1/2 Inch x 1/2 Inch
• End Connection: Female Threaded x Female Threaded
• End to End Distance: 4-7/8 Inch
• Base to Inlet Dimension: 3-3/16 Inch
• Body Material: Cast Copper Silicon Alloy
• Disc Material: Stainless Steel
• Flow Rate: 0.5 to 20 GPM
• Set Temperature Range: 105 Deg F
• Temperature Rating: 39 to 85 Deg F (Cold), 120 to 180 Deg F (Hot)
• Pressure Rating: 150 PSI
• Inclusions/Features: Copper Thermostat Assembly, Buna-N/EPDM O-Ring, Polysulfone Piston, Stainless Steel Spring
• Applicable Standard: CSA (Canada and US), ASSE 1017/1069/1070, NSF/ANSI/CAN 61G, IAPMO, CUPC
