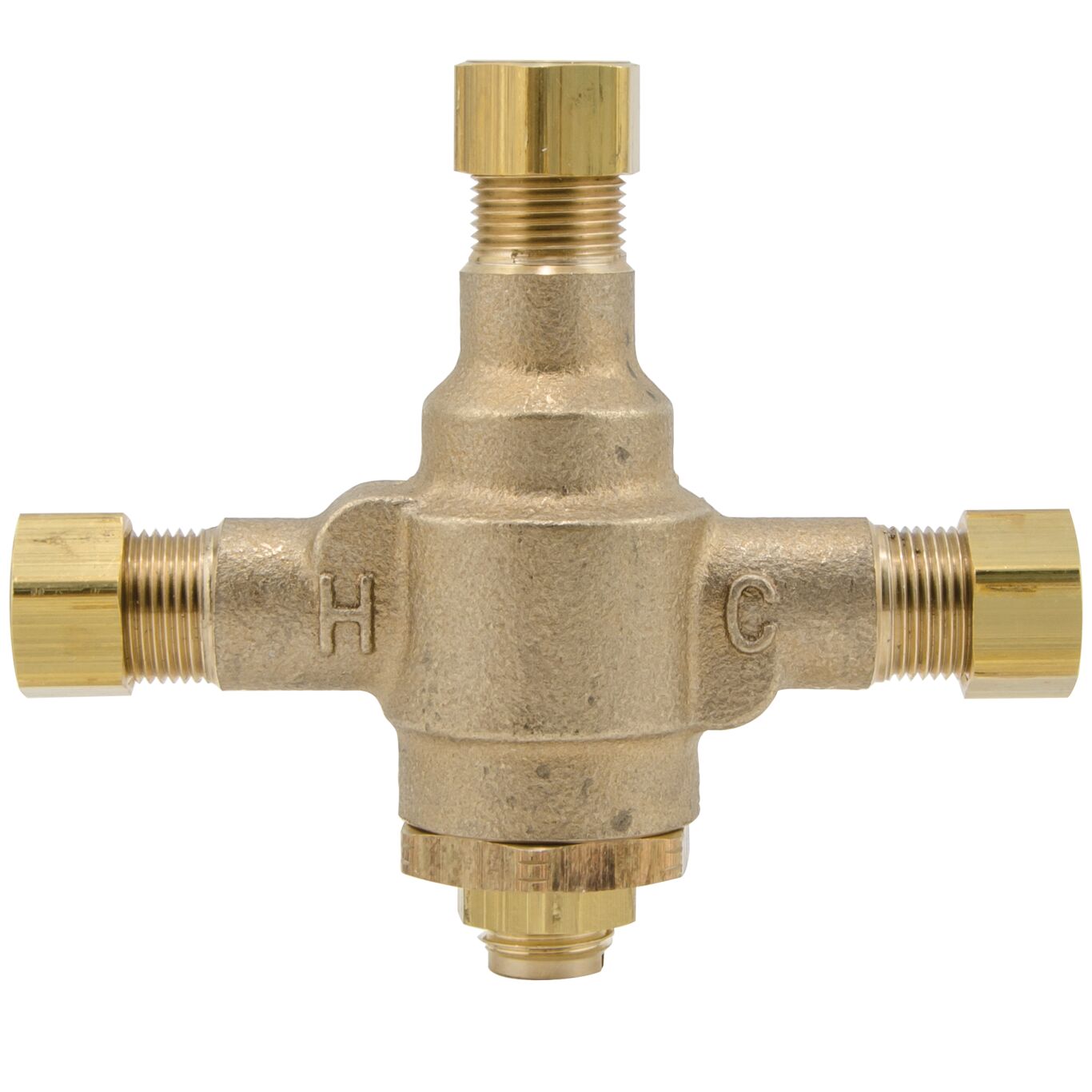

WATTS LFG48010 Part of the HydroGuard LFG480/LFE480 Series

Product Description

The WATTS LFG48010 is a lead-free under the counter mixing valve designed for lavatory applications. This valve allows for low flow control while ensuring the hot water temperature is safe and economical to use. It features an advanced thermal actuator that effectively senses and adjusts to fluctuations in outlet temperature caused by changes in water temperature and pressure.

• Lead-free brass body with a rough bronze finish
• 3/8 inch compression connections
• Minimum flow rate of 0.25 gallons per minute (1 liter per minute)

Product Highlights

The valve has an integral check to prevent cross flow and inlet screens that filter out debris. The temperature adjustment stem is easy to operate and includes a locking nut to avoid unauthorized adjustments. The product is set at a factory temperature of 105 degrees Fahrenheit (40.6 degrees Celsius) and complies with NSF/ANSI/CAN 61 standards.

Product Information

Standard Information

• Material: Lead-free brass
• Temperature Settings: Factory set at 105 degrees F (40.6 degrees C)

Technical Specifications

• Minimum Flow Rate: 0.25 gpm (1 lpm)
• Maximum Flow Rate: 2.5 gpm (9.5 lpm)
• Pressure Drop: 45 psi (310 kPa)
• Lead Content: Meets reduced Q test statistic criteria of 0.5 ppb
