Watts LFFBVS-3C 3/4 Brass Solder Ball Valve 3/4

Product Description

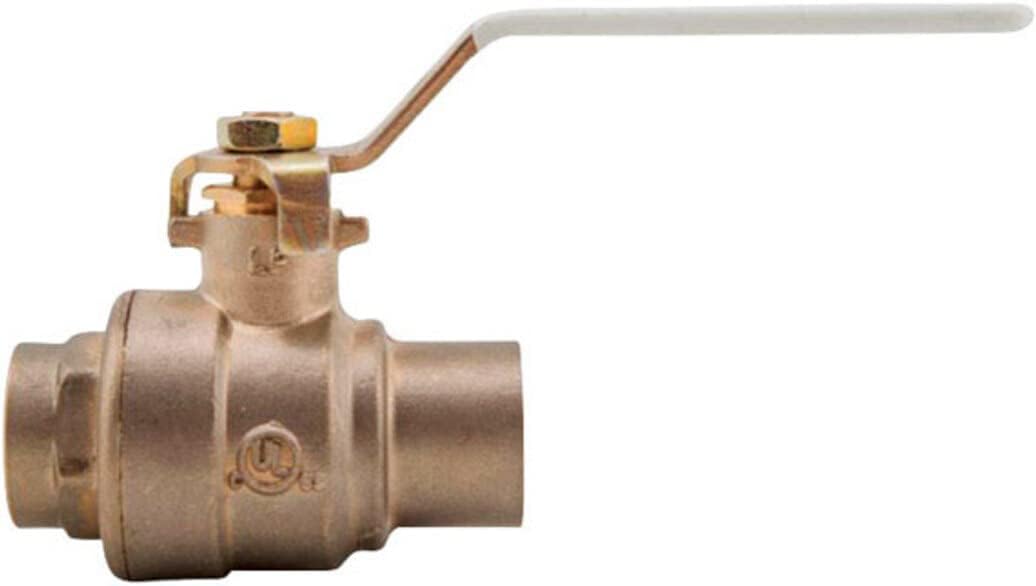

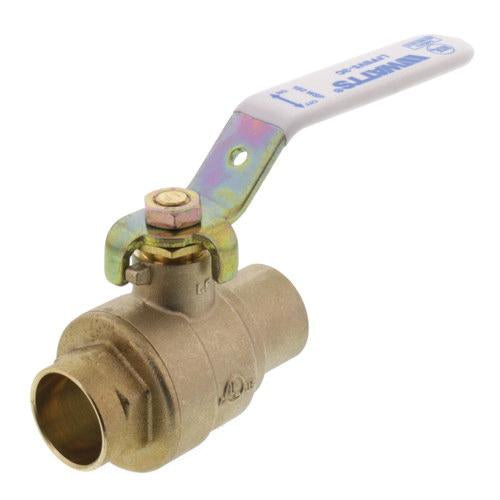

The WATTS LFFBVS-3C 3/4 ball valve is a 3/4 inch 2-piece full port lead free valve designed for commercial and industrial applications with liquids and gases. It features a lead free brass body with solder end connections, a bottom-loaded blowout-proof stem, and a virgin PTFE seat. The valve includes a chrome plated brass ball, lead free brass adapter, and a steel handle for control.

• Brass construction
• Solder inlet connection
• Sweat outlet connection

Product Highlights

UL and FM certified lead free brass ball valve with full port design.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: LFFBVS-3C 3/4

Technical Specifications

• Shape: Inline
• Valve Type: Ball Valve
• Exterior Finish: Brass
• Number of Ports: 2
• Specification Met: UL, FM
• Inlet Connection Type: Solder
• Outlet Connection Type: Sweat
• Part Number: 555111
• Model Number: LFFBVS-3C 3/4
• Manufacturer: Watts Water Technologies
• EAN: 0098268447804
• UPC: 098268447804
• Product Type: VALVE
• Actuation: No
• Assembled Dry: No
• Balance Stop Plate: No
• Ball Material: Chrome Plated Brass
• Body Material: Lead Free Copper Silicon Alloy Brass
• Buy American Act Compliant: NO
• Control Type: Lever Handle
• Inlet Connection Size: 3/4 IN
• Inlet Connection Size-Metric: 20 MM
• Lead Free: YES
• Maximum Temperature-Fahrenheit: 400
• Minimum Temperature - Celsius: -18.00
• Minimum Temperature-Fahrenheit: 0
• Outlet Connection Size: 3/4 IN
• Port Type: Full
• Seat Material: Virgin PTFE
• Series: LFFBV-3C
• Stem Packing Material: Virgin PTFE
• Stem Shaft Material: Brass
• Stem Type: Bottom Loaded Blowout Proof
• Thrust Washer Material: Virgin PTFE
• Construction: 2-piece
• WOG Rating: 600 PSI
• Nominal Size: 3/4 in
• Media: Water Oil and Gas
• Handle Material: Steel/Vinyl
