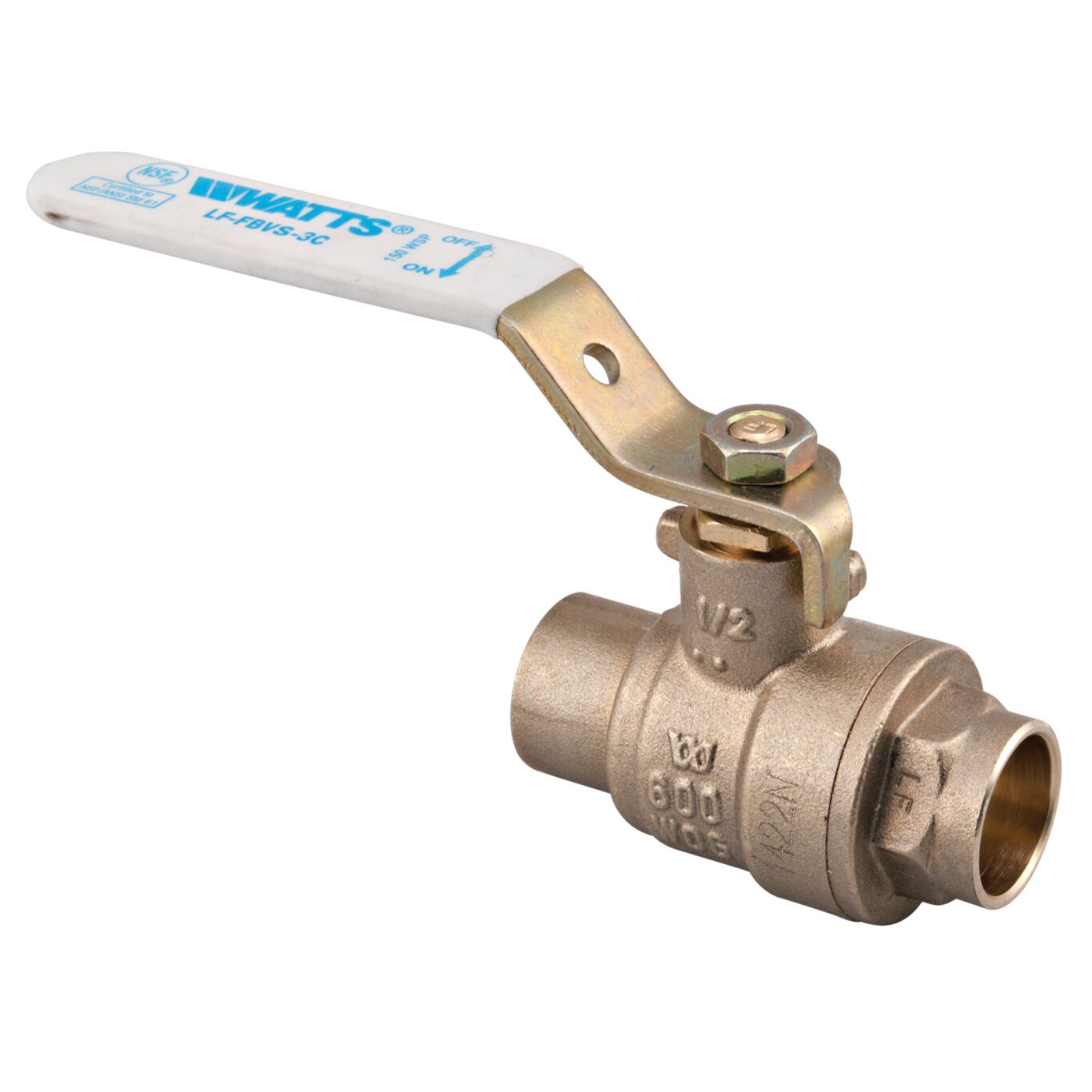

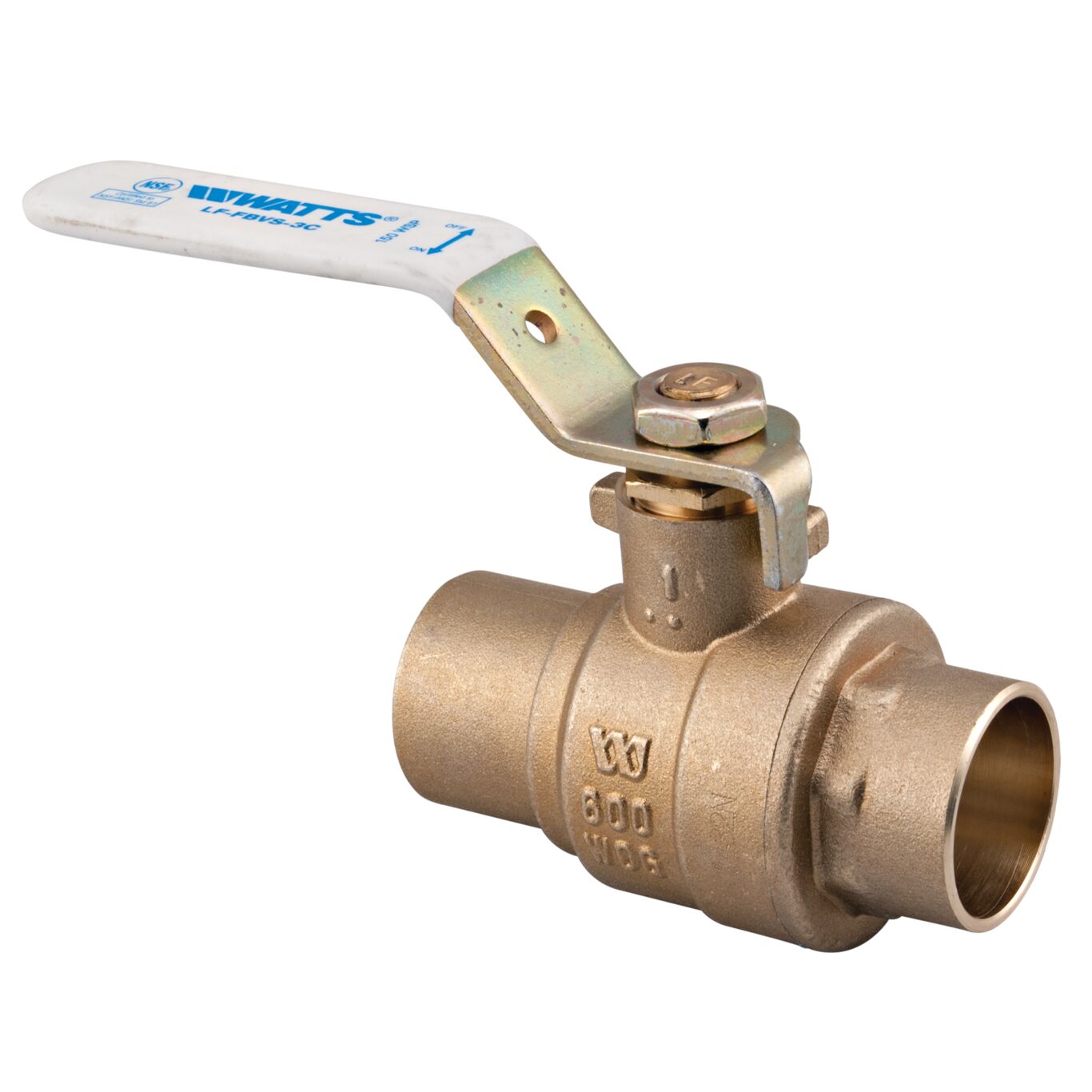

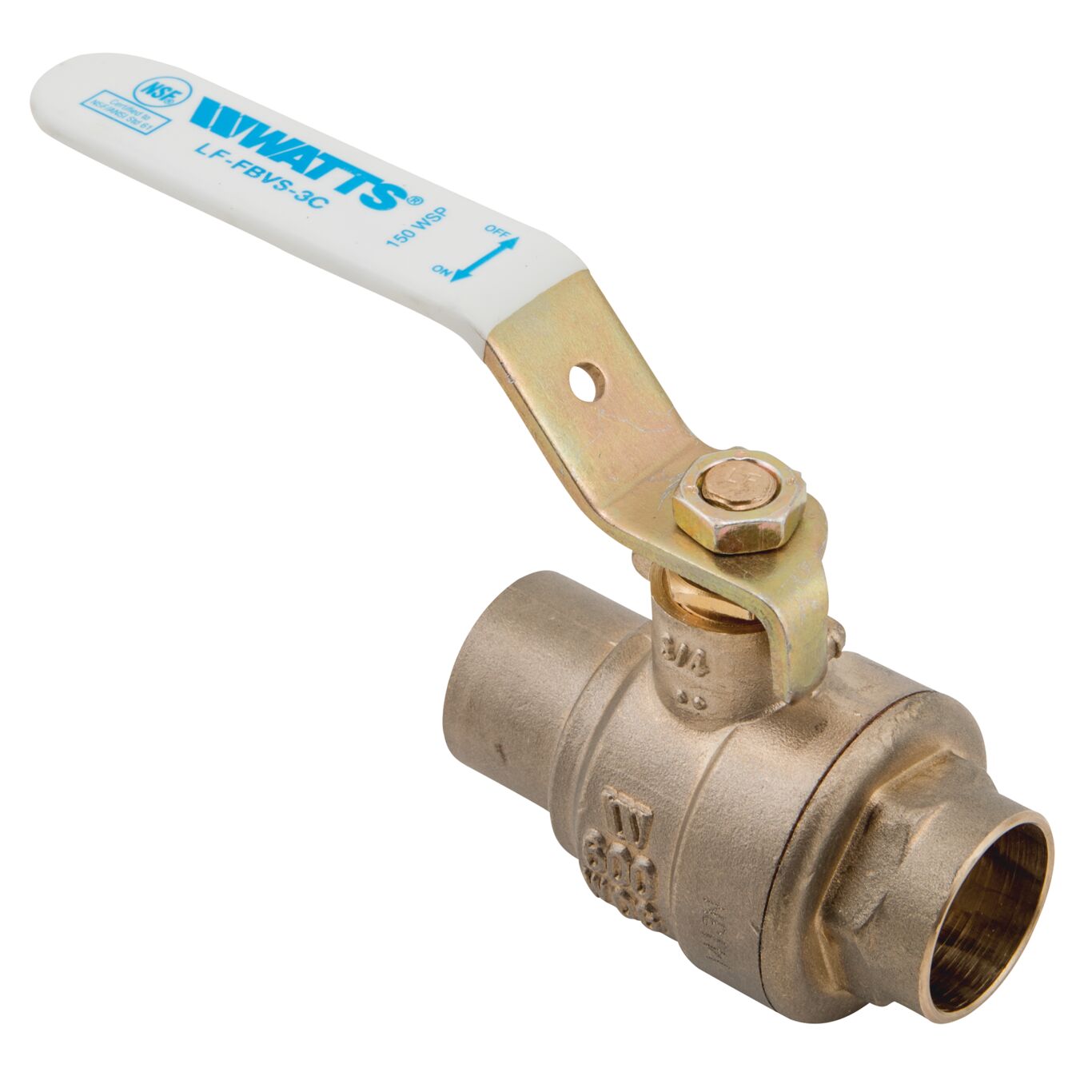

WATTS LFFBVS-3C 2-Piece Full Port Lead Free Brass Ball Valve

Product Description

The WATTS LFFBVS-3C is a 2-piece full port lead free brass ball valve suitable for various commercial and industrial uses involving liquids and gases. The design features a bottom-loaded blowout proof stem and adjustable stem packing gland for secure performance. This valve is ideal for water, oil, and gas systems and is available in sizes ranging from one quarter inch to four inches.

• Constructed with lead-free forged copper silicon alloy
• Includes virgin PTFE seats for enhanced sealing
• Machined chrome-plated lead-free brass ball

Product Highlights

This ball valve provides reliable operation and is certified to NSF/ANSI standards for quality assurance.

Product Information

Standard Information

• Brand: Watts
• UPC: 982684478422

Technical Specifications

• Material: Lead Free Copper Silicon Alloy Brass
• Inlet Connection Type: Sweat
• Outlet Connection Type: Sweat
• Number of Ports: 2
• Specification Met: NSF
• Connection Size: 1-1/2 inches
• Maximum Temperature: 400°F
• Minimum Temperature: 0°F
• Series: LFFBVS-3C
• Type: Full Port, Lead Free
• Media: Water, Oil, and Gas
• Seat: Virgin PTFE
• Body Material: Brass
• Ball Material: Chrome Plated Lead Free Brass
• Stem: Brass
• Construction: 2-Piece
• Packing: Virgin PTFE
• Actuation/Operator: Standard Lever Handle
• Temperature Rating: -40 to 400°F
• Nominal Size: 3/4 inches
