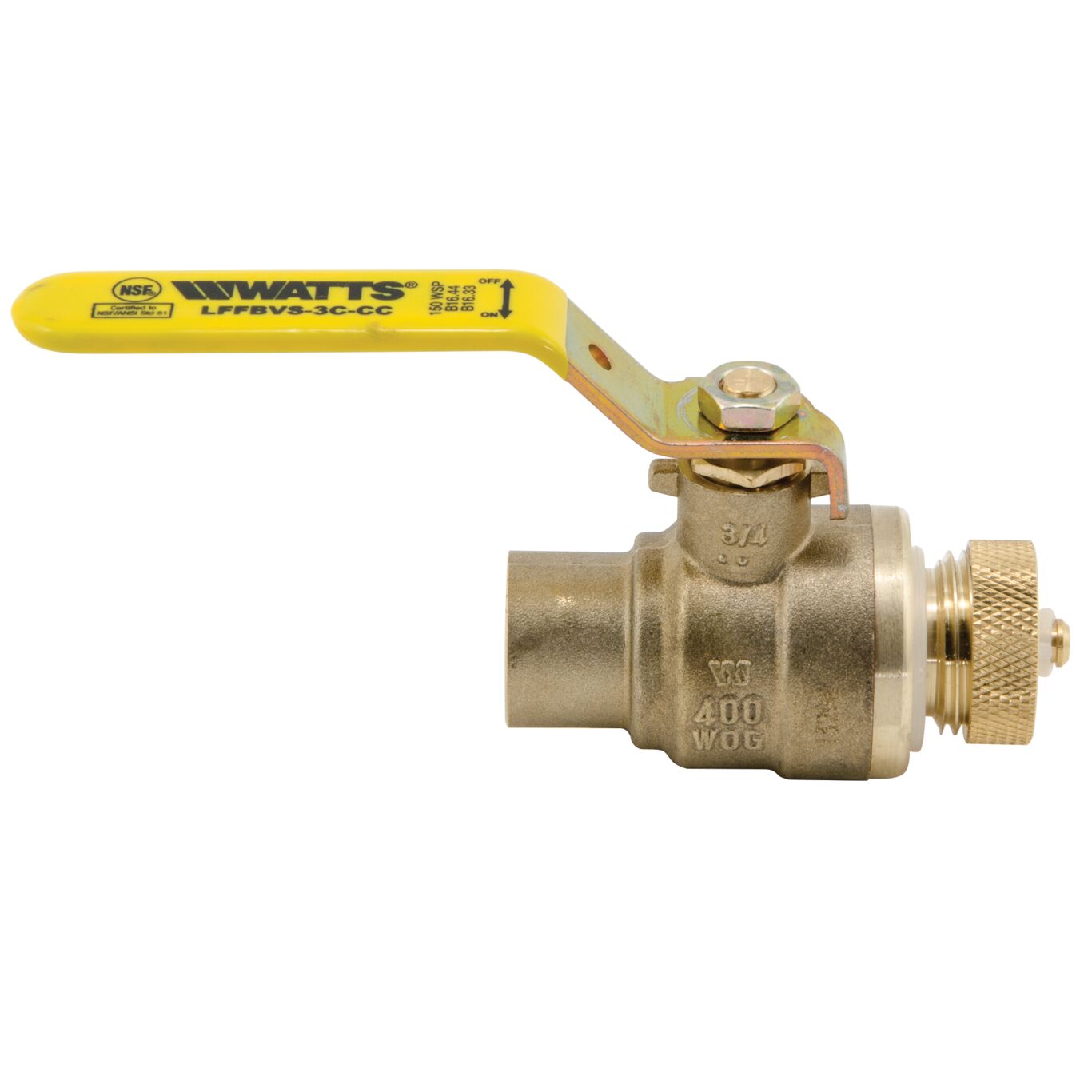

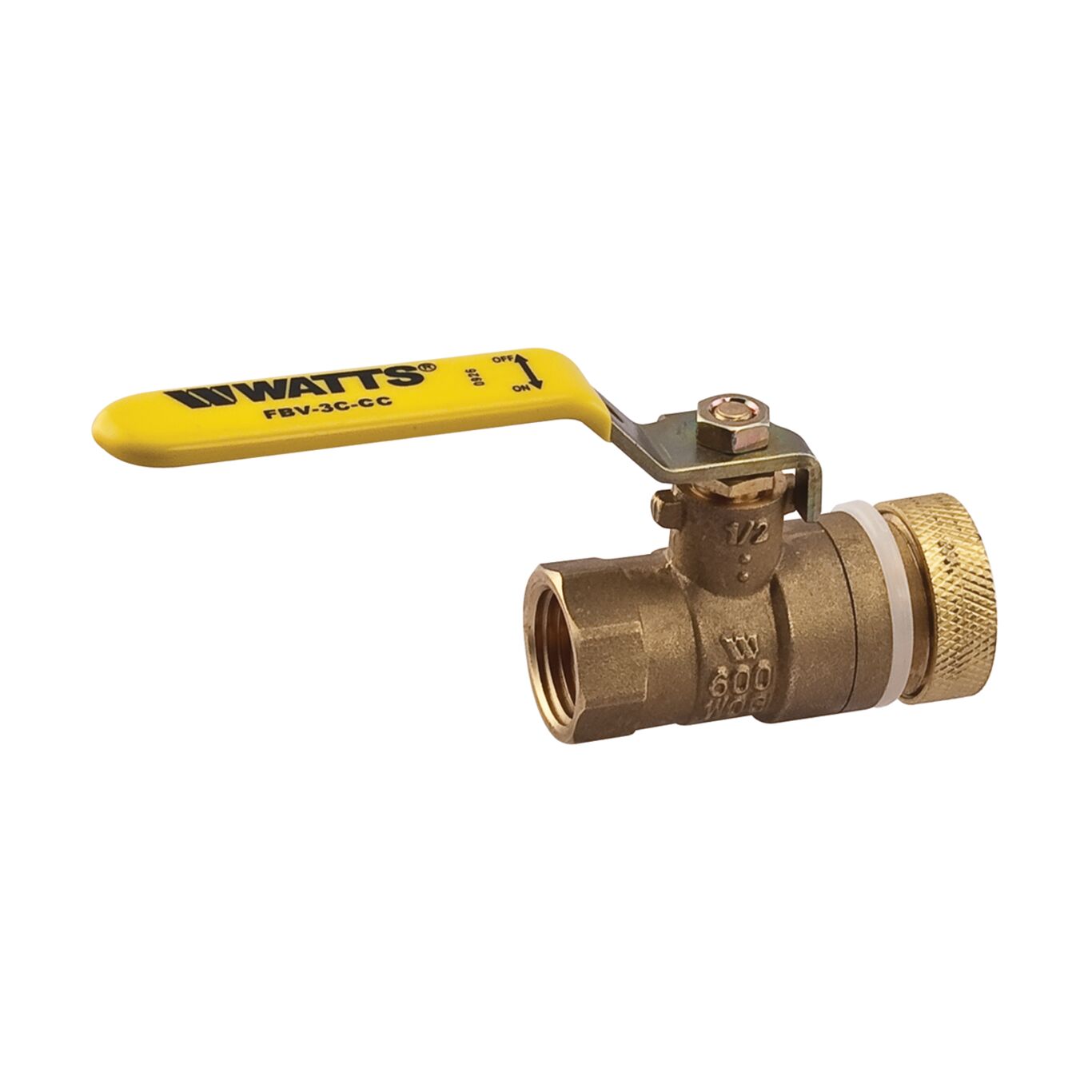

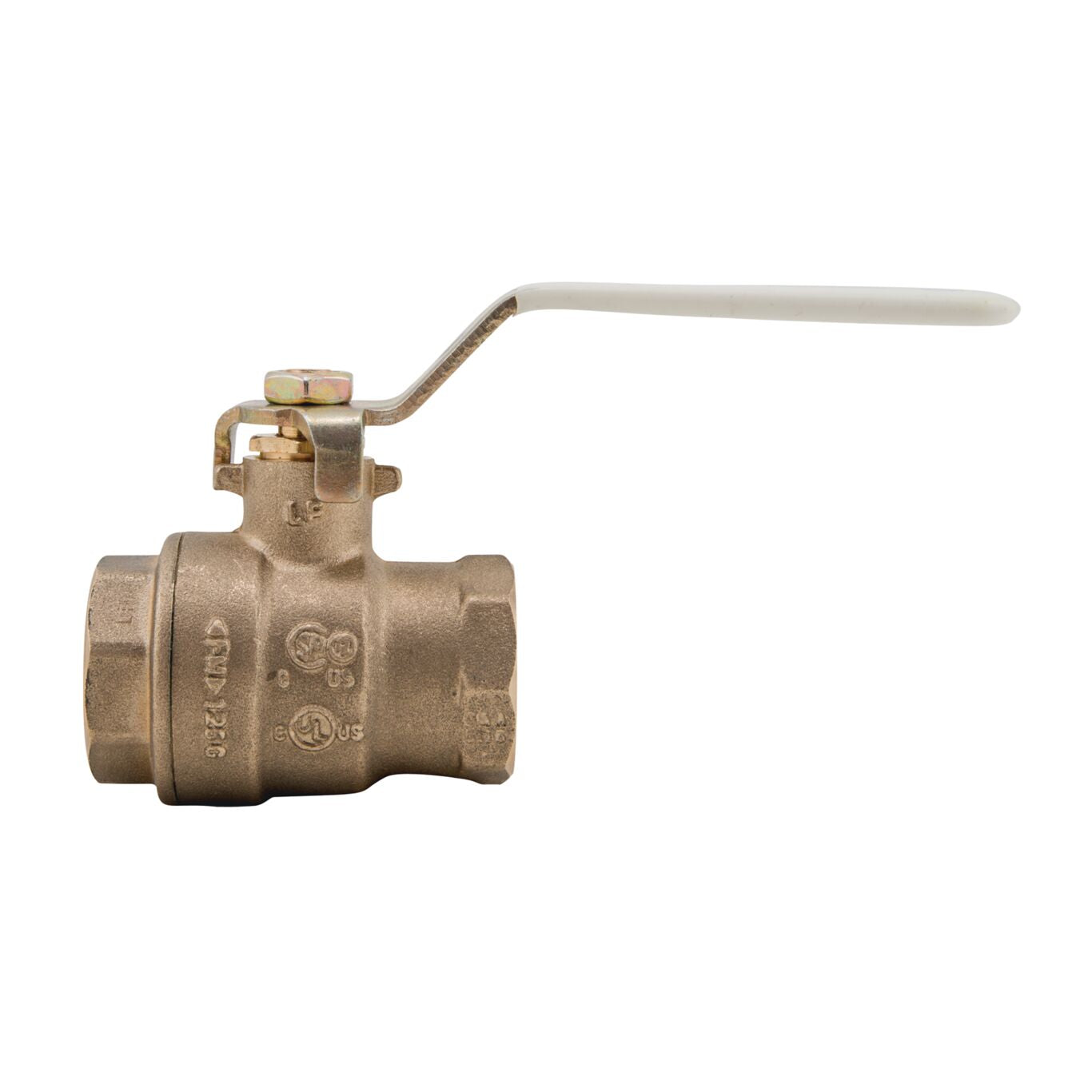

Watts LFFBV-3C 2-Piece, Full Port, Lead Free Brass Ball Valves, Sizes: 1/4 – 4 IN

Product Description

The Watts LFFBV-3C is a two-piece, full port, lead-free brass ball valve designed for commercial and industrial use. It effectively handles a wide range of liquids and gases. This valve features a fluorocarbon elastomer stem O-ring that helps to prevent leaks, ensuring reliability in operation. Available in sizes ranging from one-quarter inch to four inches, it provides flexibility for various applications.

• Lead-Free construction with a forged copper silicon alloy body.
• Chrome-plated lead-free brass ball for durability.
• Certified to NSF/ANSI standard 61/8.

Product Highlights

This product is suitable for commercial and industrial wash down applications, making it a versatile choice for HVAC, plumbing, and other areas requiring dependable valve performance.

Product Information

Standard Information

• Brand: Watts
• Part Number: LFFBV-3C

Technical Specifications

• Application: Commercial and industrial wash down applications
• Connection Size: 3/4 in (20mm)
• Pressure Rating: 400psi (28 bar) WOG, non-shock
• Material: Lead Free brass
• Seats: Virgin PTFE
• Stem: Bottom loaded blowout-proof
• Ball: Chrome plated brass
• Body Material: Lead Free Copper Silicon Alloy
• Control Type: Lever Handle
• Lead Free: YES
• Maximum Temperature: 400°F
• Minimum Temperature: 0°F
• Outlet Connection Size: 2 IN
• Valve Style: 2-piece
• WOG Rating: 600 PSI
