Product Description

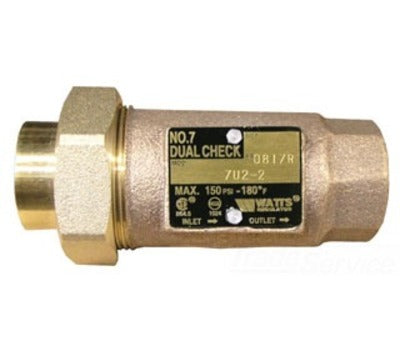

The WATTS LF7 is a 3/8 inch female union x female copper silicon dual check valve. This lead-free valve prevents the reverse flow of polluted water into the drinking water supply. It features a cast copper silicon alloy body, two plastic replaceable check valves, and stainless steel springs. The LF7 is designed for residential water systems and can handle continuous pressure applications.
- Installed downstream of the water meter
- Can be set up in vertical or horizontal position
- Meets ASSE 1024 and CSAus B64.5 standards
Product Highlights
This dual check valve is essential for safeguarding drinking water from contamination. It is suitable for various piping configurations.
Product Information
Standard Information
-
Brand: WATTS
-
Model Number: LF7
Technical Specifications
-
Material: Cast Copper Silicon Alloy
-
Valve Type: Dual Check Valve
-
Application: Residential, Light Commercial
-
Connection Type: FNPT x FPT
-
Length: 2.875 inches
-
Height: 1.25 inches
-
Weight: 0.694 pounds
-
Maximum Pressure Rating: 150 PSI
-
Maximum Temperature Rating: +180 degrees F
-
Minimum Temperature Rating: +33 degrees F
