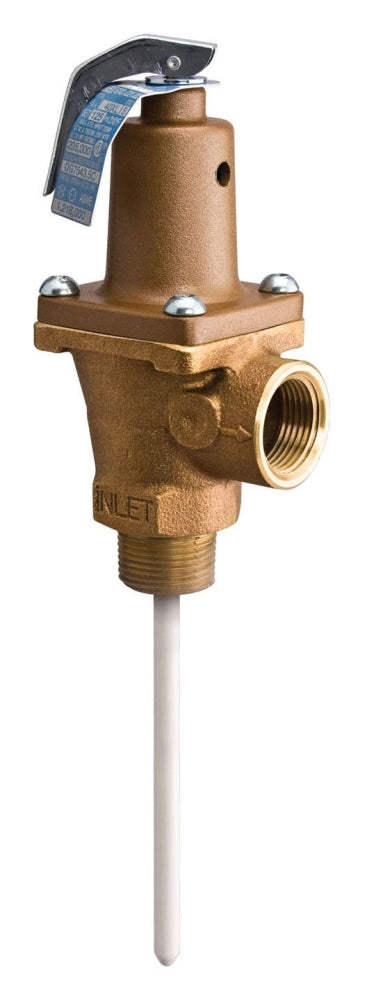

Watts LF40XL Temperature and Pressure Relief Valve 150 PSI 210 Deg F

Product Description

The Watts LF40XL is a temperature and pressure relief valve designed for commercial water heater applications. It features a lead-free brass construction, making it suitable for hot water supply tanks and heaters. This valve is self-closing and automatically reseats.

• Inlet and outlet sizes are three-quarters of an inch.
• Temperature rating of two hundred ten degrees Fahrenheit.
• Set pressure range up to one hundred fifty PSI.

Product Highlights

This valve protects against excessive pressure and temperature hazards, making it essential for safety in water heating systems.

Product Information

Standard Information

• Brand: Watts
• Type: Temperature and Pressure Relief Valve

Technical Specifications

• Body Material: Brass
• Inlet Size: 3/4 Inch
• Outlet Size: 3/4 Inch
• Set Pressure Range: 150 PSI
• Temperature Rating: 210 Deg F
• End Connection: Male Threaded x Female Threaded
• Application: Commercial Water Heater
• Applicable Standards: ANSI Z21.22, ASME, CSA (Canada and US)
• Overall Dimension: 2-5/8 Inch Width x 5-5/8 Inch Height
• Thermostat Size: 5 Inch Length
