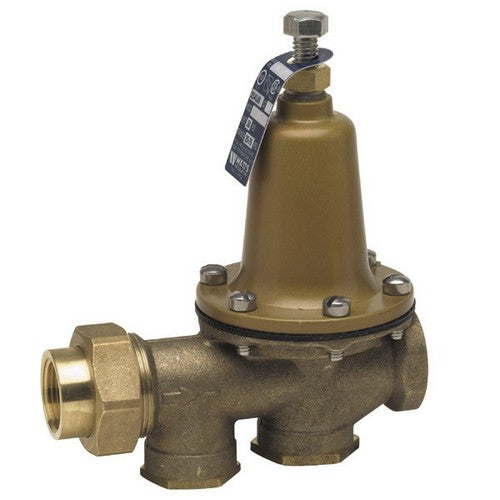

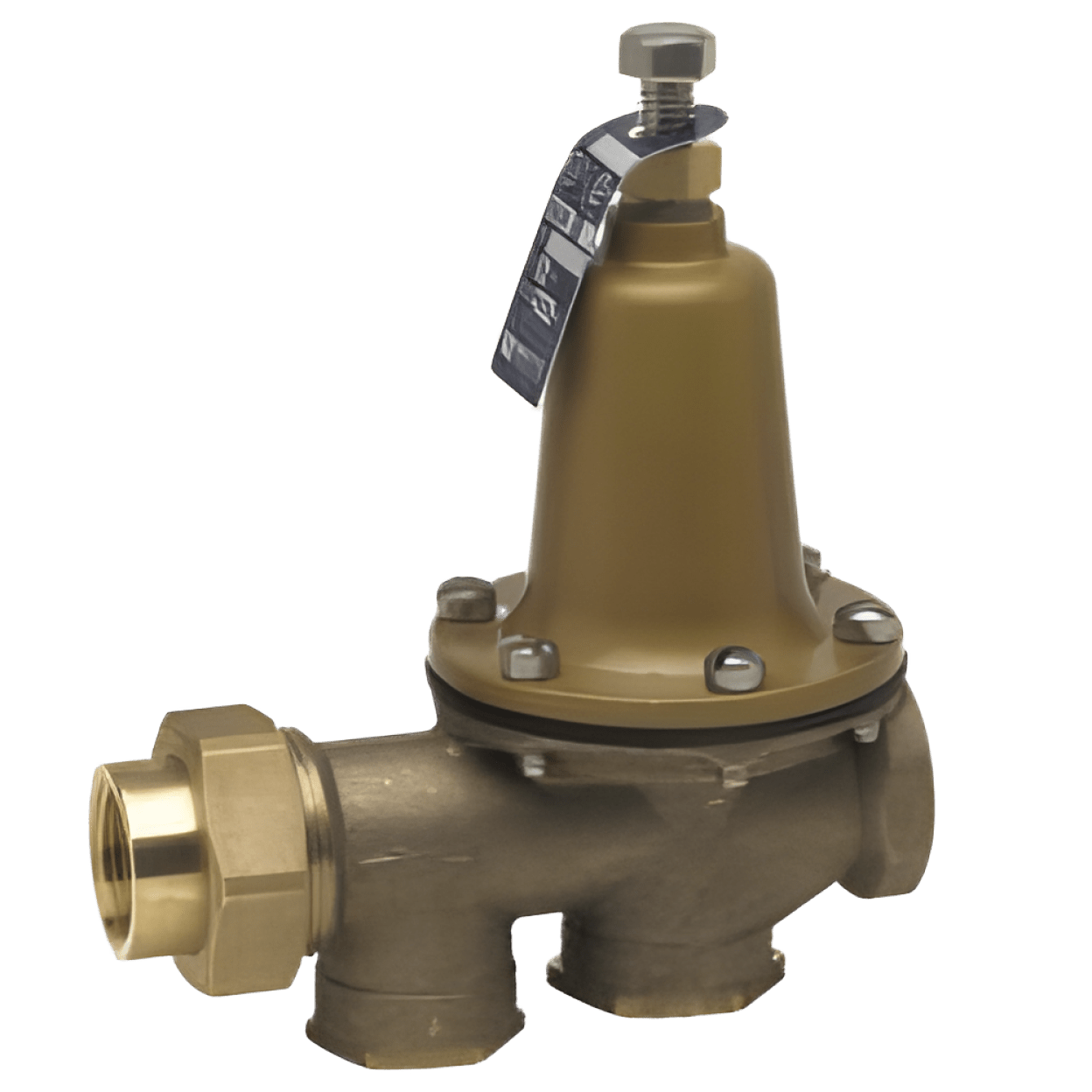

Watts LF25AUBN Pressure Reducing Valve, 2 inch x 2 inch, FNPT Union x FNPT

Product Description

The Watts LF25AUBN is a brass pressure reducing valve designed to protect plumbing systems by regulating incoming water pressure. With a nominal size of two inches, this valve operates with a flow rate between ten and one hundred gallons per minute. It features a union inlet connection and an FNPT outlet connection. The valve can maintain outlet pressure ranging from twenty-five to seventy-five psi, ensuring stability and safety in various applications.

• Made from lead-free copper silicon alloy
• Integral stainless steel strainer
• High temperature resistant diaphragm

Product Highlights

This valve is ideal for both commercial and residential applications. It effectively reduces water pressure to protect pipes and fixtures while minimizing water waste.

Product Information

Standard Information

• Brand: Watts Water Technologies
• Part Number: LF25AUBN

Technical Specifications

• Nominal Size: 2 inch
• Body Material: Brass
• Outlet Pressure: 25 to 75 psi
• Inlet Connection: FNPT Union
• Temperature Range: 0.5 to 71 Deg C
• Standards: CSA Certified, ASSE 1003, MIL-V-18146B Type I, IAPMO Approved, ANSI A112.26.2
• Seat: Replaceable Stainless Steel
