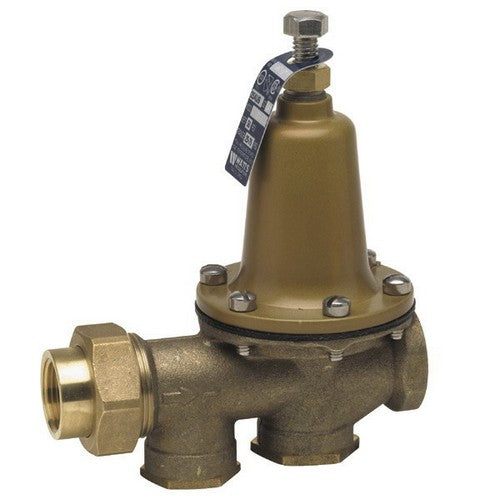

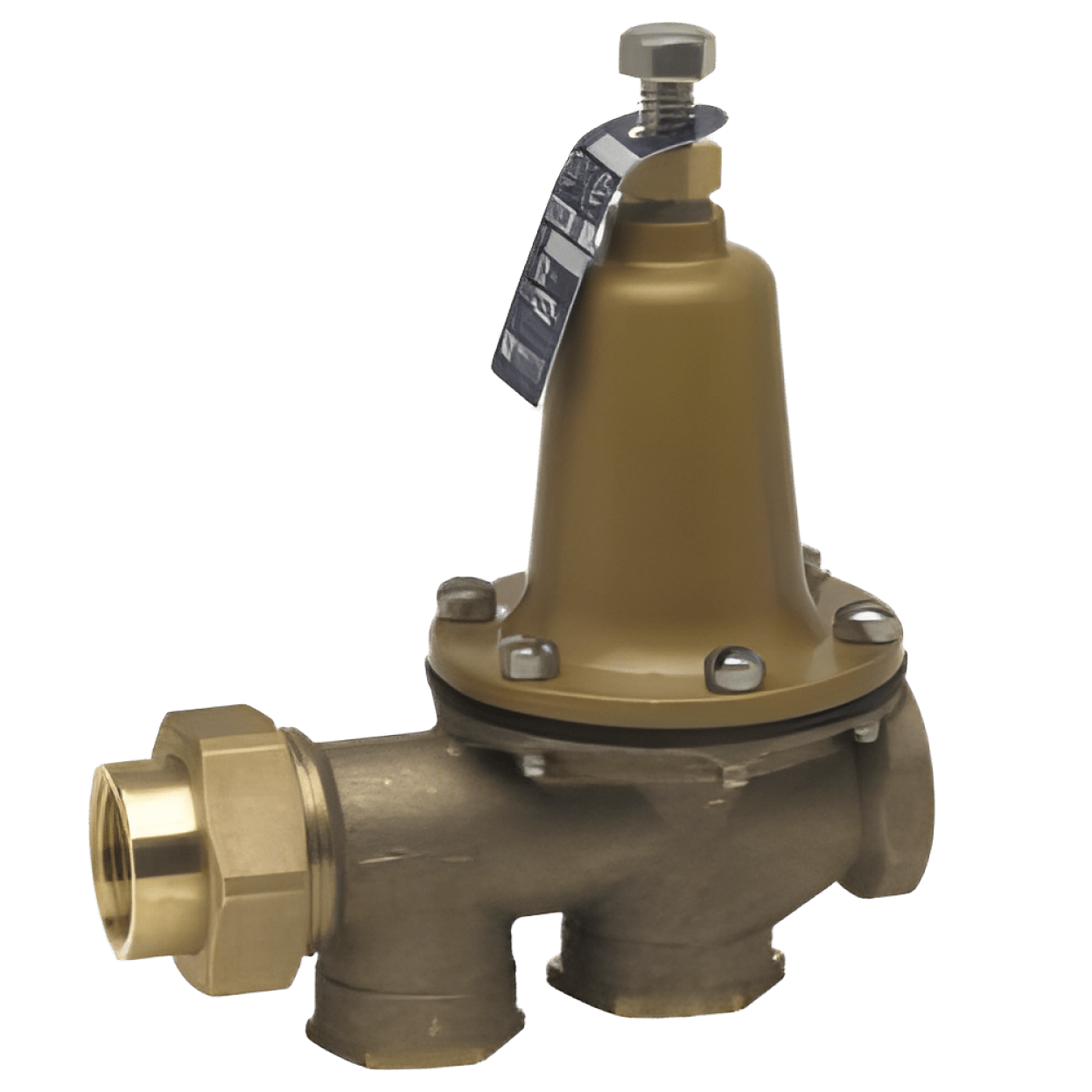

Watts LF25AUBH Brass Pressure Reducing Valve 1 inch x 1 inch FNPT Union x FNPT

Product Description

The Watts LF25AUBH is a brass pressure reducing valve designed to control water pressure in plumbing systems. This valve features a nominal size of one inch, suitable for flow rates from ten to one hundred gallons per minute. It maintains outlet pressure between twenty-five to seventy-five psi and connects via FNPT union inlet and outlet connections.

• Adjustable outlet pressure range of twenty-five to seventy-five psi.
• Constructed with brass and engineered polymer seat for durability.
• Certifications include CSA, ASSE 1003, and IAPMO.

Product Highlights

This valve prevents water hammer and protects plumbing fixtures, ensuring system efficiency and longevity.

Product Information

Standard Information

• Brand: Watts Water Technologies
• MPN: LF25AUBH

Technical Specifications

• Nominal Size: 1 inch
• Inlet Connection: FNPT Union
• Outlet Pressure: 25 to 75 psi
• Temperature Range: 0.5 to 71 Deg C
• Body Material: Brass
• Seat: Replaceable Engineered Polymer
• Standards: CSA Certified, ASSE 1003, MIL-V-18146B Type I, IAPMO Approved, ANSI A112.26.2
