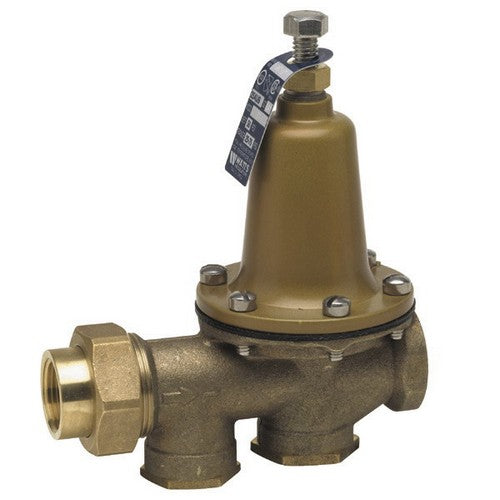

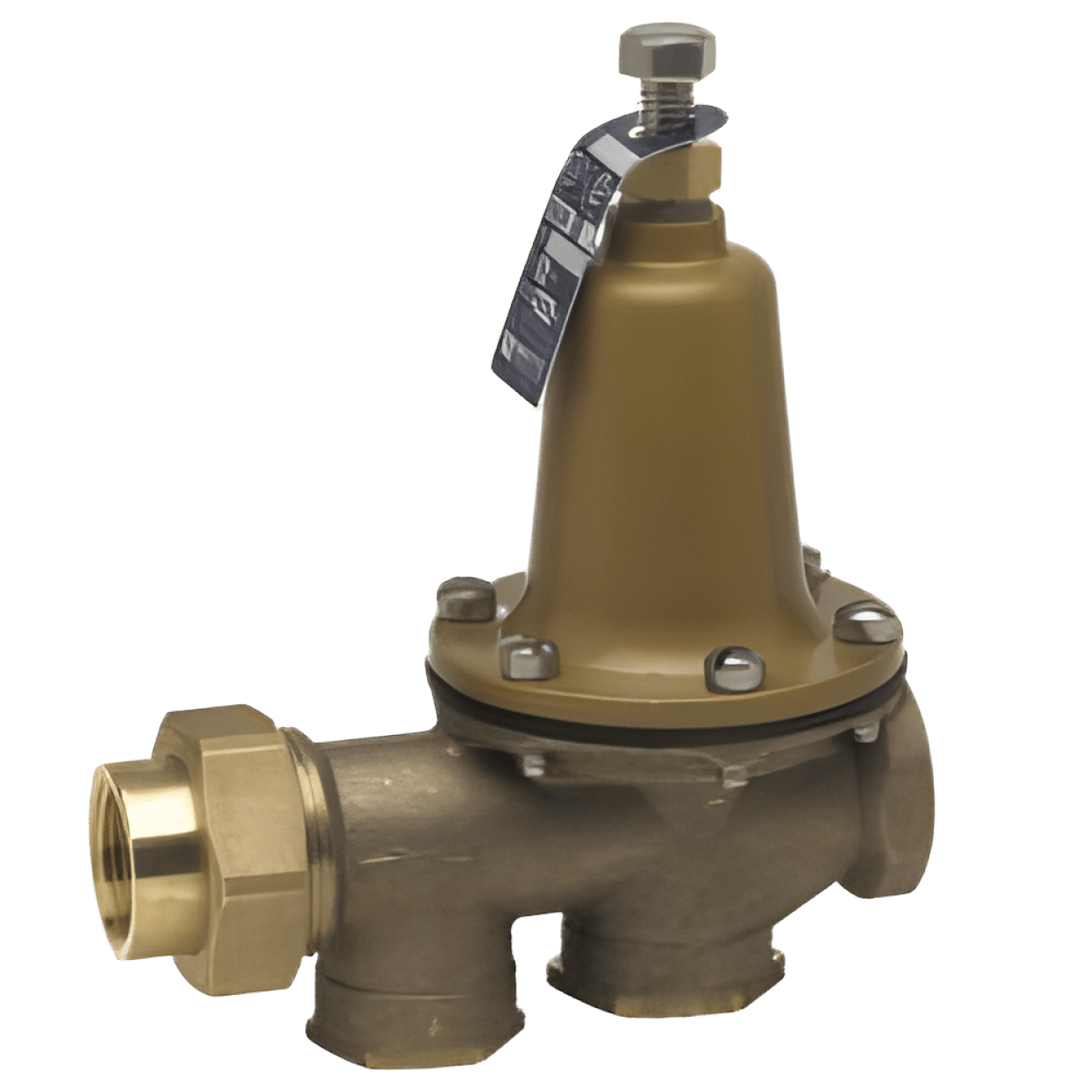

Watts LF25AUBF Brass Pressure Reducing Valve, 3/4 inch x 3/4 inch, FNPT Union x FNPT

Product Description

The Watts LF25AUBF is a brass pressure reducing valve designed for managing water pressure in plumbing systems. This valve is ideal for both commercial and residential applications. It features a nominal size of three-quarters of an inch and operates effectively within a flow rate range of ten to one hundred gallons per minute.

• Inlet connection: FNPT Union
• Outlet pressure range: 25 to 75 psi
• Temperature rating: 0.5 to 71 Deg C

Product Highlights

This pressure reducing valve ensures proper water flow and protects plumbing equipment from excessive pressure.

Product Information

Standard Information

• Mfg.Name: Watts Water Technologies
• Part #: WLF25AUBF

Technical Specifications

• Series: LF25AUB
• Nominal Size: 3/4 inch
• Body Material: Brass
• Outlet Pressure: 25 to 75 psi
• Inlet Connection: FNPT Union
• Seat: Replaceable Engineered Polymer
• Temperature Range: 0.5 to 71 Deg C
• Standards: CSA Certified, ASSE 1003, IAPMO Approved
