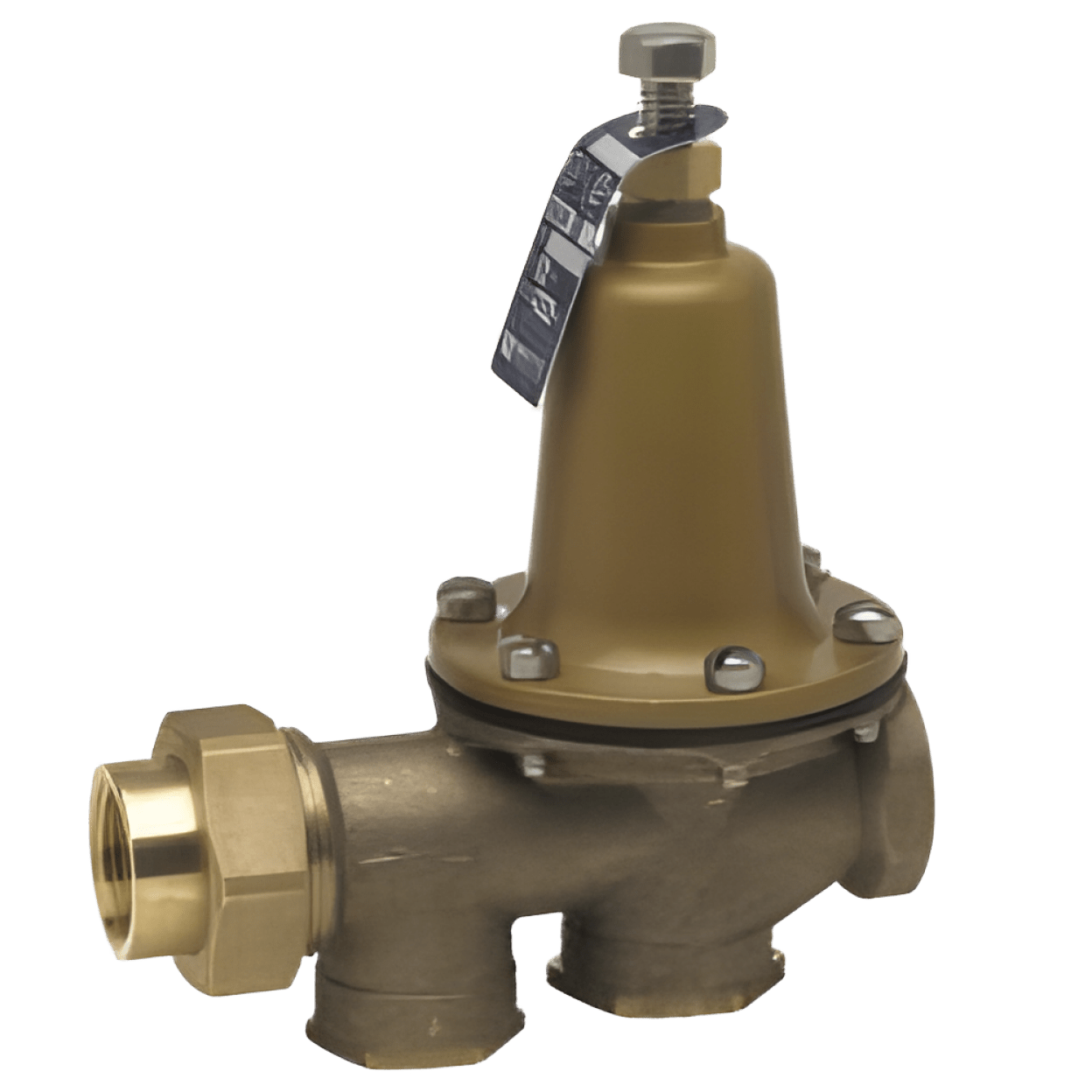

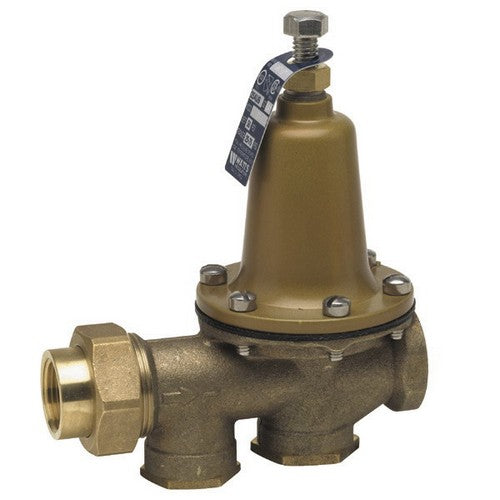

Watts LF25AUBD Brass Pressure Reducing Valve, 1/2 inch x 1/2 inch, FNPT Union x FNPT

Product Description

The Watts LF25AUBD is a brass pressure reducing valve designed for water pressure regulation. This valve is part of the LF25AUB series and features a nominal size of one-half inch. It manages water flow rates from ten to one hundred gallons per minute and ensures optimal outlet pressure ranging from twenty-five to seventy-five psi. Constructed from robust materials, it includes a union inlet connection and an FNPT outlet connection.

• Lead Free copper silicon alloy construction
• Integral stainless steel strainer included
• Temperature rating from zero-point-five to seventy-one degrees Celsius

Product Highlights

The LF25AUBD valve is used in both commercial and residential applications. It protects plumbing system components by controlling incoming water pressure and helps in conserving water.

Product Information

Standard Information

• Series: LF25AUB
• Nominal Size: 1/2 inch

Technical Specifications

• Outlet Pressure: 25 to 75 psi
• Body Material: Brass
• Seat: Replaceable Engineered Polymer
• Temperature Range: 0.5 to 71 Deg C
• Inlet Connection: FNPT Union
• Standards: CSA Certified, ASSE 1003, MIL-V-18146B Type I, IAPMO Approved, ANSI A112.26.2
