WATTS LF009M3-QT-FS 3/4

Product Description

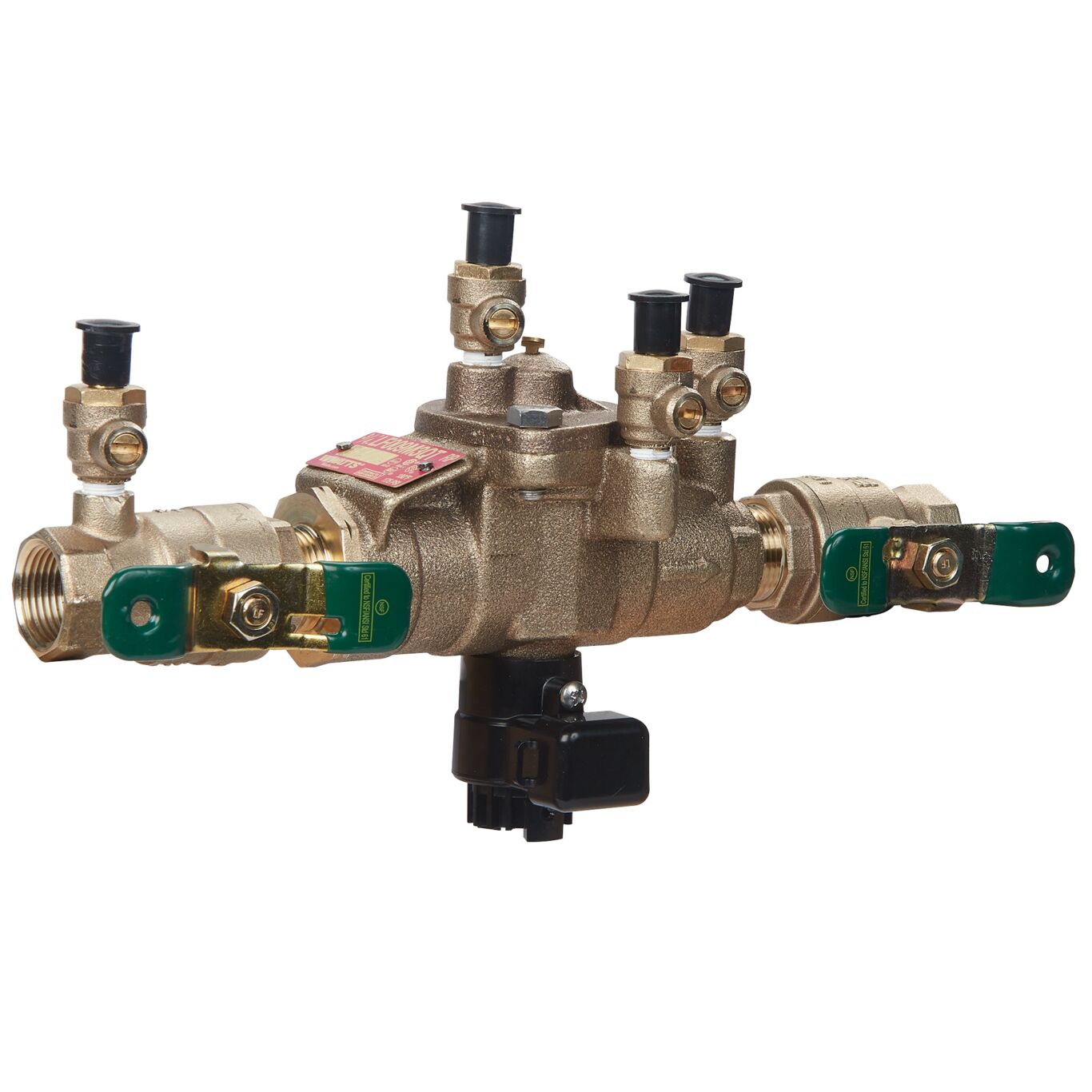

The WATTS LF009M3-QT-FS 3/4 is a lead-free copper silicon alloy reduced pressure zone backflow preventer assembly. This unit is effective in stopping polluted water from contaminating the potable water supply caused by backsiphonage or backpressure. It complies with national plumbing codes and water authority guidelines.

• Compact design for simple maintenance with a single access cover.
• Includes flood sensor with SentryPlus Alert technology for monitoring excessive water discharges.
• Equipped with quarter turn ball valve shutoffs for easy operation.

Product Highlights

This backflow preventer is ideal for applications with continuous pressure piping and at cross-connections that pose health risks. The design features two independent check valves, captured springs, and replaceable check seats. The internal relief valve minimizes space needs.

Product Information

Standard Information

• Brand: WATTS
• MPN: LF009M3-QT-FS3/4

Technical Specifications

• Body Material: Lead Free Copper Silicon Alloy
• Inlet Connection Size: 3/4 IN
• Outlet Connection Size: 3/4 IN
• Maximum Temperature: 180°F
• Maximum Working Pressure: 175 PSI
• Test Cocks: Screwdriver slotted
• Lead Free: Yes
• Protection Type: Backsiphonage and Backpressure
