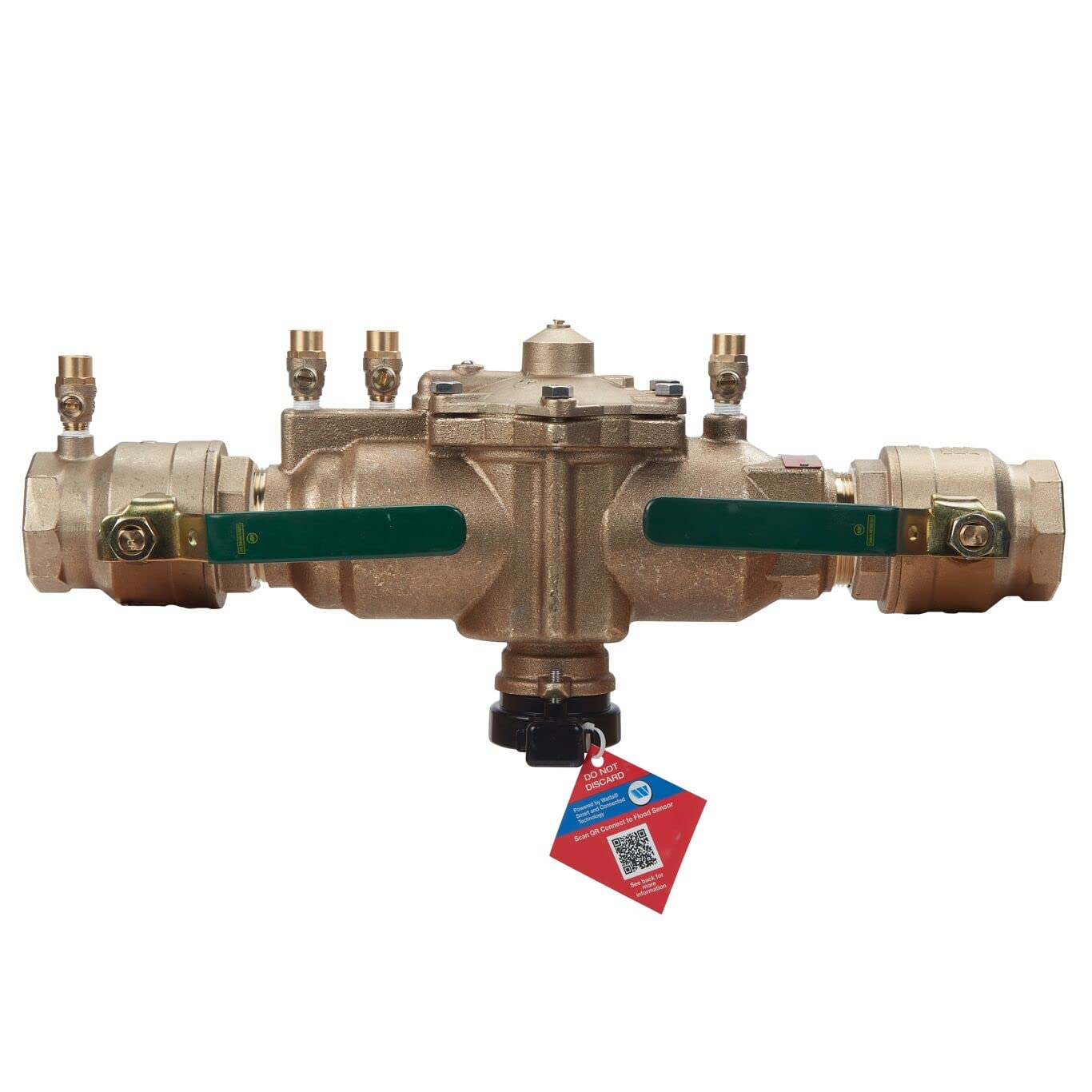

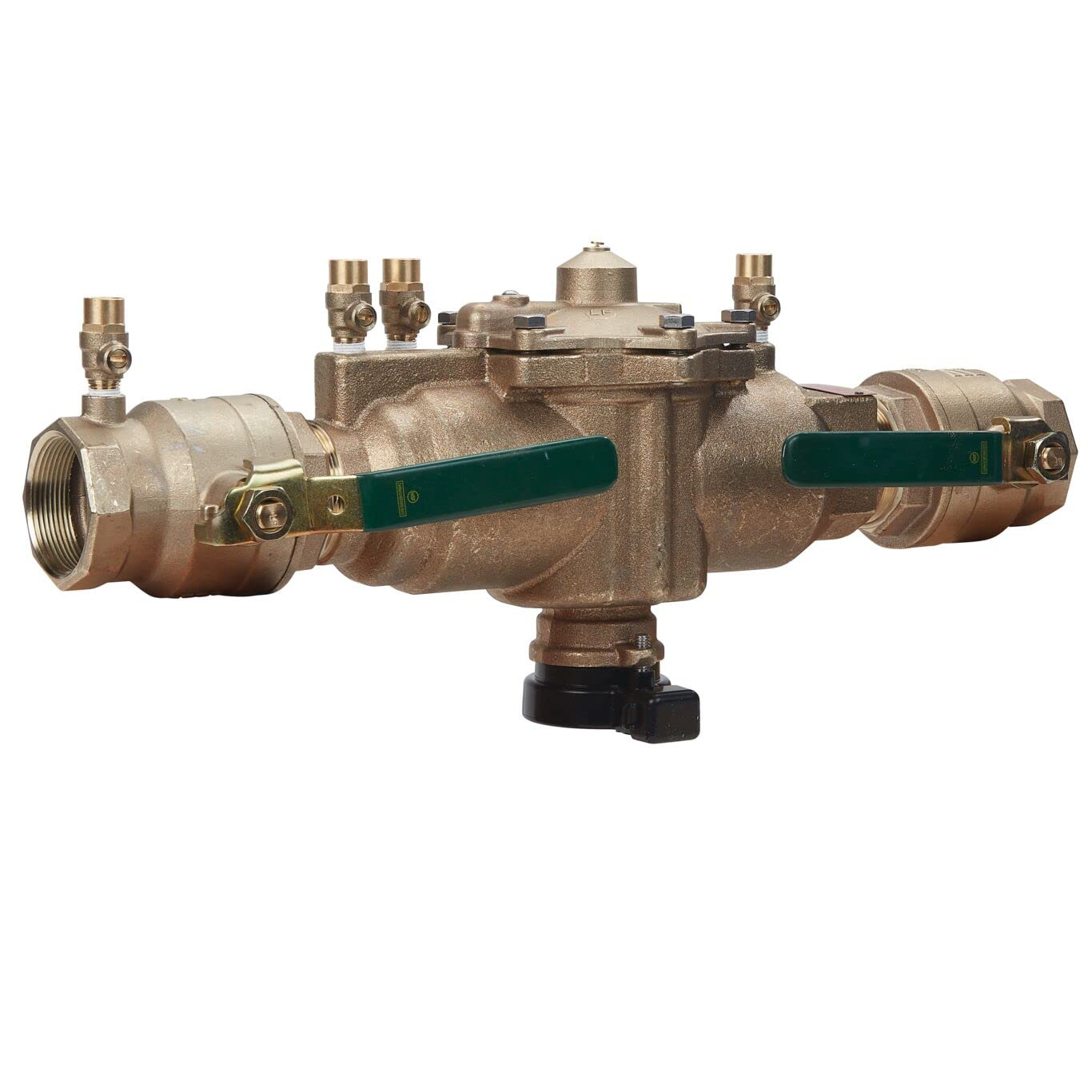

Watts LF009M2-QT-FS Reduced Pressure Zone Backflow Preventer Assembly 2 Inch

Product Description

The Watts LF009M2-QT-FS Reduced Pressure Zone Backflow Preventer Assembly provides mechanical protection against cross-connection hazards. Designed to prevent the reverse flow of polluted water from entering the potable water supply due to back-siphonage or backpressure. Features a bronze strainer, NPT connections, quarter turn ball valve shutoffs with tee handles and screwdriver-slotted top-mounted test cocks.

• Provides mechanical protection against cross-connection hazards.
• Prevents reverse flow of polluted water from entering the potable water supply.
• Includes an integrated flood sensor compatible with SentryPlus Alert technology.

Product Highlights

This assembly is constructed with a lead-free copper silicon alloy body, ensuring long-lasting performance and compliance with industry standards. Equipped with replaceable check seats with an internal relief valve for reduced space requirements.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: LF009M2-QT-FS
• Country of Origin: United States

Technical Specifications

• Material: Bronze
• Valve Type: Pressure Relief Valve
• Exterior Finish: Bronze
• Inlet Connection Size: 2 Inches
• Inlet Connection Type: National Pipe Tapered
• Outlet Connection Size: 2 Inches
• Outlet Connection Type: FNPT
• Maximum Operating Pressure: 175 Pound per Square Inch
• Brand: Watts
• Manufacturer: Watts
• Model / MPN: LF009M2-QT-FS
• Number of Items: 1.0
• Product Type: VALVE
• ArmorTek Technology: No
• Backflow Preventer Type: Reduced Pressure Zone Assembly
• Body Finish: Cast Copper Silicon Alloy
• Body Material: Lead Free Copper Silicon Alloy
• Body Pattern: Inline
• Buy American Act Compliant: YES
• Bypass: No
• Bypass Size: Does Not Apply To Product
• Cap And Tether: No
• Disc Material: Silicone
• Elbow Fitting: No
• Hazard Protection Level: Health Hazard
• Hot And Harsh Water: No
• Hydrant Connection: No
• Inlet Thread Type: NPT
• Lead Free: YES
• Maximum Temperature-Fahrenheit: 180
• Maximum Working Pressure-BAR: 12.00
• Minimum Temperature - Celsius: 0.50
• Minimum Temperature-Fahrenheit: 33
• Outlet Thread Type: NPT
• Part Number: 88004115
• Polymer Coating: No
• Pressure Operation: Continuous
• Protection Type: Backpressure and Backsiphonage
• Seat Material: Engineered Plastic
• Series: LF009
• Strainer: No
• Technologies: Flood Detection
• Shutoff: Quarter Turn Ball Valve
• Temp. Range: 33°F to 180°F
• Max. Working Pressure: 175 psi
• Inlet Shutoff Valve Type: Quarter Turn Ball Valve
• Outlet Shutoff Valve Type: Quarter Turn Ball Valve
