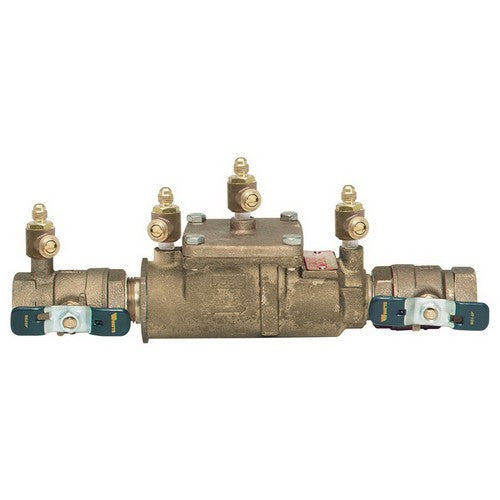

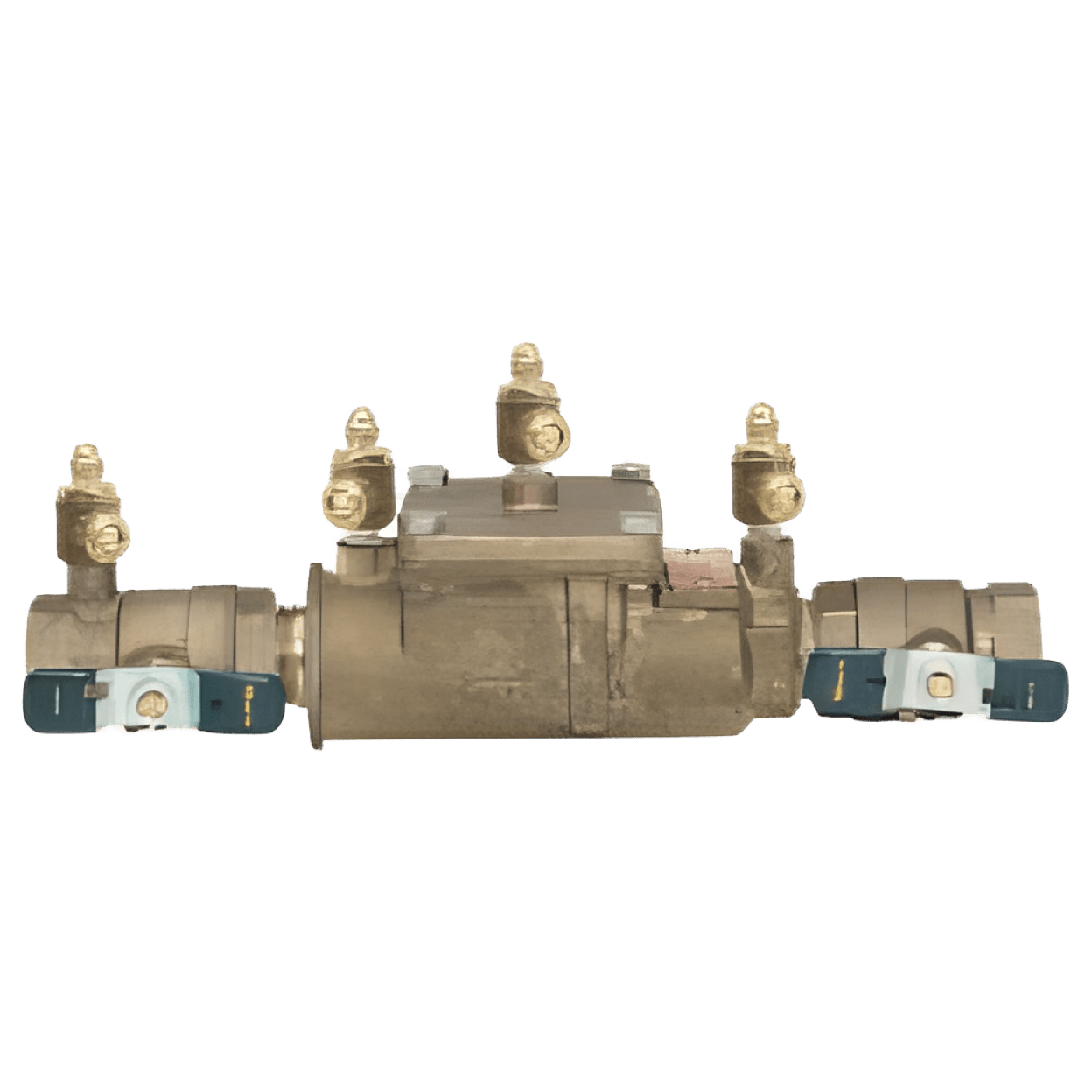

Watts LF007M3QT LF007 Double Check Valve Assembly 3/4 inch

Product Description

The Watts LF007M3QT is a lead-free double check valve assembly designed for backflow prevention in potable water systems. With a nominal size of three-quarters of an inch, it operates effectively at a pressure of one hundred seventy-five psi. This valve is constructed from cast iron, which ensures durability and resistance against corrosion.

• Lead-free construction ensures safe use in potable water applications.
• Modular design allows for easy maintenance and servicing.
• Compatible with various standards including ASSE Std. 1015 and AWWA Std. C510.

Product Highlights

The LF007 series is ideal for applications where non-health hazard cross-connections are present, making it essential for plumbing systems. It has a compact design that allows for easy installation in tight spaces.

Product Information

Standard Information

• Brand: Watts Water Technologies
• Type: Double Check Valve Assembly

Technical Specifications

• Material: Cast Iron
• Nominal Size: 3/4 inch
• Operating Pressure: 175 psi
• Temperature Rating: 33 to 180 degrees F
• Dimensions: 11-1/8 inches (A), 4 inches (B), 3-1/8 inches (C), 6-3/16 inches (F), 3-7/16 inches (G), 2-1/8 inches (R), 15/16 inches (T)
