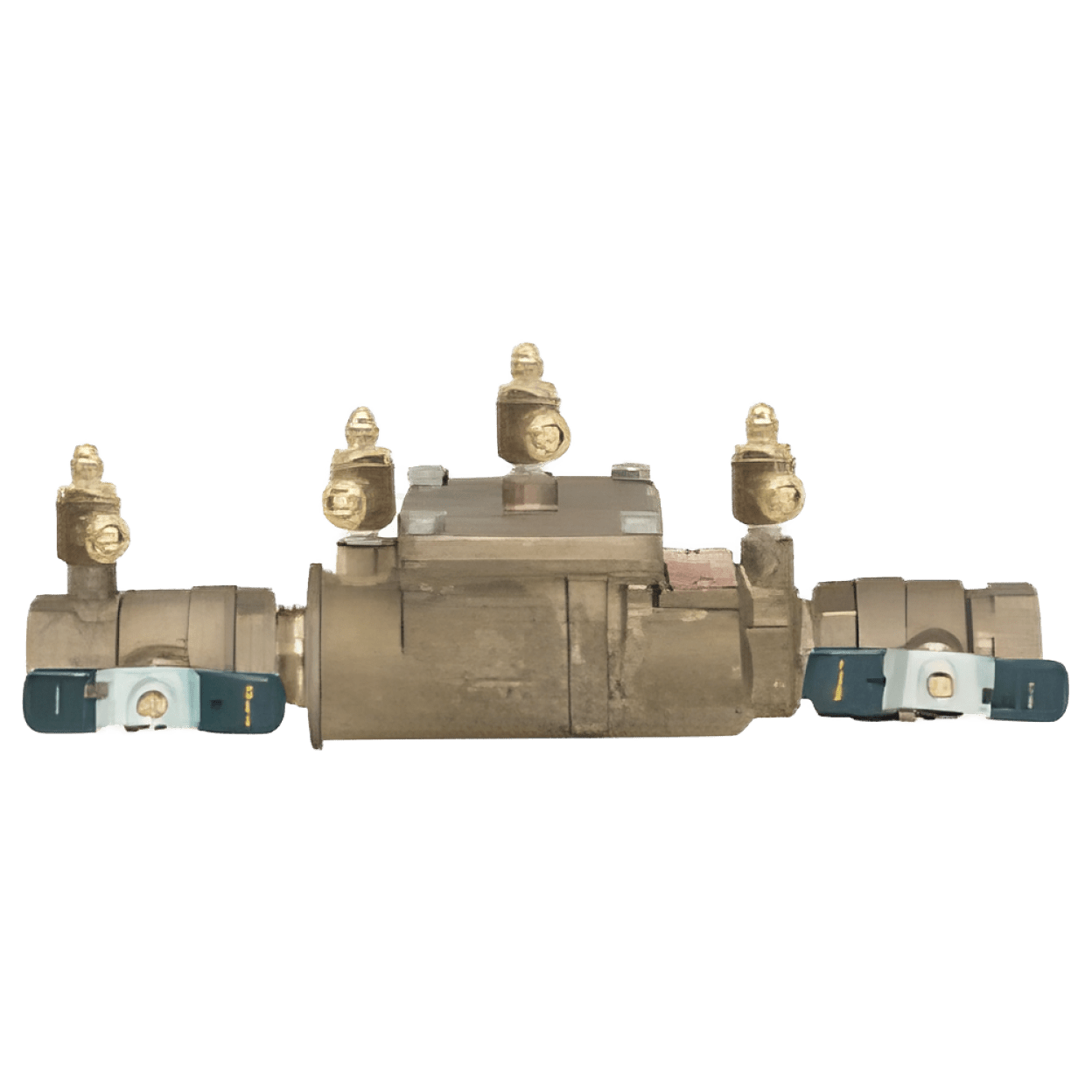

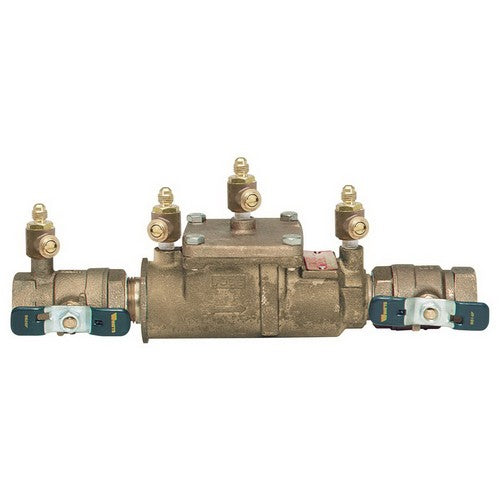

Watts LF007M1QT LF007 Double Check Valve Assembly 1 inch 175 psi

Product Description

The Watts LF007M1QT is a double check valve assembly designed for water systems. It is lead-free and ideal for preventing backflow in potable water applications. This model has a one inch nominal size and can operate under a maximum pressure of one hundred seventy-five psi. The durable construction includes a cast iron body and is compatible with quarter-turn ball valves.

• Lead-free construction for safe use in water systems
• Operates effectively at pressure up to one hundred seventy-five psi
• Modular design enables easy maintenance

Product Highlights

This valve assembly is built for reliable performance and compliance with industry standards.

Product Information

Standard Information

• Brand: Watts Water Technologies
• MPN: LF007M1QT

Technical Specifications

• Type: Lead-Free
• Nominal Size: 1 inch
• Body Material: Cast Iron
• Operating Pressure: 175 psi
• Temperature Rating: 33 to 180 Deg F
• Dimensions: Length 13.5 inches, Width 5.125 inches, Height 4 inches
