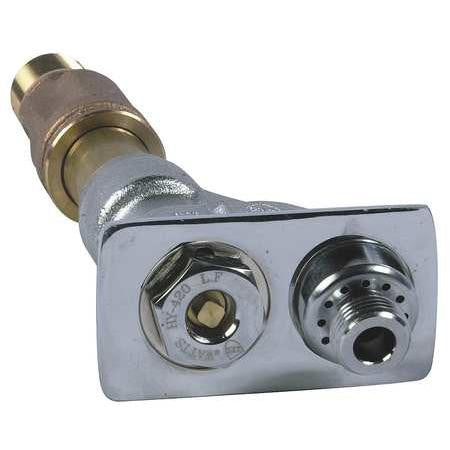

Watts HY-420-6 Wall Hydrant, Non-Freeze, Vacuum Breaker, Key Op, 6 IN Wall

Product Description

The Watts HY-420-6 non-freeze, key-operated wall hydrant features a chrome-plated face and an integral vacuum breaker. Constructed with a bronze head, seat casting, wall casing, and internal working parts, it includes a loose key. Designed for a 6-inch wall, it has a 3/4 inch MIP hose connection and a 3/4 inch FIP by 1 inch MIP pipe connection with a 125 psi maximum operating pressure.

• Non-freeze
• Key operated
• 6 inch wall
• Vacuum breaker

Product Highlights

This non-freeze wall hydrant is key operated and features a chrome plated face and bronze body. Includes an integral vacuum breaker.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: HY-420-6

Technical Specifications

• Manufacturer Part Number: HY-420-6
• Wall Thickness: 6 in
• Length: 8-13/16 In
• ASME: ASME B1.20.7
• ASSE Standards: ASSE 1019
• Color Finish Name: Chrome Plated
• End Connection 1: MPT
• End Connection 2: MGHT
• End Connections: MPT x MGHT
• Fitting Size 1: 1 in
• Fitting Size 2: 3/4 in
• Fitting Sizes: 1 in x 3/4 in
• Handle Material: Bronze
• Height: 10 in
• IAPMO Listed: Yes
• Material: Bronze
• NSF: NSF 372
• NSF Certified: Yes
• Pressure - Maximum: 125 psi
• UPC: 098268060508
• Valve Body Material: Bronze
• Valve Operator: Key
• Valve Seat Material: Bronze
• Width: 2 in
• Hose Connection: 3/4 in.(19mm)
• Pipe Connection: 3/4 in.(19mm) female x 1 in.(25mm) male
