Watts HY-420-12 Non-Freeze Wall Hydrant 12 Inch

Product Description

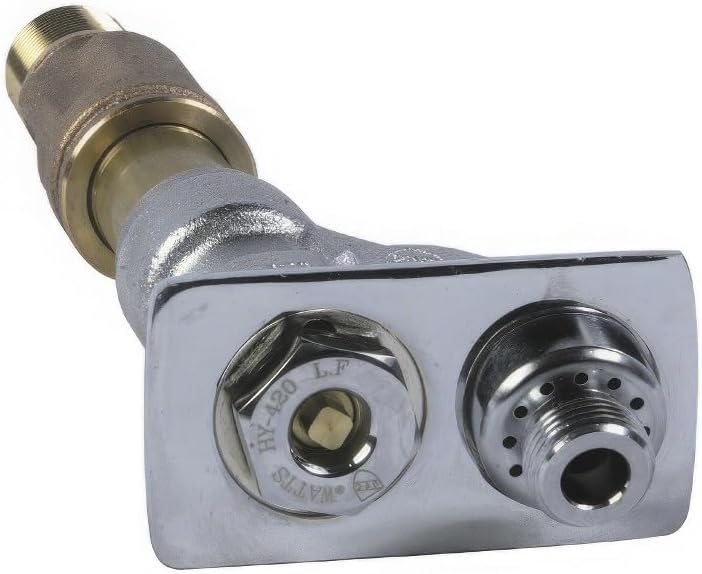

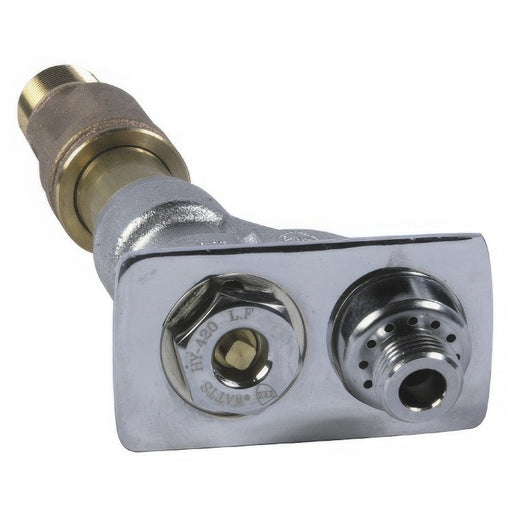

The Watts HY-420-12 non-freeze key operated wall hydrant features a chrome plated face and an integral vacuum breaker. It has a 3/4 in.(19mm) hose connection and a 3/4 in.(19mm) female x 1 in.(25mm) male pipe connection. The hydrant includes an all bronze head, seat casting and internal working parts, bronze wall casing, and a loose key. Complies with ASSE 1019-2004 and is UPC/IAMPO Listed.

• Non-freeze
• Key operated
• Integral vacuum breaker

Product Highlights

This Watts wall hydrant is ideal for preventing freezing in exposed locations. It features durable bronze components and complies with industry standards.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: HY-420-12

Technical Specifications

• Manufacturer Part Number: HY-420-12
• Wall Thickness: 12 In
• Length: 14-13/16 In
• Manufacturer: Watts
• Product type: Non-Freeze, Exposed, with Vacuum Breaker
• Material: Lead Free Brass
• Hose connection: 3/4 IN
• Pipe connection: 3/4IN FPTx1IN MPT
• Recommended wall opening: 2x4 IN
• Max. operating pressure: 125 psi
