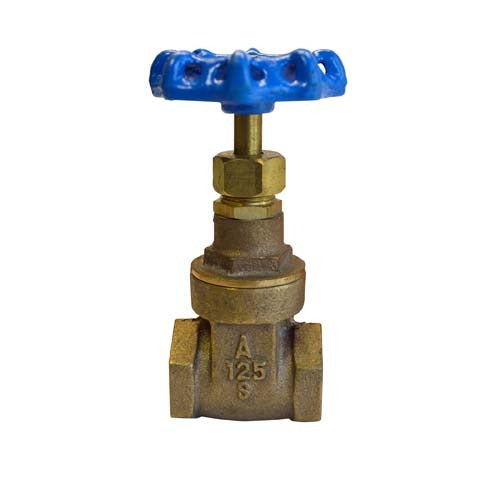

Watts Fig. 3-1/4 Gate Valve Threaded 0.75 Inches

Product Description

The WATTS FIG. 3-1/4 is a threaded gate valve sized for 0.75-inch pipe connections. Gate valves provide full-bore flow when open and positive shutoff when closed, making them a standard choice for isolation service in water supply, hydronic heating, and general plumbing systems. The threaded end connections allow direct installation into NPT-threaded pipe runs without additional fittings. Weighing 0.82 pounds, this is a compact, durable valve suited for residential and light commercial plumbing applications. Licensed plumbers and mechanical contractors are the primary installers of this type of valve.

This valve is appropriate for isolation service in potable water lines, hydronic heating circuits, and general-purpose plumbing systems where a full-bore shutoff is required. The 0.75-inch threaded configuration fits standard NPT pipe runs commonly found in residential water distribution and light commercial mechanical systems. It is not intended for throttling or flow-regulation service; gate valves are designed for fully open or fully closed operation only.

Key Features

• 0.75-inch threaded (NPT) end connections for direct installation into standard pipe runs
• Full-bore gate design provides unrestricted flow when fully open
• Positive shutoff for isolation service in water and hydronic systems
• Compact size at 0.82 pounds for easy handling in tight spaces
• Suitable for residential and light commercial plumbing applications

Compatibility

Designed as an OEM-style replacement or direct-install gate valve for 0.75-inch NPT threaded plumbing systems in residential and light commercial applications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with the International Plumbing Code (IPC) and applicable local codes. Shut off the water supply and relieve system pressure before removing or installing any valve. Use thread sealant tape or pipe dope rated for the system fluid on all threaded connections. Gate valves should be installed in the fully open or fully closed position only and are not suitable for throttling service.

Technical Specifications

• Connection Size: 0.75 inches
• Connection Type: Threaded (NPT)
• Valve Type: Gate
• Weight: 0.82 pounds

Standard Information

• Brand: WATTS
• Manufacturer Part Number: FIG. 3-1/4
