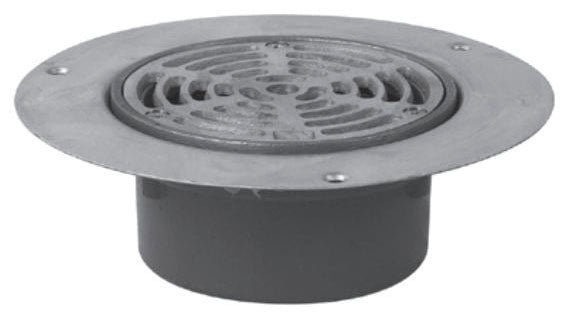

Watts FD-392-E-60-63 Floor Drain with 5 Round Heelproof Nickel Bronze Grate and PVC Socket Outlet

Product Description

The Watts FD-392-E-60-63 is a floor drain designed for general-purpose use. This model features a two-inch pipe size and a no hub outlet type. It has a round shape with a top size of five inches in diameter. The overall top size is eight inches, providing a free area size of eight square inches. The grate is made from heelproof nickel bronze, and the body is constructed from epoxy coated cast iron.

• Two-inch pipe size
• No hub outlet type
• Overall top size is eight inches

Product Highlights

This floor drain is suitable for wooden floors and complies with ASME A112.21.1M standards. It comes with a recessing securing flange and a PVC body featuring a socket outlet.

Product Information

Standard Information

• Manufacturer: Watts
• Application: General Purpose, Wooden Floor

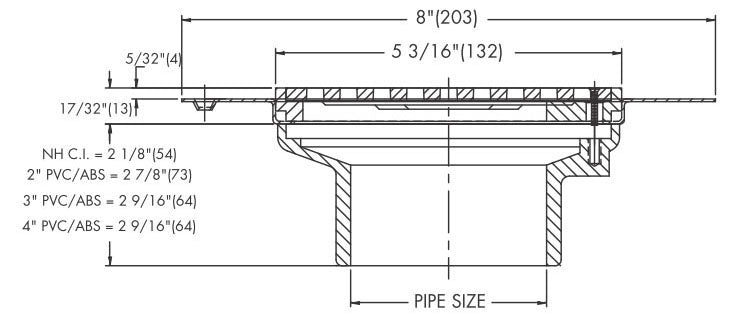

Technical Specifications

• Pipe Size: 2 Inch
• Top Shape: Round
• Top Size: 5 Inch Diameter
• Overall Top Size: 8 Inch
• Free Area Size: 8 Square Inch
• Top Material: Heelproof Nickel Bronze
• Body Material: Epoxy Coated Cast Iron
• Inclusions/Features: Grate, Recessed Securing Flange, PVC Body with Socket Outlet
