Watts FD-203P-A5 3 Inch Push-On Adjustable Floor Drain with 5 Inch Strainer

Product Description

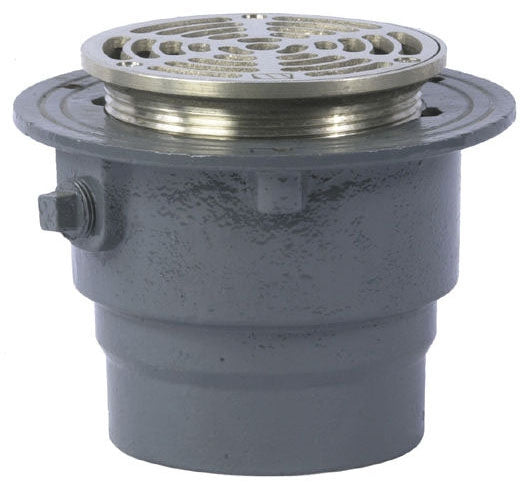

The Watts FD-203P-A5 is a 3 inch adjustable floor drain designed for use in finished areas. It features a push-on outlet and a 5 inch round heelproof nickel bronze strainer. This drain is made from epoxy coated cast iron for durability and long life.

• Adjustable design for easy installation
• Heelproof strainer prevents clogs
• Epoxy coating enhances corrosion resistance

Product Highlights

This floor drain provides reliable drainage solutions in commercial plumbing applications. It is suitable for installation in areas that require effective water management.

Product Information

Standard Information

• Manufacturer: Watts
• UPC: 000003011676

Technical Specifications

• Type: Adjustable, On-Grade
• Pipe Size: 3 Inch
• Outlet Type: Push-On
• Top Shape: Round
• Top Size: 5 Inch Diameter
• Overall Top Size: 7 Inch
• Free Area Size: 8 Square Inch
• Top Material: Heelproof Nickel Bronze
• Body Material: Epoxy Coated Cast Iron
• Application: Finished Area Floor
• Applicable Standard: ASME A112.21.1M
• Inclusions/Features: Anchor Flange, Weephole, Strainer
• Strainer Size: 7/16 Inch (Minimum), 2-1/4 Inch (Maximum)
• Outlet Size: 5-1/2 Inch
