Product Description

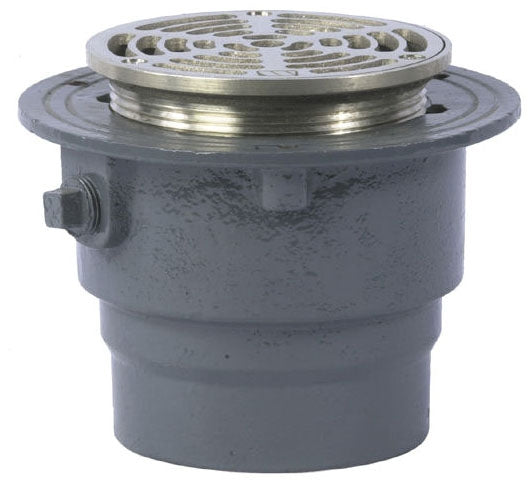

The Watts FD-202P-A8 is an adjustable floor drain designed for medium duty applications. It features a two-inch pipe size and a push-on outlet, suitable for commercial use. The round top with an eight-inch diameter and a heelproof nickel bronze strainer ensures reliable performance.
- Adjustable design for versatility
- Medium duty load classification
- Constructed from epoxy coated cast iron
Product Highlights
This floor drain is ideal for finished areas, providing efficient drainage in commercial environments.
Product Information
Standard Information
-
Manufacturer: Watts
-
Type: Adjustable
Technical Specifications
-
Pipe Size: 2 Inch
-
Outlet Type: Push-On
-
Top Shape: Round
-
Top Size: 8 Inch Diameter
-
Overall Top Size: 7 Inch
-
Body Material: Epoxy Coated Cast Iron
-
Top Material: Heelproof Nickel Bronze
-
Free Area Size: 18 Square Inch
-
Inclusions/Features: Anchor Flange, Weephole, Strainer
-
Applicable Standards: UL, ULC, USC, CSA, FM, ASSE, NSF, WQA, ASME A112.21.1M
-
Strainer Size: 3/4 Inch to 2-3/4 Inch
-
Outlet Size: 5-1/2 Inch
