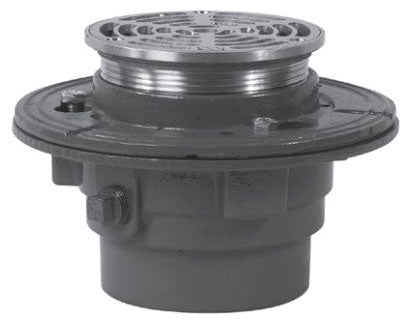

Watts FD-102P-A6 2, Push-On, Epoxy Coated Cast Iron, Medium Duty, Adjustable, Floor Drain with 6 Round Heelproof Nickel Bronze Strainer

Product Description

The Watts FD-102P-A6 is an adjustable floor drain designed for medium-duty applications. Its two-inch push-on outlet accommodates various plumbing setups. The drain features a six-inch diameter heelproof nickel bronze strainer, ensuring drainage efficiency while preventing debris from clogging the system.

• Adjustable for easy installation
• Durable epoxy coated cast iron body
• Provides superior drainage with quality materials

Product Highlights

This floor drain is ideal for finished floor areas, providing reliable drainage and easy maintenance.

Product Information

Standard Information

• UPC: 000003003404
• Manufacturer: Watts

Technical Specifications

• Type: Adjustable
• Load Classification: Medium Duty
• Pipe Size: 2 inches
• Outlet Type: Push-On
• Top Shape: Round
• Top Size: 6 inch diameter

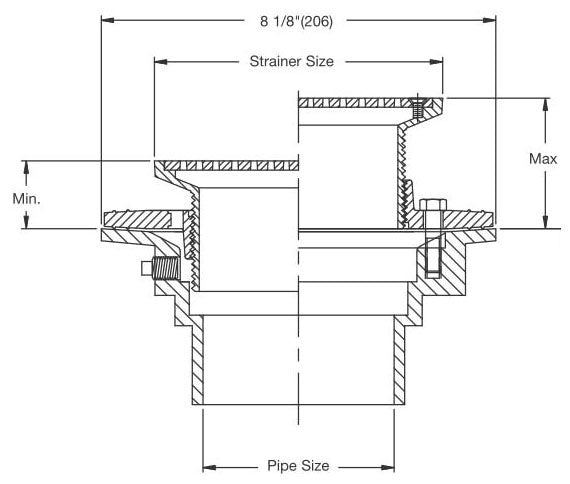

• Overall Top Size: 8-1/8 inches
• Free Area Size: 9 square inches
• Body Material: Epoxy coated cast iron
• Top Material: Heelproof nickel bronze
• Inclusions/Features: Anchor flange, reversible clamping collar with primary and secondary weephole, strainer
• Application: Finished area floor
• Applicable Standard: ASME A112.21.1M
• Strainer Size: 7/8 inch (minimum), 3-3/8 inches (maximum)
• Outlet Size: 3-5/8 inches
