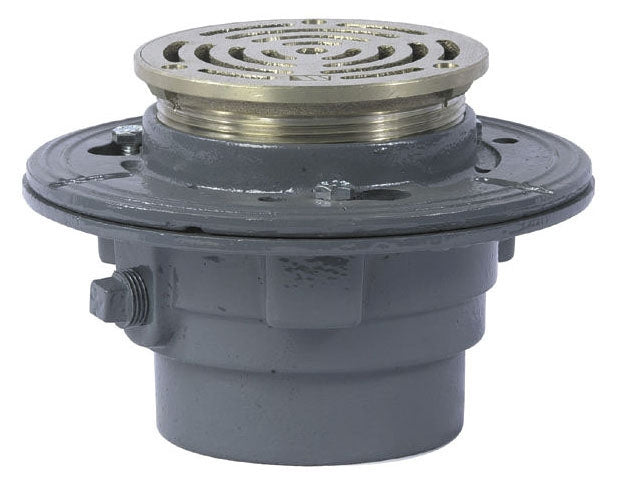

Watts FD-102-B5-4-7 2 No Hub Epoxy Coated Cast Iron Heavy Duty Adjustable Floor Drain with Replacement MPN

Product Description

The Watts FD-102-B5-4-7 is a 2-inch no hub floor drain made of epoxy coated cast iron. It features an adjustable design, catering to various installation requirements. The drain includes a five-inch round ductile iron strainer and trap primer, ensuring efficient drainage.

• Load classification: Heavy duty
• Includes a reversible clamping collar and trap primer tapping
• Standard compliant with ASME A112.21.1M

Product Highlights

This floor drain is ideal for finished areas. It is designed to maintain durability and functionality over long periods of use.

Product Information

Standard Information

• Brand: Watts
• MPN: FD-102-B5-4-7

Technical Specifications

• Type: Adjustable
• Pipe Size: 2 Inch
• Outlet Type: No Hub
• Top Shape: Round
• Top Size: 5 Inch Diameter

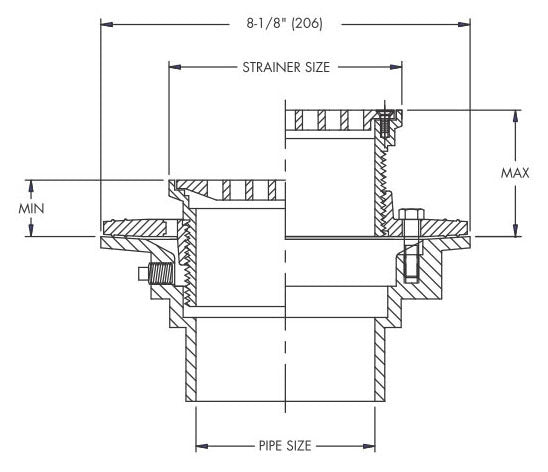

• Overall Top Size: 8-1/8 Inch
• Free Area Size: 8 Square Inch
• Top Material: Ductile Iron
• Body Material: Epoxy Coated Cast Iron
• Inclusions/Features: Anchor Flange, Reversible Clamping Collar, Trap Primer Tapping, Strainer
• Application: Finished Area Floor
• Applicable Standard: ASME A112.21.1M
• Strainer Size: 13/16 Inch (Minimum), 3-1/4 Inch (Maximum)
• Outlet Size: 3-5/8 Inch
