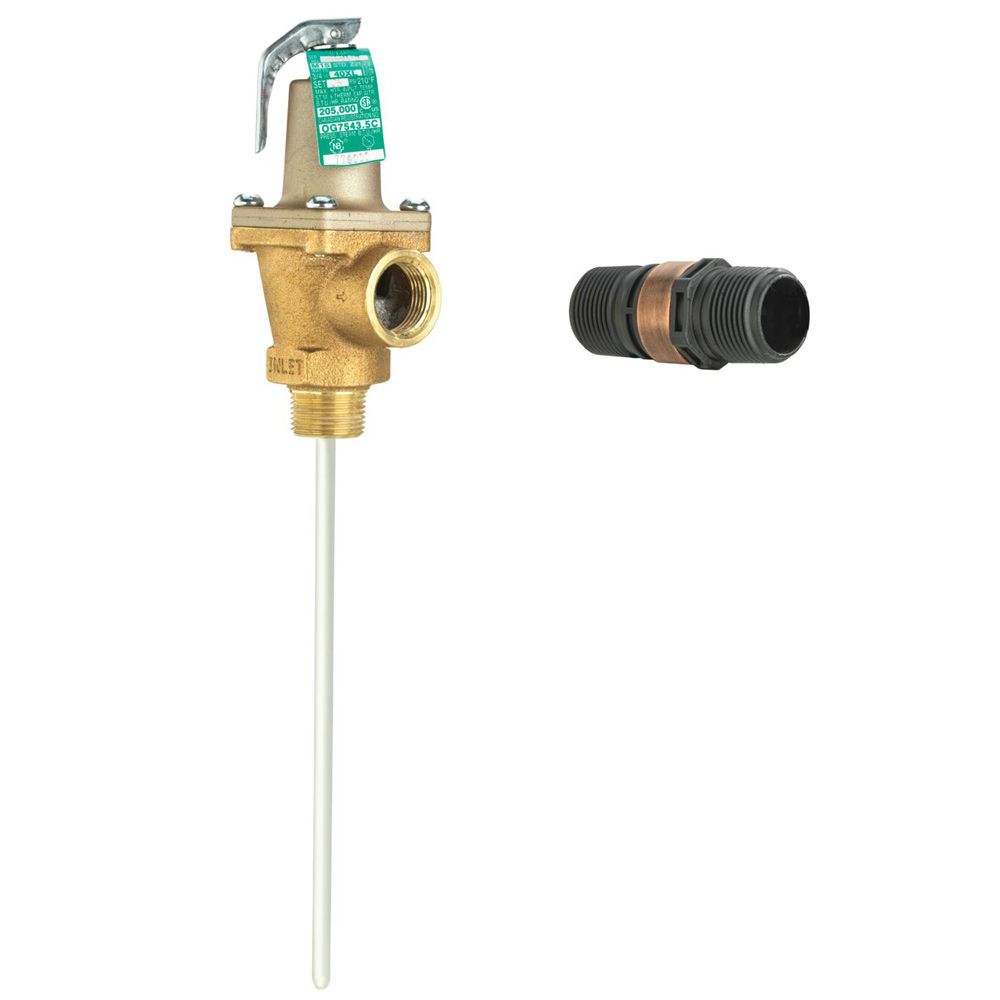

Watts F556016 LF40XL-5 Temperature and Pressure Relief Valve 3/4 Inch 150 PSI Lead-Free

Product Description

Designed by Watts, the model F556016 LF40XL-5 Temperature and Pressure Relief Valve ensures efficient protection for domestic hot water systems. Combining both temperature and pressure relief mechanisms, it is optimized for commercial water heater use.

• Lead-free bronze body ensures safe usage in potable water systems.
• Compliant with ANSI Z21.22, ensuring reliable discharge capacities.
• Features tamper-resistant bonnet screws and a 5-inch thermostat probe for easy monitoring.

Product Highlights

The valve automatically re-seats after relief events, offering repeated reliability without the need for manual reset. The MNPT x FNPT connections provide versatility in installation, while the test lever handle ensures functional integrity.

Product Information

Standard Information

• Brand: Watts
• MPN: F556016

Technical Specifications

• Material: Bronze
• Connection Size: 3/4 inch
• Connection Type: MNPT x FNPT
• Capacity: 205,000 Btu/hr CSA, 1,438,000 Btu/hr ASME
• Pressure Rating: 150 psi
• Temperature Rating: 210 degrees Fahrenheit
• Thermostat Length: 5 inches
• Dimensions: 6-1/4 inches H x 2-3/4 inches W
