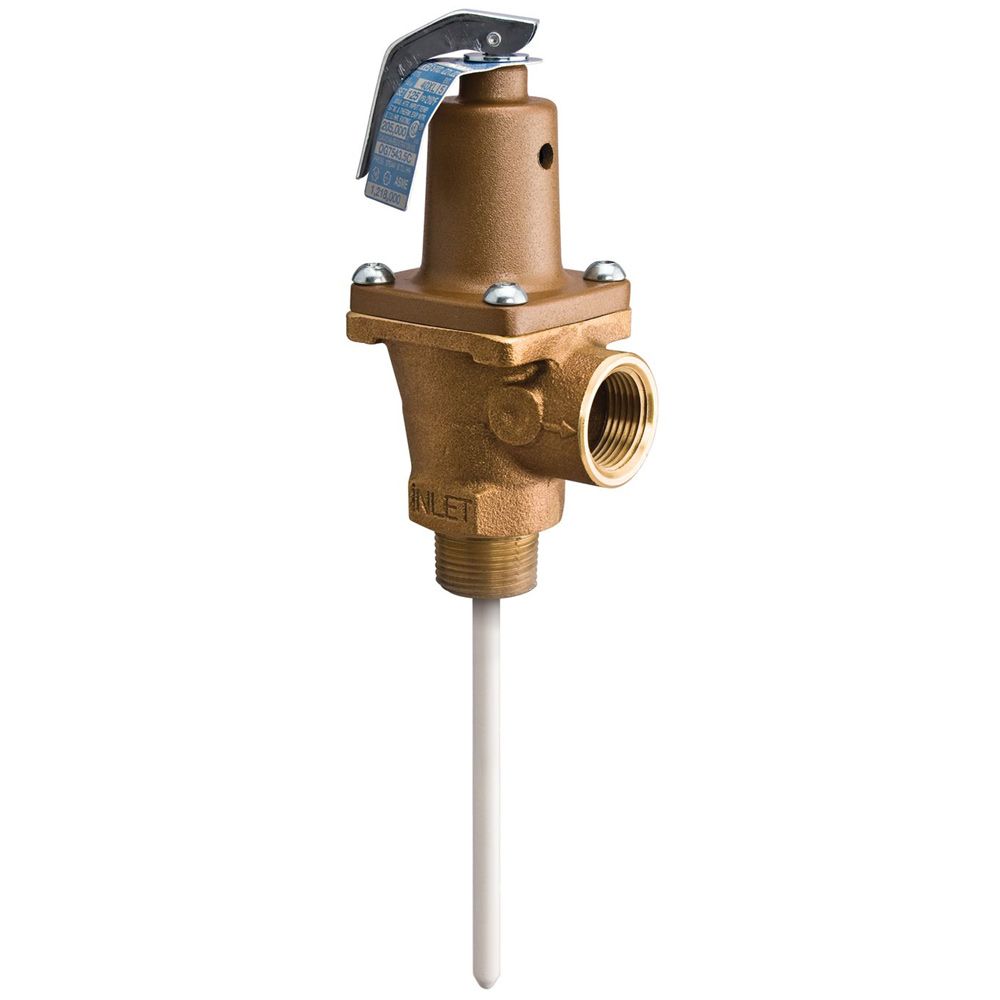

WATTS F556015 LF40XL-5 Pressure Relief Valve Bronze NPT Angle Valve Replacement 0156481

Product Description

The Watts LF40XL-5 Bronze Pressure Relief Valve, featuring a 3/4 inch NPT angle connection, is engineered for hot water systems to manage and relieve pressure up to 125 psi. This model, well-suited for water heaters, incorporates an advanced thermo-bonded coating on its thermostat probe to minimize mineral deposits.

• Set pressure at 125 psi for optimal performance
• Temperature capability up to 210 degrees Fahrenheit
• Equipped with a 5 inch thermostat extension for improved functionality

Product Highlights

Constructed from durable bronze, the valve ensures reliability and corrosion resistance, making it an ideal choice for residential water heating applications. It balances high functionality with a safety design to protect against excessive temperature and pressure levels.

Product Information

Standard Information

• Brand: Watts
• Model: LF40XL-5

Technical Specifications

• MPN: F556015
• Body Material: Bronze
• Valve Size: 3/4 Inch
• Max Pressure: 150 psi WOG
• Valve Connection: NPT
• Piping Configuration: Angle
• Valve Application: Hot Water
• Replaces: 0156481
