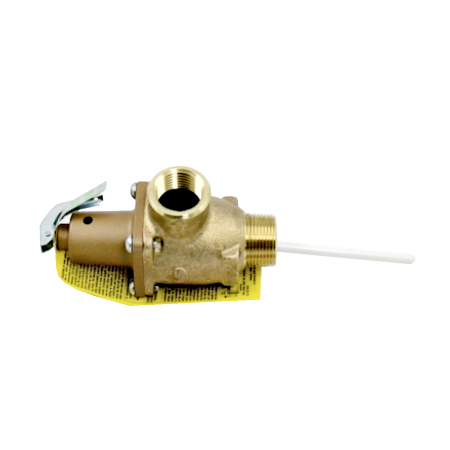

Watts F556006 1 IN LF40XL-4 Lead Free Automatic Reseating Temperature and Pressure Relief Valve, 100 psi, 210 F, 4 IN Coated Thermostat

Product Description

The WATTS F556006 lead free automatic reseating temperature and pressure relief valve has a 1 inch NPTF male inlet, 1 inch NPTF female outlet, and a 4 inch coated extension thermostat. The pressure relief setpoint is 100 psi and the temperature relief setpoint is 210 degrees F. It provides protection for hot water supply tanks and hot water heaters in commercial applications.

• Features a flood sensor with SentryPlus Alert technology to detect excessive water discharges from the relief valve
• Requires purchase of activation kit to activate sensor
• Lead free copper silicon alloy body

Product Highlights

The valve features tamper resistant bonnet screws and a test lever. The body is made of lead free copper silicon alloy.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: F556006

Technical Specifications

• Body Material: Lead Free Copper Silicon Alloy
• Brand: Watts
• Inlet Connection Size: 1 IN
• Inlet Connection Type: Male Threaded
• Inlet Thread Type: NPTF
• Lead Free: YES
• Maximum Temperature-Fahrenheit: 210
• Outlet Connection Size: 1 IN
• Outlet Connection Type: Female Threaded
• Outlet Thread Type: NPTF
• Part Number: F556006
• Pressure Relief Setting-PSI: 100
• Protection Type: Temperature And Pressure
• Series: LF40L
• Temperature Relief-Fahrenheit: 210
• Thermostat Material: Nylon Coated Copper
• Thermostat Probe Length: 4 IN
• Inlet x Outlet Connection Size: 1" M x 1" F
• Temperature Relief: 210°F (99°C)
• Pressure Relief Setting: 100 psi
