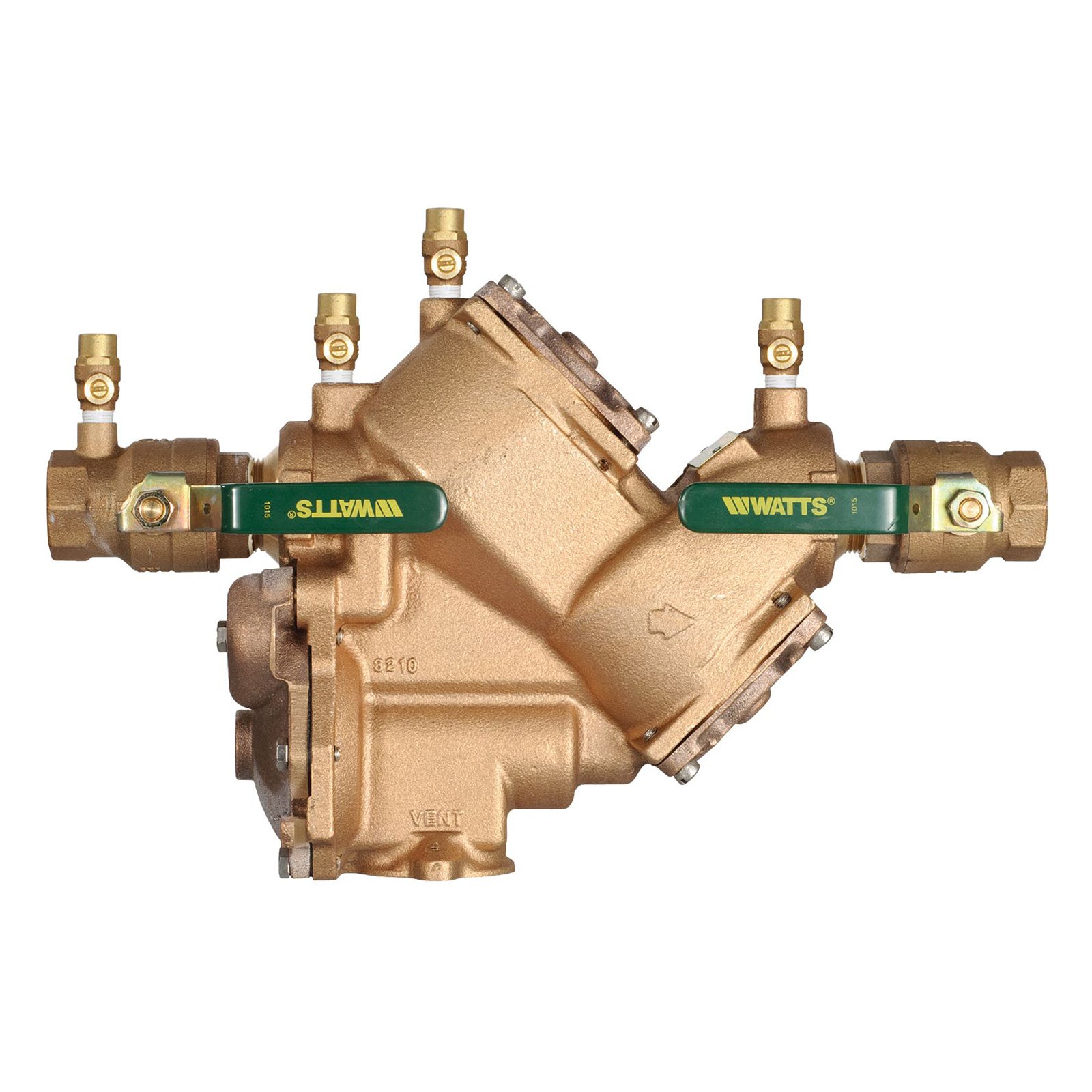

Watts F391012 Reduced Pressure Zone Assembly 2 in Nominal MNPT

Product Description

Watts F391012 is a reduced pressure zone assembly designed for backflow prevention. It features a two-inch nominal size with MNPT end style and a quarter-turn ball valve. This assembly is suited for applications requiring health hazard cross-connections, preventing contaminated water from entering the potable water supply.

• Lead-free cast copper silicon alloy body
• Capable of operating at pressures up to 175 psi
• Temperature rating spans from 33 to 110 degrees Fahrenheit

Product Highlights

This assembly meets rigorous plumbing standards and provides essential protection against backflow in continuous pressure applications.

Product Information

Standard Information

• Brand: Watts
• MPN: F391012

Technical Specifications

• Body Material: Cast Copper Silicon Alloy
• Nominal Size: 2 in
• End Style: MNPT
• Pressure Rating: 175 psi
• Temperature Rating: 33 to 110 degrees F
• Includes: (2) Shut-Off Valves, Test Cocks
• Application: Health Hazard
• Series: LF909
• Standards/Approvals: ASSE 1013, AWWA C511-92, IAPMO Listed
