WATTS F384342 740 Boiler Pressure Relief Valve 60 psi

Product Description

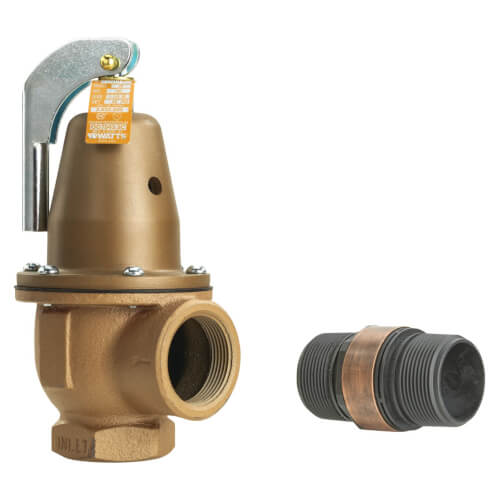

The Watts F384342 pressure relief valve is a key safety component designed for hot water space heating boiler applications. This model features a two inch NPTF female inlet and a two and a half inch NPTF female outlet with a pressure relief setpoint of sixty psi.

• Flood sensor with SentryPlus Alert technology detects excessive water discharges.
• Iron body with a forged bronze inlet for durability.
• Requires an activation kit for the flood sensor.

Product Highlights

This valve ensures safe operation by preventing excessive pressure in heating systems.

Product Information

Standard Information

• Brand: Watts
• MPN: F384342

Technical Specifications

• Body Material: Iron
• Inlet Connection Size: 2 inches
• Inlet Connection Type: Female Threaded
• Inlet Thread Type: NPTF
• Outlet Connection Size: 2 and 1/2 inches
• Outlet Connection Type: Female Threaded
• Outlet Thread Type: NPTF
• Pressure Relief Setting: 60 psi
• Capacity: 8,883,000 BTU/hr
• Application: Heating
• Temperature Range: 250°F Max
• Connection Type: Threaded
• ASME Certified: Yes
• Inlet Diameter: 2 inches
• Outlet Diameter: 2 and 1/2 inches
